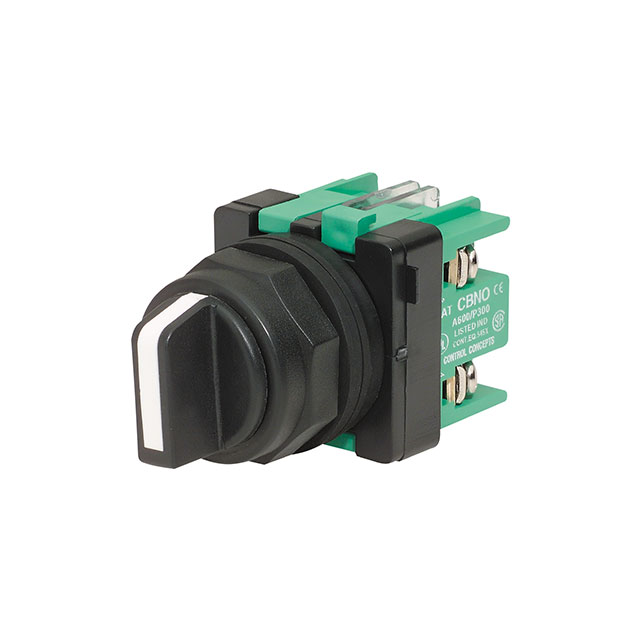

SSO3-SHWE

Active

c3controls

CONFIG SW BODY SELECT NON-ILLUM

Search across all available documentation for this part.

Active

c3controls

CONFIG SW BODY SELECT NON-ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSO3-SHWE	SSO3 Series

Actuator Type	Selector	Selector
Approval Agency	-	cULus, CSA, CE
Circuit	-	DPST-NO
Current Rating (Amps)	-	5 - 10 A
Depth Behind Flange	-	42.9 mm
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	-	IP65 - Dust Tight, Water Resistant
Mechanical Life	-	500000 Cycles
Operating Temperature	-	-40 °C
Operating Temperature	-	55 °C
Panel Cutout Dimensions [diameter]	30.2 mm	30.2 mm
Requires	Contact Block(s)	Contact Block(s)
Switch Function	-	On-Off-Off, Off-Off-On
Termination Style	-	Screw Terminal
Type	Maintained	Standard, Maintained
Voltage Rating - AC	-	72 V
Voltage Rating - DC	-	28 V

SWITCH SELECT 3POS DPST 10A 72V

Part	Illumination	Switch Function	Approval Agency	Ingress Protection	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Depth Behind Flange	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - AC	Current Rating (Amps)	Circuit	Voltage Rating - DC	Actuator Type	Requires
c3controls SSO3-SLYW-NO/NO	Non-Illuminated	Off-Off-On, On-Off-Off	CE, CSA, cULus	IP65 - Dust Tight, Water Resistant	Standard	-40 °C	55 °C	500000 Cycles	42.9 mm	30.2 mm	Screw Terminal	72 V	5 A, 10 A	DPST-NO	28 V
c3controls SSO3-SHWE-NO/NO	Non-Illuminated	Off-Off-On, On-Off-Off	CE, CSA, cULus	IP65 - Dust Tight, Water Resistant	Standard	-40 °C	55 °C	500000 Cycles	42.9 mm	30.2 mm	Screw Terminal	72 V	5 A, 10 A	DPST-NO	28 V
c3controls SSO3-SHWE	Non-Illuminated				Maintained					30.2 mm						Selector	Contact Block(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.43

General part information

Configurable Switch Body Selector Non-Illuminated
