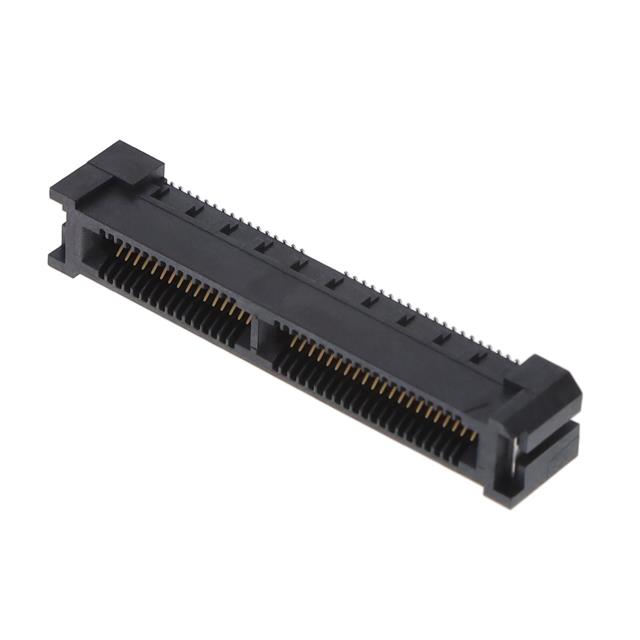

HSEC8-137-01-L-DV-A-WT-K-TR
ActiveSamtec Inc.
CONN EDGE DUAL FMALE 74POS 0.031
Deep-Dive with AI
Search across all available documentation for this part.
HSEC8-137-01-L-DV-A-WT-K-TR
ActiveSamtec Inc.
CONN EDGE DUAL FMALE 74POS 0.031
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSEC8-137-01-L-DV-A-WT-K-TR |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Beryllium Copper |
| Contact Type | Cantilever |
| Features | Solder Retention, Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 74 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.92 | |
| 25 | $ 5.35 | |||
| 50 | $ 4.97 | |||
| 100 | $ 4.74 | |||
| Tape & Reel (TR) | 275 | $ 4.74 | ||
| 550 | $ 3.73 | |||
Description
General part information
HSEC8-137 Series
74 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
