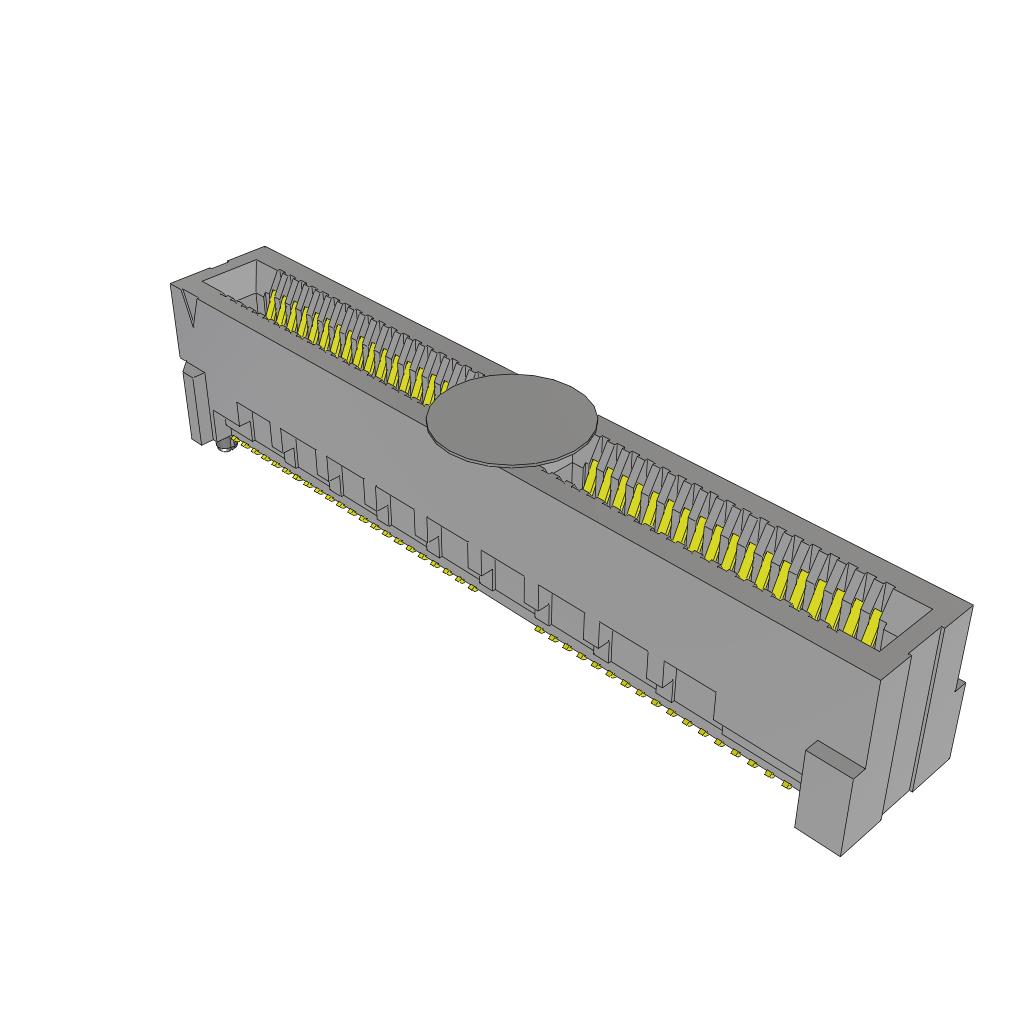

HTEC8-140-01-S-DV-A-K-TR

Active

Samtec Inc.

STANDARD CARD EDGE CONNECTORS 0.80 MM 40P RUGGED HIGH-SPEED EDGE CARD

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTEC8-140-01-S-DV-A-K-TR

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Pick and Place, Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions/Bay/Row [custom]	40
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Read Out	Dual
Termination	Solder
Termination Rows	2

HTEC8-160 Series

Standard Card Edge Connectors 0.80 mm 30P Rugged High-Speed Edge Card

Part	Read Out	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Number of Positions/Bay/Row [custom]	Number of Rows	Color	Gender	Card Type	Features	Termination	Number of Positions	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mounting Type	Material - Insulation	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
Samtec Inc. HTEC8-160-01-S-DV-A-K-TR	Dual	Gold	0.8 mm	0.031 in	0.76 Ám	30 Áin	0.062 in	1.57 mm	30	2	Black	Female	Non Specified - Dual Edge	Board Guide Pick and Place Solder Retention	Solder	60	Copper Alloy	-55 °C	125 °C	Cantilever	Surface Mount	Liquid Crystal Polymer (LCP)
Samtec Inc. HTEC8-140-01-L-DV-A-K-TR	Dual	Gold	0.8 mm	0.031 in	0.25 Ám	10 Áin	0.062 in	1.57 mm	40	2	Black	Female	PCI Express™	Board Guide Pick and Place	Solder	80	Copper Alloy	-55 °C	125 °C	Cantilever	Surface Mount	Liquid Crystal Polymer (LCP)	2
Samtec Inc. HTEC8-140-01-S-DV-A-K-TR	Dual	Gold	0.8 mm	0.031 in	0.76 Ám	30 Áin	0.062 in	1.57 mm	40	2	Black	Female	PCI Express™	Board Guide Pick and Place	Solder	80	Copper Alloy	-55 °C	125 °C	Cantilever	Surface Mount	Liquid Crystal Polymer (LCP)	2
Samtec Inc. HTEC8-150-01-S-DV-A-K-TR	Dual	Gold	0.8 mm	0.031 in	0.76 Ám	30 Áin	0.062 in	1.57 mm	50	2	Black	Female	PCI Express™	Board Guide Pick and Place	Solder	100	Copper Alloy	-55 °C	125 °C	Cantilever	Surface Mount	Liquid Crystal Polymer (LCP)	2
Samtec Inc. HTEC8-150-01-L-DV-A-K-TR	Dual	Gold	0.8 mm	0.031 in	0.25 Ám	10 Áin	0.062 in	1.57 mm		2	Black	Female	PCI Express™	Board Guide Pick and Place	Solder	100	Copper Alloy	-55 °C	125 °C	Cantilever	Surface Mount	Liquid Crystal Polymer (LCP)	2	23	27
Samtec Inc. HTEC8-120-01-S-DV-A-K-TR	Dual	Gold	0.8 mm	0.031 in	0.76 Ám	30 Áin	0.062 in	1.57 mm		2	Black	Female	PCI Express™	Board Guide Pick and Place	Solder	40	Copper Alloy	-55 °C	125 °C	Cantilever	Surface Mount	Liquid Crystal Polymer (LCP)	2	20		20	20
Samtec Inc. HTEC8-180-01-S-DV-A-K	Dual	Gold	0.8 mm	0.031 in	0.76 Ám	30 Áin	0.062 in	1.57 mm		2	Black	Female	PCI Express™	Board Guide Pick and Place	Solder	160	Copper Alloy	-55 °C	125 °C	Cantilever	Surface Mount	Liquid Crystal Polymer (LCP)	2					80
