HTEC8 Series
Standard Card Edge Connectors 0.80 mm 30P Rugged High-Speed Edge Card
Manufacturer: Samtec Inc.
Catalog
Standard Card Edge Connectors 0.80 mm 30P Rugged High-Speed Edge Card
Beta
⌘K
Standard Card Edge Connectors 0.80 mm 30P Rugged High-Speed Edge Card
Standard Card Edge Connectors 0.80 mm 30P Rugged High-Speed Edge Card
Standard Card Edge Connectors 0.80 mm 30P Rugged High-Speed Edge Card
| Part | Gender | Card Thickness | Contact Type | Termination | Read Out | Card Type | Pitch | Number of Rows | Number of Positions | Color | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish | Features | Contact Material | Contact Finish Thickness | Mounting Type | Material - Insulation | Termination Rows | Number of Bay |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

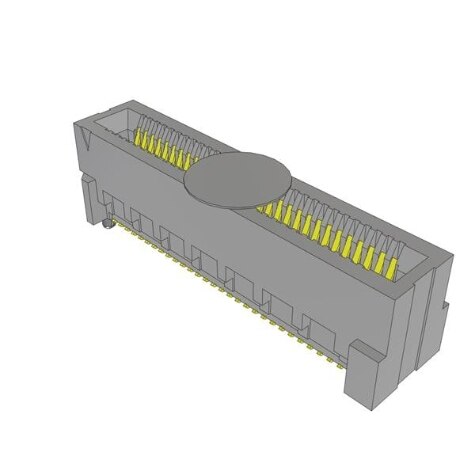

 Samtec Inc. | Female | 0.062 in | Cantilever | Solder | Dual | Dual Edge Non Specified | 0.031 in | 2 | 30 60 | Black | 125 °C | -55 °C | Gold | Board Guide Pick and Place Solder Retention | Copper Alloy | 30 µin | Surface Mount | LCP Liquid Crystal Polymer | ||
 Samtec Inc. | Female | 0.062 in | Cantilever | Solder | Dual | Dual Edge Non Specified | 0.031 in | 2 | 30 60 | Black | 125 °C | -55 °C | Gold | Board Guide Pick and Place | Copper Alloy | 10 Ąin | Surface Mount | |||

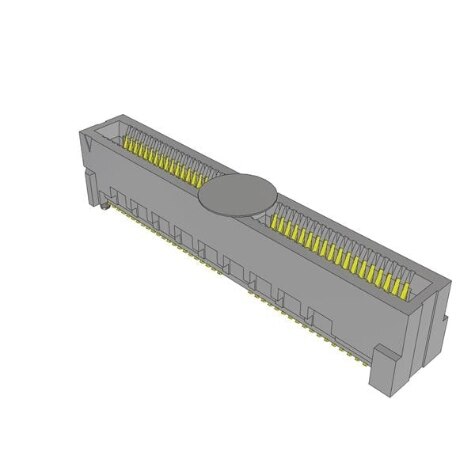

 Samtec Inc. | Female | 0.062 in | Cantilever | Solder | Dual | PCI Express™ | 0.031 in | 2 | 40 80 | Black | 125 °C | -55 °C | Gold | Board Guide Pick and Place | Copper Alloy | 10 Ąin | Surface Mount | LCP Liquid Crystal Polymer | 2 rows | |

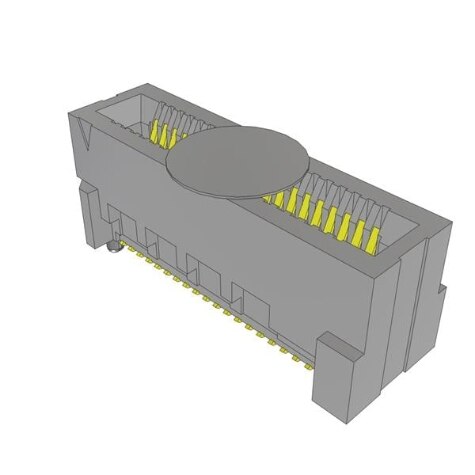

 Samtec Inc. | Female | 0.062 in | Cantilever | Solder | Dual | PCI Express™ | 0.031 in | 2 | 20 40 | Black | 125 °C | -55 °C | Gold | Board Guide Pick and Place | Copper Alloy | 10 Ąin | Surface Mount | |||
 Samtec Inc. | Female | 0.062 in | Cantilever | Solder | Dual | PCI Express™ | 0.031 in | 2 | 40 80 | Black | 125 °C | -55 °C | Gold | Board Guide Pick and Place | Copper Alloy | 30 µin | Surface Mount | LCP Liquid Crystal Polymer | 2 rows | |
 Samtec Inc. | Female | 0.062 in | Cantilever | Solder | Dual | PCI Express™ | 0.031 in | 2 | 100 200 | Black | 125 °C | -55 °C | Gold | Board Guide Pick and Place | Copper Alloy | 10 Ąin | Surface Mount | |||
 Samtec Inc. | Female | 0.062 in | Cantilever | Solder | Dual | PCI Express™ | 0.031 in | 2 | 50 100 | Black | 125 °C | -55 °C | Gold | Board Guide Pick and Place | Copper Alloy | 30 µin | Surface Mount | LCP Liquid Crystal Polymer | 2 rows | |
 Samtec Inc. | Female | 0.062 in | Cantilever | Solder | Dual | PCI Express™ | 0.031 in | 2 | 23 100 | Black | 125 °C | -55 °C | Gold | Board Guide Pick and Place | Copper Alloy | 10 Ąin | Surface Mount | LCP Liquid Crystal Polymer | 2 rows | 27 |
 Samtec Inc. | Female | 0.062 in | Cantilever | Solder | Dual | Dual Edge Non Specified | 0.031 in | 2 | 30 60 | Black | 125 °C | -55 °C | Gold | Board Guide Pick and Place | Copper Alloy | 10 Ąin | Surface Mount | |||
 Samtec Inc. | Female | 0.062 in | Cantilever | Solder | Dual | PCI Express™ | 0.031 in | 2 | 20 40 | Black | 125 °C | -55 °C | Gold | Board Guide Pick and Place | Copper Alloy | 30 µin | Surface Mount | LCP Liquid Crystal Polymer | 2 rows |
