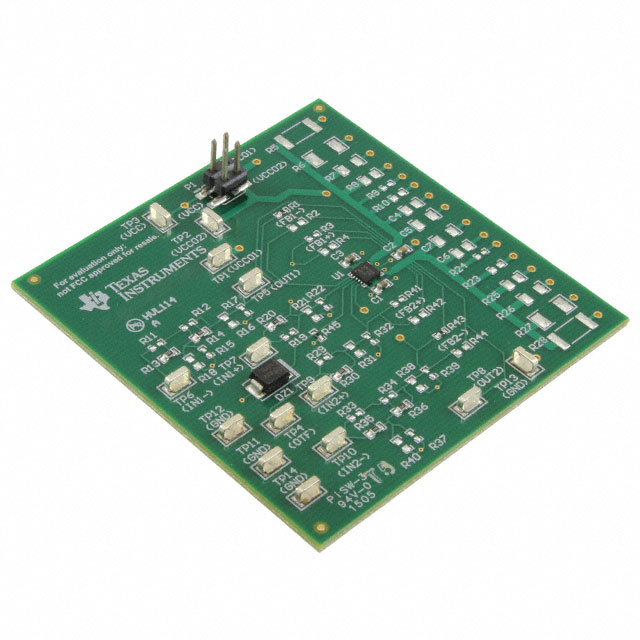

ALM2402Q1EVM

Active

Texas Instruments

EVAL MODULE ALM2402Q1

Find alt

Alpha

ALM2402Q1EVM

Active

Texas Instruments

EVAL MODULE ALM2402Q1

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

ALM2402 Series

The ALM2402-Q1 is a dual high voltage, high current op-amp with protection features that are optimal for driving low impedances and/or high ESR capacitive loads. ALM2402-Q1 operates with single or split power supplies from 5.0 V to 16 V and can output up to 400 mA DC.

Each op-amp includes over-temperature flag/shut-down. It also includes separate supply pins for each output stage that allow the user to apply a lower voltage on the output to limit the Voh and henceforth the on-chip power dissipation.

The ALM2402 is packaged in a 12 pin leadless DRR package and 14 pin leaded HTSSOP (preview). Both include a thermally conductive power pad that facilitates heat sinking. The very low thermal impedance of these packages enable optimal current drive with minimal die temperature increase. Providing customers with the ability to drive high currents in harsh temperature conditions. Maximum power dissipation can be determined in the figure below.

Technical Specifications

Parameters and characteristics for this part

Specification	ALM2402Q1EVM

Amplifier Type	General Purpose, Standard (General Purpose)
Board Type	Fully Populated
Channels per IC (Count)	2
Channels per IC (Dual)	2
Channels per IC (Type)	Dual
Contents	Board
Current - Output / Channel	400 mA
Current - Supply (Main IC)	0.005 mA
Gain Bandwidth Product	600 kHz
Output Type	Single-Ended
Slew Rate	0.17 V/µs
Supplied Contents	Board(s)
Supply Configuration	Dual, Single
Utilized IC / Part	ALM2402-Q1
Voltage - Supply (Dual) Maximum (Magnitude)	8 V
Voltage - Supply (Dual) Minimum (Magnitude)	2.25 V
Voltage - Supply (Single) Maximum	16 V
Voltage - Supply (Single) Minimum	4.5 V

ALM2402 Series

Dual operational amplifier with high current output

Part	Package Length	Package Name	Package Width	Current - Input Bias	Slew Rate	Current - Supply	Current - Output / Channel	Gain Bandwidth Product	Number of Circuits	Amplifier Type	Operating Temperature (Min)	Operating Temperature (Max)	Grade	Output Type	Voltage - Input Offset	Voltage - Supply Span (Min)	Mounting Type	Voltage - Supply Span (Max)	Qualification	Supplied Contents	Supply Configuration	Voltage - Supply (Single) Minimum	Voltage - Supply (Single) Maximum	Current - Supply (Main IC)	Board Type	Contents	Channels per IC (Dual)	Channels per IC (Type)	Channels per IC (Count)	Voltage - Supply (Dual) Maximum (Magnitude)	Voltage - Supply (Dual) Minimum (Magnitude)	Utilized IC / Part	Package / Case
Texas Instruments ALM2402QPWPRQ1	0.173 in	14-HTSSOP 14-PowerTSSOP	4.4 mm	1.5 nA	0.17 V/µs	5 mA	400 mA	600 kHz	2	Power	-40 °C	150 °C	Automotive	Rail-to-Rail	1 mV	4.5 V	Surface Mount	16 V	AEC-Q100
Texas Instruments ALM2402FQ1EVM					3.4 V/µs		400 mA 750 mA	2.1 MHz		Power Standard (General Purpose)				Rail-to-Rail Single-Ended						Board(s)	Dual Single	4.5 V	16 V	0.004 mA	Fully Populated	Board	2	Dual	2	8 V	2.25 V	ALM2402F-Q1
Texas Instruments ALM2402Q1EVM					0.17 V/µs		400 mA	600 kHz		General Purpose Standard (General Purpose)				Single-Ended						Board(s)	Dual Single	4.5 V	16 V	0.005 mA	Fully Populated	Board	2	Dual	2	8 V	2.25 V	ALM2402-Q1
Texas Instruments ALM2402QDRRRQ1	3 mm	12-WSON	3 mm	1.5 nA	0.17 V/µs	5 mA	400 mA	600 kHz	2	Power	-40 °C	125 °C	Automotive	Rail-to-Rail	1 mV	4.5 V	Surface Mount	16 V	AEC-Q100														12-WFDFN Exposed Pad
Texas Instruments ALM2402FQPWPRQ1	0.173 in	14-HTSSOP 14-PowerTSSOP	4.4 mm	3.5 nA	3.4 V/µs	4 mA	750 mA	2.1 MHz	2	Power	-40 °C	125 °C	Automotive	Rail-to-Rail	1 mV	4.5 V	Surface Mount	16 V	AEC-Q100

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
