Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-IFP045V1 | IPS1025 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Current - Output (Max) | - | 2.4 - 5 A |
| Fault Protection | - | UVLO, Reverse Current, Over Temperature, Open Load Detect, Current Limiting (Adjustable), Current Limiting (Fixed), Over Load, Short Circuit, Over Voltage |
| Function | Driver | Driver |
| Input Type | - | Non-Inverting |
| Interconnect System | ST Morpho, Arduino R3 Shield | ST Morpho, Arduino R3 Shield |
| Interface | - | Logic, On/Off |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Output Configuration | - | High Side |
| Output Type | - | N-Channel |
| Package / Case | - | 7.5 mm |
| Package / Case | - | 24-PowerBSOP, 48-VFQFN Exposed Pad |
| Package / Case | - | 0.295 in |
| Platform | Nucleo | Nucleo |
| Ratio - Input:Output | - | 1:1 |
| Rds On (Typ) | - | 12 mOhm |
| Suggested Programming Environment | STM32Cube | STM32Cube |
| Supplier Device Package | - | PowerSSO-24, 48-QFN (8x6) |
| Switch Type | - | General Purpose |
| Type | Power Management | Power Management |
| Utilized IC / Part | IPS1025H | IPS1025H-32, IPS1025HF, IPS1025H |
| Voltage - Load | - | 60 V |
| Voltage - Load | - | 8.65 V |
| Voltage - Supply (Vcc/Vdd) | - | 8 - 8.65 V |
| Voltage - Supply (Vcc/Vdd) | - | 60 V |
| Voltage - Supply (Vcc/Vdd) | - | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.75 | |
IPS1025 Series
Industrial digital output expansion board based on IPS1025H in a QFN48L package
| Part | Interconnect System | Function | Platform | Utilized IC / Part | Suggested Programming Environment | Type | Contents | Number of Outputs | Switch Type | Output Configuration | Fault Protection | Output Type | Supplier Device Package | Interface | Ratio - Input:Output [custom] | Current - Output (Max) [Max] | Input Type | Rds On (Typ) | Mounting Type | Package / Case [y] | Package / Case | Package / Case [y] | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Voltage - Supply (Vcc/Vdd) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-OUT15A1 | |||||||||||||||||||||||||||
STMicroelectronics IPS1025HFTR | |||||||||||||||||||||||||||
STMicroelectronics IPS1025HTR-32 | |||||||||||||||||||||||||||
STMicroelectronics STEVAL-IFP046V1 | Arduino R3 Shield, ST Morpho | Driver | Nucleo | IPS1025H-32 | STM32Cube | Power Management | Board(s) | ||||||||||||||||||||
STMicroelectronics IPS1025HTR-32 | 1 | General Purpose | High Side | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO | N-Channel | PowerSSO-24 | Logic | 1:1 | 5 A | Non-Inverting | 12 mOhm | Surface Mount | 7.5 mm | 24-PowerBSOP | 0.295 in | 8 V | 60 V | ||||||||||
STMicroelectronics IPS1025HTR | |||||||||||||||||||||||||||
STMicroelectronics STEVAL-IFP046V1 | |||||||||||||||||||||||||||
STMicroelectronics IPS1025HFQ | 1 | General Purpose | High Side | Current Limiting (Fixed), Over Load, Over Temperature, UVLO | N-Channel | 48-QFN (8x6) | Logic | 1:1 | 2.4 A | Non-Inverting | 12 mOhm | Surface Mount | 48-VFQFN Exposed Pad | 60 V | 8.65 V | ||||||||||||
STMicroelectronics STEVAL-IFP040V1 | |||||||||||||||||||||||||||
STMicroelectronics X-NUCLEO-OUT15A1 | Arduino R3 Shield, ST Morpho | Driver | Nucleo | IPS1025HF | STM32Cube | Power Management | Board(s) | ||||||||||||||||||||
STMicroelectronics STEVAL-IFP046V1 | |||||||||||||||||||||||||||
STMicroelectronics IPS1025HFTR | |||||||||||||||||||||||||||
STMicroelectronics IPS1025HTR | |||||||||||||||||||||||||||
STMicroelectronics IPS1025HFQ | |||||||||||||||||||||||||||
STMicroelectronics IPS1025HTR-32 | |||||||||||||||||||||||||||
STMicroelectronics IPS1025HFTR | 1 | General Purpose | High Side | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit, UVLO | N-Channel | PowerSSO-24 | On/Off | 1:1 | Non-Inverting | 12 mOhm | Surface Mount | 7.5 mm | 24-PowerBSOP | 0.295 in | 8.65 V | 60 V | |||||||||||
STMicroelectronics IPS1025HTR | 1 | General Purpose | High Side | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO | N-Channel | PowerSSO-24 | Logic | 1:1 | 5 A | Non-Inverting | 12 mOhm | Surface Mount | 7.5 mm | 24-PowerBSOP | 0.295 in | 8 V | 60 V | ||||||||||
STMicroelectronics STEVAL-IFP040V1 | Arduino R3 Shield, ST Morpho | Driver | Nucleo | IPS1025HF | STM32Cube | Power Management | Board(s) | ||||||||||||||||||||
STMicroelectronics X-NUCLEO-OUT15A1 | |||||||||||||||||||||||||||
STMicroelectronics IPS1025HFQ | |||||||||||||||||||||||||||
STMicroelectronics IPS1025HTR | |||||||||||||||||||||||||||
STMicroelectronics IPS1025HFTR | |||||||||||||||||||||||||||
STMicroelectronics STEVAL-IFP045V1 | |||||||||||||||||||||||||||
STMicroelectronics STEVAL-IFP045V1 | Arduino R3 Shield, ST Morpho | Driver | Nucleo | IPS1025H | STM32Cube | Power Management | Board(s) |
Description
General part information
IPS1025 Series

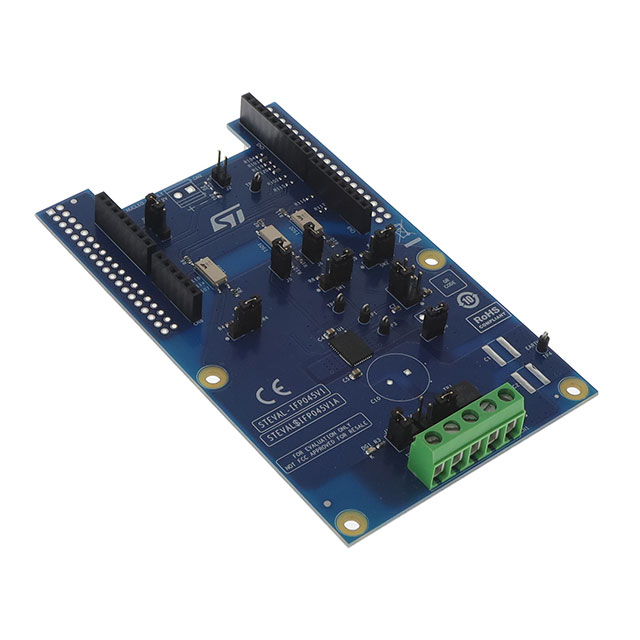

The STEVAL-IFP045V1 is an industrial digital output expansion board. It provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS1025H single high-side smart power solid state relay, in a digital output module connected to 2.5 A industrial loads.
The STEVAL-IFP045V1 can interface with the microcontroller on the STM32 Nucleo via 5 kV optocouplers driven by GPIO pins and Arduino R3 connectors.
The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board.
