DX07W024JA2R1000
ActiveJAE Electronics

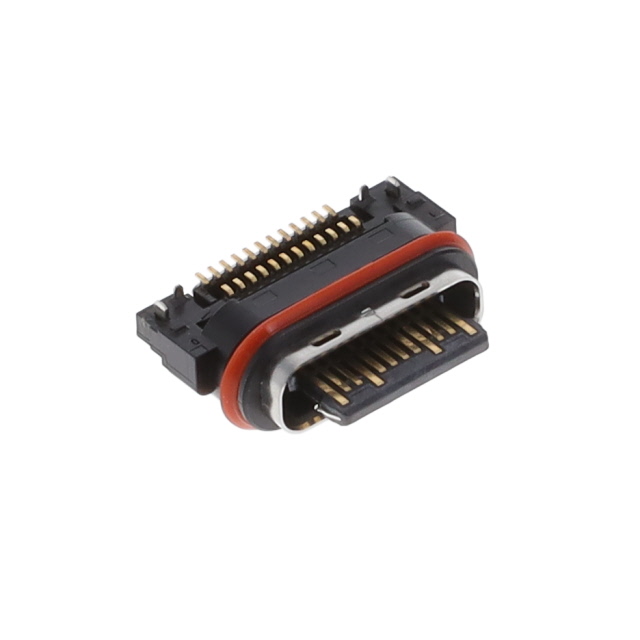

CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DX07W024JA2R1000
ActiveJAE Electronics
CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DX07W024JA2R1000 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 6.25 A, 5 A, 1.25 A, 0.25 A |
| Features | Board Guide |
| Gender | Receptacle |
| Ingress Protection | IPX8 - Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Board Edge, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 48 V |
