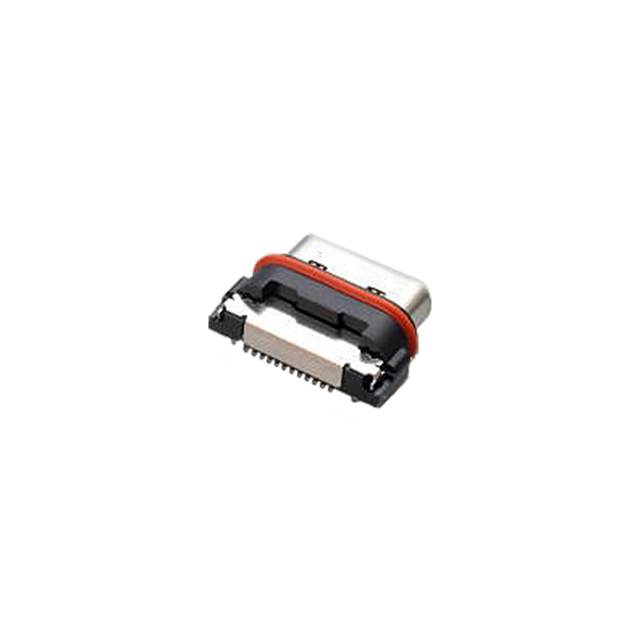

DX07W024JA1R1000
ActiveJAE Electronics
CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DX07W024JA1R1000
ActiveJAE Electronics
CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DX07W024JA1R1000 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 6.25 A, 5 A, 1.25 A, 0.25 A |
| Features | Board Guide |
| Gender | Receptacle |
| Ingress Protection | IPX8 - Waterproof |
| Insulation Color | Black |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Board Edge, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Voltage - Rated | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.19 | |
| 10 | $ 3.81 | |||
| 25 | $ 3.61 | |||
| 50 | $ 3.52 | |||
| 100 | $ 3.36 | |||
| 250 | $ 2.94 | |||
| 500 | $ 2.85 | |||
| Digi-Reel® | 1 | $ 4.19 | ||
| 10 | $ 3.81 | |||
| 25 | $ 3.61 | |||
| 50 | $ 3.52 | |||
| 100 | $ 3.36 | |||
| 250 | $ 2.94 | |||
| 500 | $ 2.85 | |||
| Tape & Reel (TR) | 1000 | $ 2.43 | ||
| 2000 | $ 2.35 | |||
| 3000 | $ 2.26 | |||
Description
General part information
DX07W024 Series
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Surface Mount, Right Angle
