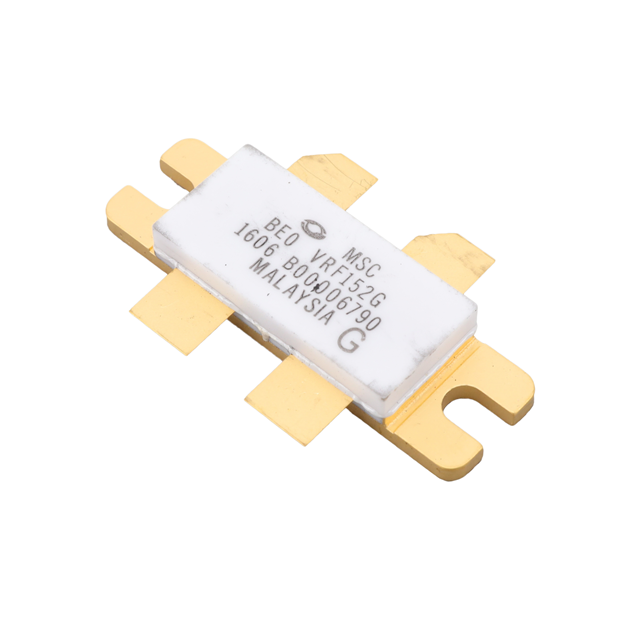

VRF152G
ActiveMicrochip Technology
RF MOSFET 50V 175M
Deep-Dive with AI
Search across all available documentation for this part.
VRF152G
ActiveMicrochip Technology
RF MOSFET 50V 175M
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VRF152G | RF-MOSFET-140V Series |
|---|---|---|
| - | - | |
| Configuration | 2 N-Channel (Dual) | 2 N-Channel (Dual), N-Channel |
| Current - Test | - | 250 mA |
| Current Rating (Amps) | 50 µA | 50 µA |
| Frequency | 175 MHz | 175 MHz |
| Gain | 16 dB | 14 - 16 dB |
| Package / Case | SOT-262A1 | SOT-262A1, M174 |
| Power - Output | 300 W | 150 - 300 W |
| Supplier Device Package | - | M174 |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Voltage - Rated | 130 V | 130 V |
| Voltage - Test | 50 V | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 174.58 | |
| Microchip Direct | PIZZA BOX | 1 | $ 174.58 | |
| 100 | $ 147.73 | |||
| 250 | $ 141.00 | |||
| 500 | $ 137.18 | |||
| 1000 | $ 133.34 | |||
| 5000 | $ 127.58 | |||
RF-MOSFET-140V Series
140V RF MOSFET
| Part | Gain | Technology | Voltage - Rated | Current Rating (Amps) | Power - Output | Configuration | Frequency | Package / Case | Voltage - Test | Current - Test | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology VRF152G | 16 dB | MOSFET (Metal Oxide) | 130 V | 50 µA | 300 W | 2 N-Channel (Dual) | 175 MHz | SOT-262A1 | 50 V | ||
Microchip Technology VRF152GMP | |||||||||||
Microchip Technology VRF152GMP | |||||||||||
Microchip Technology VRF152 | 14 dBi | MOSFET (Metal Oxide) | 130 V | 50 µA | 150 W | N-Channel | 175 MHz | M174 | 50 V | 250 mA | M174 |
Microchip Technology VRF152MP | 14 dBi | MOSFET (Metal Oxide) | 130 V | 50 µA | 150 W | N-Channel | 175 MHz | M174 | 50 V | 250 mA | M174 |
Microchip Technology VRF152MP |
Description
General part information
RF-MOSFET-140V Series
The VRF family of RF MOSFETs includes improved replacements for
industry-standard RF transistors. They provide improved ruggedness by
increasing the Bvdss over 30 percent from the industry-standard 125V to 170V
