SEAM8-40-S05.0-S-04-3

Active

Samtec Inc.

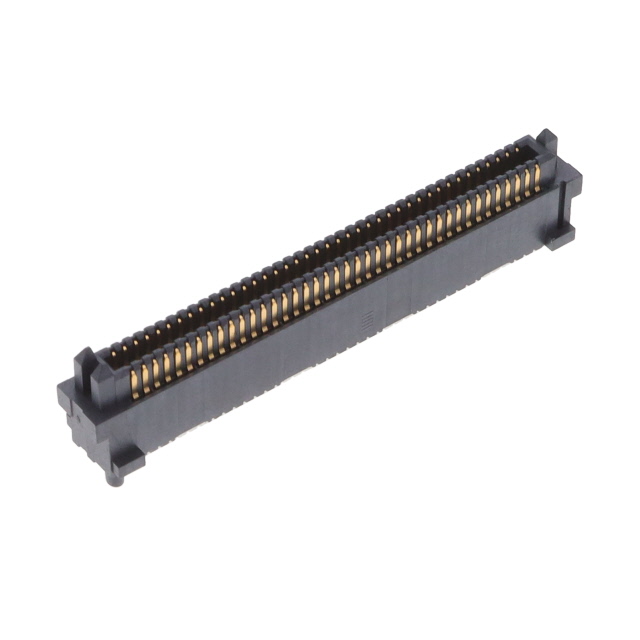

CONN HD ARRAY PLUG 0.8MM 4X40POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAM8-40-S05.0-S-04-3

Active

Samtec Inc.

CONN HD ARRAY PLUG 0.8MM 4X40POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM8-40-S05.0-S-04-3

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board	0.297 in
Height Above Board	7.54 mm
Mated Stacking Heights	10 mm
Mounting Type	Surface Mount
Number of Positions	160
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

SEAM8-40 Series

Part	Height Above Board [z]	Height Above Board [z]	Number of Rows	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Number of Positions	Height Above Board	Height Above Board
Samtec Inc. SEAM8-40-S02.0-S-08-2-K	4.55 mm	0.179 in	8	Board Guide Pick and Place	0.76 Ám	30 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	320
Samtec Inc. SEAM8-40-S02.0-S-04-2-K-GP	4.55 mm	0.179 in		Board Guide Mating Flange Pick and Place	0.76 Ám	30 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	160
Samtec Inc. SEAM8-40-S02.0-S-04-2-K	4.55 mm	0.179 in		Board Guide Pick and Place	0.76 Ám	30 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	160
Samtec Inc. SEAM8-40-S05.0-S-08-2			8	Board Guide	0.76 Ám	30 Áin	High Density Array Male	10 mm	0.8 mm	0.031 in	Surface Mount	Gold	320	0.297 in	7.54 mm
Samtec Inc. SEAM8-40-S02.0-L-10-3	4.55 mm	0.179 in	10	Board Guide	0.25 Ám	10 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	400
Samtec Inc. SEAM8-40-S05.0-S-04-3				Board Guide	0.76 Ám	30 Áin	High Density Array Male	10 mm	0.8 mm	0.031 in	Surface Mount	Gold	160	0.297 in	7.54 mm
Samtec Inc. SEAM8-40-S02.0-S-06-3	4.55 mm	0.179 in	6	Board Guide	0.76 Ám	30 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	240
Samtec Inc. SEAM8-40-S05.0-S-04-2				Board Guide	0.76 Ám	30 Áin	High Density Array Male	10 mm	0.8 mm	0.031 in	Surface Mount	Gold	160	0.297 in	7.54 mm
Samtec Inc. SEAM8-40-S05.0-S-10-2			10	Board Guide	0.76 Ám	30 Áin	High Density Array Male	10 mm	0.8 mm	0.031 in	Surface Mount	Gold	400	0.297 in	7.54 mm
Samtec Inc. SEAM8-40-S02.0-S-06-2	4.55 mm	0.179 in	6	Board Guide	0.76 Ám	30 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	240
