SEAM8-40-S02.0-S-04-2-K-GP

Obsolete

Samtec Inc.

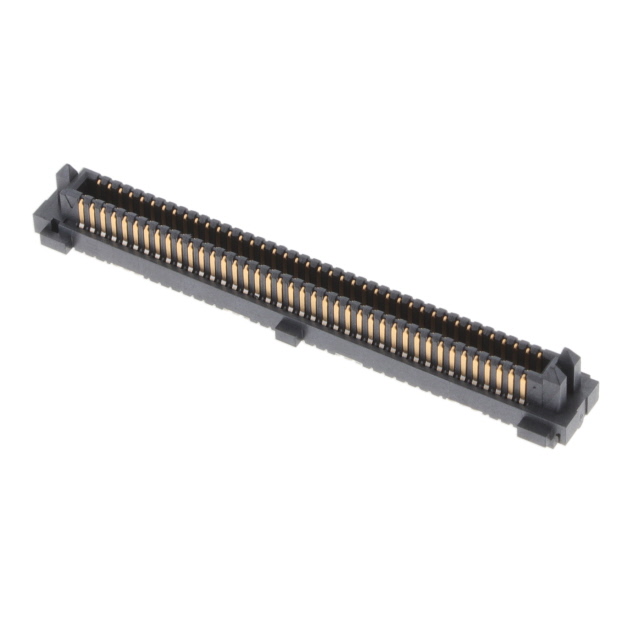

CONN HD ARRAY PLUG 160P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAM8-40-S02.0-S-04-2-K-GP

Obsolete

Samtec Inc.

CONN HD ARRAY PLUG 160P SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM8-40-S02.0-S-04-2-K-GP

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Mating Flange, Pick and Place, Board Guide
Height Above Board [z]	4.55 mm
Height Above Board [z]	0.179 in
Mated Stacking Heights	7 mm
Mounting Type	Surface Mount
Number of Positions	160
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

SEAM8-40 Series

Part	Height Above Board [z]	Height Above Board [z]	Number of Rows	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Number of Positions	Height Above Board	Height Above Board
Samtec Inc. SEAM8-40-S02.0-S-08-2-K	4.55 mm	0.179 in	8	Board Guide Pick and Place	0.76 Ám	30 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	320
Samtec Inc. SEAM8-40-S02.0-S-04-2-K-GP	4.55 mm	0.179 in		Board Guide Mating Flange Pick and Place	0.76 Ám	30 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	160
Samtec Inc. SEAM8-40-S02.0-S-04-2-K	4.55 mm	0.179 in		Board Guide Pick and Place	0.76 Ám	30 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	160
Samtec Inc. SEAM8-40-S05.0-S-08-2			8	Board Guide	0.76 Ám	30 Áin	High Density Array Male	10 mm	0.8 mm	0.031 in	Surface Mount	Gold	320	0.297 in	7.54 mm
Samtec Inc. SEAM8-40-S02.0-L-10-3	4.55 mm	0.179 in	10	Board Guide	0.25 Ám	10 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	400
Samtec Inc. SEAM8-40-S05.0-S-04-3				Board Guide	0.76 Ám	30 Áin	High Density Array Male	10 mm	0.8 mm	0.031 in	Surface Mount	Gold	160	0.297 in	7.54 mm
Samtec Inc. SEAM8-40-S02.0-S-06-3	4.55 mm	0.179 in	6	Board Guide	0.76 Ám	30 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	240
Samtec Inc. SEAM8-40-S05.0-S-04-2				Board Guide	0.76 Ám	30 Áin	High Density Array Male	10 mm	0.8 mm	0.031 in	Surface Mount	Gold	160	0.297 in	7.54 mm
Samtec Inc. SEAM8-40-S05.0-S-10-2			10	Board Guide	0.76 Ám	30 Áin	High Density Array Male	10 mm	0.8 mm	0.031 in	Surface Mount	Gold	400	0.297 in	7.54 mm
Samtec Inc. SEAM8-40-S02.0-S-06-2	4.55 mm	0.179 in	6	Board Guide	0.76 Ám	30 Áin	High Density Array Male	7 mm	0.8 mm	0.031 in	Surface Mount	Gold	240

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SEAM8-40 Series

160 Position Connector High Density Array, Male Surface Mount Gold

Documents

Technical documentation and resources
