C4BSPBX4150ZBLJ - C4BSPBX4150ZBLJ

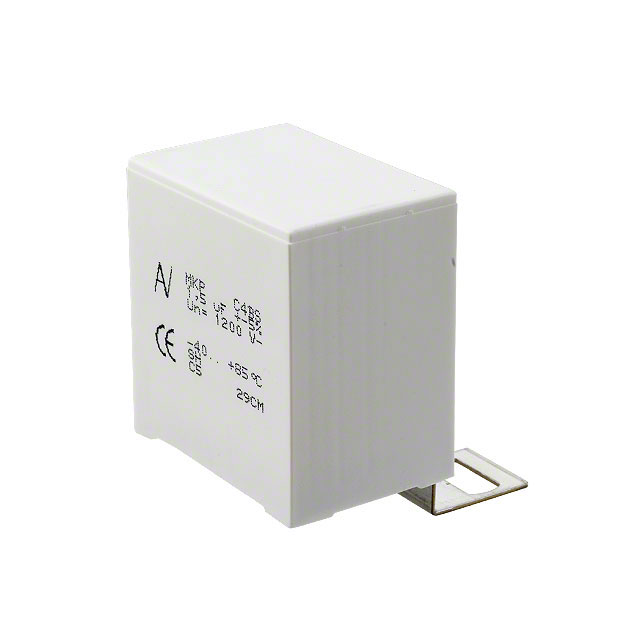

C4BSPBX4150ZBLJ

Active
KEMET

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - TABS, 1.5 ΜF, ± 5%, SNUBBER, PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetPower Film Capacitors Catalog+4
C4BSPBX4150ZBLJ - C4BSPBX4150ZBLJ

C4BSPBX4150ZBLJ

Active
KEMET

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - TABS, 1.5 ΜF, ± 5%, SNUBBER, PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheetPower Film Capacitors Catalog+4

Technical Specifications

Parameters and characteristics for this part

SpecificationC4BSPBX4150ZBLJ
ApplicationsDC Link, DC Filtering, Snubber
Capacitance1.5 µF
Dielectric MaterialMetallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)2.3 mOhms
Height - Seated (Max) [Max] [z]1.772 in
Height - Seated (Max) [Max] [z]45 mm
Lead Spacing0.866 in
Lead Spacing22 mm
Mounting TypeChassis Mount
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Package / CaseRectangular Box
Size / Dimension [x]42 mm
Size / Dimension [x]1.654 in
Size / Dimension [y]1.181 in
Size / Dimension [y]30 mm
TerminationScrew Terminals
Tolerance5 %
Voltage Rating - AC630 V
Voltage Rating - DC1200 V
Voltage Rating - DC1.2 kV

C4BSPB Series

PartPackage / CaseMounting TypeDielectric MaterialVoltage Rating - ACTerminationESR (Equivalent Series Resistance)Lead SpacingLead SpacingApplicationsToleranceOperating Temperature [Max]Operating Temperature [Min]Voltage Rating - DCVoltage Rating - DCSize / Dimension [x]Size / Dimension [y]Size / Dimension [x]Size / Dimension [y]CapacitanceHeight - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]
KEMET
C4BSPBX4150ZBLJ
Rectangular Box
Chassis Mount
Metallized
Polypropylene (PP)
630 V
Screw Terminals
2.3 mOhms
0.866 in
22 mm
DC Filtering
DC Link
Snubber
5 %
85 °C
-40 °C
1200 V
1.2 kV
42 mm
1.181 in
1.654 in
30 mm
1.5 µF
1.772 in
45 mm
KEMET
C4BSPBX4300ZBNJ
Rectangular Box
Chassis Mount
Metallized
Polypropylene (PP)
630 V
Screw Terminals
2.5 mOhms
1.457 in
37 mm
DC Filtering
DC Link
Snubber
5 %
85 °C
-40 °C
1200 V
1.2 kV
57.5 mm
1.378 "
2.264 in
35 mm
3 µF
KEMET
C4BSPBX4300ZANJ
Rectangular Box
Chassis Mount
Metallized
Polypropylene (PP)
630 V
Screw Terminals
2.5 mOhms
1.614 in
41 mm
DC Filtering
DC Link
Snubber
5 %
85 °C
-40 °C
1200 V
1.2 kV
57.5 mm
1.378 "
2.264 in
35 mm
3 µF
KEMET
C4BSPBX3680ZBFJ
Rectangular Box
Chassis Mount
Metallized
Polypropylene (PP)
630 V
Screw Terminals
4.7 mOhms
0.866 in
22 mm
DC Filtering
DC Link
Snubber
5 %
85 °C
-40 °C
1200 V
1.2 kV
41.5 mm
0.787 in
1.634 "
20 mm
680 nF
1.575 in
40 mm
KEMET
C4BSPBX3470ZBFJ
Rectangular Box
Chassis Mount
Metallized
Polypropylene (PP)
630 V
Screw Terminals
6.7 mOhms
0.866 in
22 mm
DC Filtering
DC Link
Snubber
5 %
85 °C
-40 °C
1200 V
1.2 kV
41.5 mm
0.787 in
1.634 "
20 mm
0.47 µF
1.575 in
40 mm
KEMET
C4BSPBX4120ZBJJ
Rectangular Box
Chassis Mount
Metallized
Polypropylene (PP)
630 V
Screw Terminals
2.8 mOhms
0.866 in
22 mm
DC Filtering
DC Link
Snubber
5 %
85 °C
-40 °C
1200 V
1.2 kV
42.5 mm
1.102 in
1.673 in
28 mm
1.2 µF
1.457 in
37 mm
KEMET
C4BSPBX3470ZAFJ
Rectangular Box
Chassis Mount
Metallized
Polypropylene (PP)
630 V
Screw Terminals
6.7 mOhms
1.004 in
25.5 mm
DC Filtering
DC Link
Snubber
5 %
85 °C
-40 °C
1200 V
1.2 kV
41.5 mm
0.787 in
1.634 "
20 mm
0.47 µF
1.575 in
40 mm
KEMET
C4BSPBX4200ZAMJ
Rectangular Box
Chassis Mount
Metallized
Polypropylene (PP)
630 V
Screw Terminals
3.6 mOhms
1.614 in
41 mm
DC Filtering
DC Link
Snubber
5 %
85 °C
-40 °C
1200 V
1.2 kV
57.5 mm
1.181 in
2.264 in
30 mm
2 µF
1.772 in
45 mm
KEMET
C4BSPBX4120ZB0J
Rectangular Box
Chassis Mount
Metallized
Polypropylene (PP)
630 V
Screw Terminals
2.8 mOhms
0.866 in
22 mm
DC Filtering
DC Link
Snubber
5 %
85 °C
-40 °C
1200 V
1.2 kV
42.5 mm
1.102 in
1.673 in
28 mm
1.2 µF
1.457 in
37 mm
KEMET
C4BSPBX4200ZBMJ
Rectangular Box
Chassis Mount
Metallized
Polypropylene (PP)
630 V
Screw Terminals
3.6 mOhms
1.457 in
37 mm
DC Filtering
DC Link
Snubber
5 %
85 °C
-40 °C
1200 V
1.2 kV
57.5 mm
1.181 in
2.264 in
30 mm
2 µF
1.772 in
45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 16.05
32$ 14.45
64$ 12.84
128$ 11.56
512$ 10.67
NewarkEach 100$ 11.56

Description

General part information

C4BSPB Series

The C4BS Series is a polypropylene metallized film with rectangular plastic box type filled with resin and tinned brass lugs.Typical applications include IGBT devices.
