C4BSPBX4300ZANJ

Active

KEMET

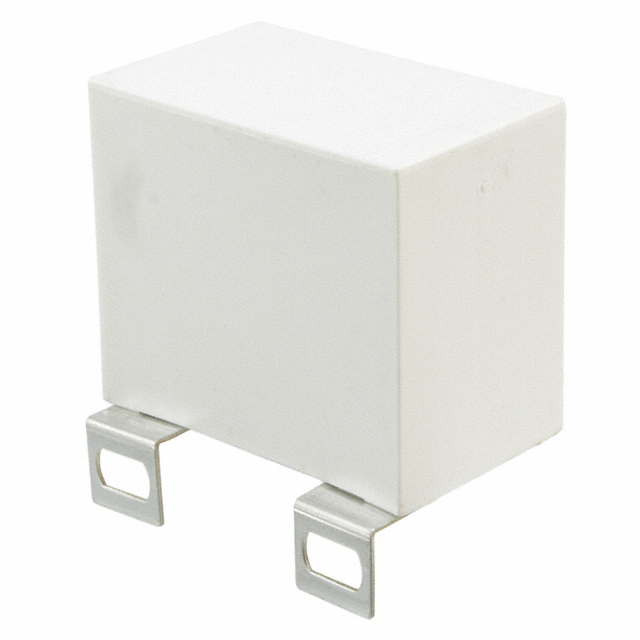

CAP FILM 3UF 5% 1.2KVDC SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC4BSPBX4300ZANJ Spec Datasheet +2

C4BSPBX4300ZANJ

Active

KEMET

CAP FILM 3UF 5% 1.2KVDC SCREW

Deep-Dive with AI

DocumentsC4BSPBX4300ZANJ Spec Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4BSPBX4300ZANJ

Applications	DC Link, DC Filtering, Snubber
Capacitance	3 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	2.5 mOhms
Lead Spacing	41 mm
Lead Spacing	1.614 in
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Rectangular Box
Size / Dimension [x]	2.264 in
Size / Dimension [x]	57.5 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.378 "
Termination	Screw Terminals
Tolerance	5 %
Voltage Rating - AC	630 V
Voltage Rating - DC	1200 V
Voltage Rating - DC	1.2 kV

C4BSPB Series

Part	Package / Case	Mounting Type	Dielectric Material	Voltage Rating - AC	Termination	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Applications	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C4BSPBX4150ZBLJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	2.3 mOhms	0.866 in	22 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	42 mm	1.181 in	1.654 in	30 mm	1.5 µF	1.772 in	45 mm
KEMET C4BSPBX4300ZBNJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	2.5 mOhms	1.457 in	37 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	57.5 mm	1.378 "	2.264 in	35 mm	3 µF
KEMET C4BSPBX4300ZANJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	2.5 mOhms	1.614 in	41 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	57.5 mm	1.378 "	2.264 in	35 mm	3 µF
KEMET C4BSPBX3680ZBFJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	4.7 mOhms	0.866 in	22 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	41.5 mm	0.787 in	1.634 "	20 mm	680 nF	1.575 in	40 mm
KEMET C4BSPBX3470ZBFJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	6.7 mOhms	0.866 in	22 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	41.5 mm	0.787 in	1.634 "	20 mm	0.47 µF	1.575 in	40 mm
KEMET C4BSPBX4120ZBJJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	2.8 mOhms	0.866 in	22 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	42.5 mm	1.102 in	1.673 in	28 mm	1.2 µF	1.457 in	37 mm
KEMET C4BSPBX3470ZAFJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	6.7 mOhms	1.004 in	25.5 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	41.5 mm	0.787 in	1.634 "	20 mm	0.47 µF	1.575 in	40 mm
KEMET C4BSPBX4200ZAMJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	3.6 mOhms	1.614 in	41 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	57.5 mm	1.181 in	2.264 in	30 mm	2 µF	1.772 in	45 mm
KEMET C4BSPBX4120ZB0J	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	2.8 mOhms	0.866 in	22 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	42.5 mm	1.102 in	1.673 in	28 mm	1.2 µF	1.457 in	37 mm
KEMET C4BSPBX4200ZBMJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	3.6 mOhms	1.457 in	37 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	57.5 mm	1.181 in	2.264 in	30 mm	2 µF	1.772 in	45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	105	$ 15.45
Newark	Each	100	$ 16.19
		250	$ 15.64
		500	$ 14.53

Description

General part information

C4BSPB Series

3 µF Film Capacitor 630V 1200V (1.2kV) Polypropylene (PP), Metallized Rectangular Box

Documents

Technical documentation and resources

C4BSPBX4300ZANJ

Deep-Dive with AI

C4BSPBX4300ZANJ

Deep-Dive with AI

Technical Specifications

C4BSPB Series

Pricing

Description

C4BSPB Series

Documents

C4BSPBX4300ZANJ Spec

Datasheet

Power Film Capacitors Catalog

Product Change Notice EN

C4BSPB Series
