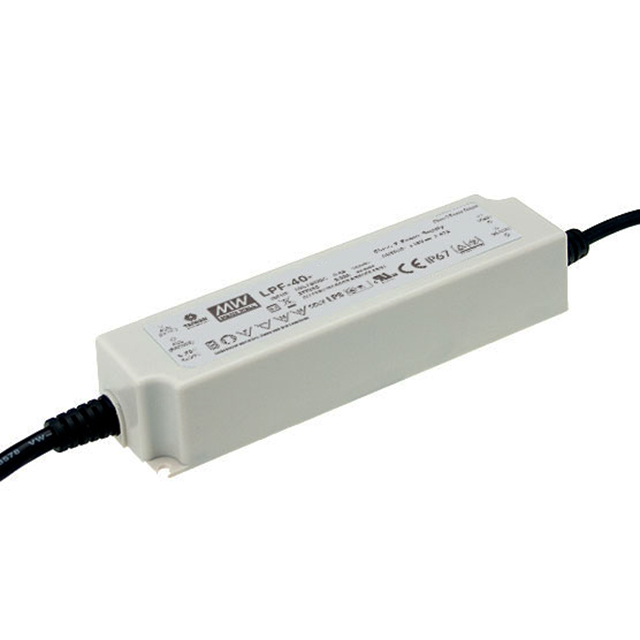

LPF-40-24

Active

MEAN WELL USA Inc.

LED DVR CCCV ACDC 14.4-24V 1.67A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LPF-40-24

Active

MEAN WELL USA Inc.

LED DVR CCCV ACDC 14.4-24V 1.67A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LPF-40-24

Approval Agency	cURus, PSE, CB, CCC, ENEC, TUV, CE
Current - Output (Max) [Max]	1.67 A
Efficiency	87 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Power (Watts)	40 W
Ratings	IP67
Size / Dimension [x]	6.4 in
Size / Dimension [x]	162.5 mm
Size / Dimension [y]	1.69 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	32 mm
Size / Dimension [z]	1.26 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	24 V
Voltage - Output [Min]	14.4 V

LPF-40 Series

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Features	Ratings	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Isolation	Topology	Voltage - Input (Min) [Min]	Power (Watts)	Efficiency	Approval Agency	Number of Outputs	Voltage - Output [Min]	Voltage - Output [Max]
MEAN WELL USA Inc. LPF-40D-15	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	OCP OTP OVP SCP	IP67	Analog PWM	-40 °C	80 C	Chassis Mount	Wire Leads	Constant Current	2.67 A	305 VAC	3750 V	AC DC Converter	90 VAC	40 W	85 %	CB CCC CE cURus ENEC PSE TUV	1
MEAN WELL USA Inc. LPF-40D-30	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	OCP OTP OVP SCP	IP67	Analog PWM	-40 °C	80 C	Chassis Mount	Wire Leads	Constant Current	1.34 A	305 VAC	3750 V	AC DC Converter	90 VAC	40 W	88 %	CB CCC CE cURus ENEC PSE TUV	1
MEAN WELL USA Inc. LPF-40D-42	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	OCP OTP OVP SCP	IP67	Analog PWM	-40 °C	80 C	Chassis Mount	Wire Leads	Constant Current	960 mA	305 VAC	3750 V	AC DC Converter	90 VAC	40 W	88.5 %	CB CCC CE cURus ENEC PSE TUV	1	25.2 V	42 V
MEAN WELL USA Inc. LPF-40-30	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	OCP OTP OVP SCP	IP67		-40 °C	80 C	Chassis Mount	Wire Leads	Constant Current Voltage	1.34 A	305 VAC	3750 V	AC DC Converter	90 VAC	40 W	88 %	CB CCC CE cURus ENEC PSE TUV	1
MEAN WELL USA Inc. LPF-40-24	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	OCP OTP OVP SCP	IP67		-40 °C	80 C	Chassis Mount	Wire Leads	Constant Current Voltage	1.67 A	305 VAC	3750 V	AC DC Converter	90 VAC	40 W	87 %	CB CCC CE cURus ENEC PSE TUV	1	14.4 V	24 V
MEAN WELL USA Inc. LPF-40-54	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	OCP OTP OVP SCP	IP67		-40 °C	80 C	Chassis Mount	Wire Leads	Constant Current Voltage	760 mA	305 VAC	3750 V	AC DC Converter	90 VAC	41 W	90 %	CB CCC CE PSE TUV UR	1	32.4 V	54 V
MEAN WELL USA Inc. LPF-40-20	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	OCP OTP OVP SCP	IP67		-40 °C	80 C	Chassis Mount	Wire Leads	Constant Current Voltage	2 A	305 VAC	3750 V	AC DC Converter	90 VAC	40 W	86 %	CB CCC CE cURus ENEC PSE TUV	1	12 V	20 V
MEAN WELL USA Inc. LPF-40D-12	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	OCP OTP OVP SCP	IP67	Analog PWM	-40 °C	80 C	Chassis Mount	Wire Leads	Constant Current	3.34 A	305 VAC	3750 V	AC DC Converter	90 VAC	40 W	84 %	CB CCC CE cURus ENEC PSE TUV	1	7.2 V	12 V
MEAN WELL USA Inc. LPF-40D-24	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	OCP OTP OVP SCP	IP67	Analog PWM	-40 °C	80 C	Chassis Mount	Wire Leads	Constant Current	1.67 A	305 VAC	3750 V	AC DC Converter	90 VAC	40 W	87 %	CB CCC CE cURus ENEC PSE TUV	1	14.4 V	24 V
MEAN WELL USA Inc. LPF-40-48	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	OCP OTP OVP SCP	IP67		-40 °C	80 C	Chassis Mount	Wire Leads	Constant Current Voltage	840 mA	305 VAC	3750 V	AC DC Converter	90 VAC	40 W	90 %	CB CCC CE PSE TUV UR	1	28.8 V	48 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 34.54
		5	$ 31.58
		10	$ 30.39
		25	$ 28.88

Description

General part information

LPF-40 Series

1.67A 14.4 ~ 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
