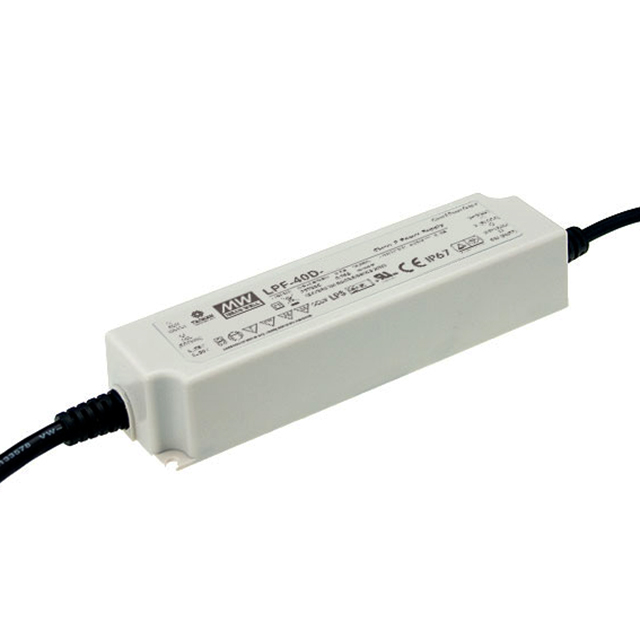

LPF-40D-15
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 9-15V 2.67A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPF-40D-15
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 9-15V 2.67A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPF-40D-15 |
|---|---|
| Approval Agency | cURus, PSE, CB, CCC, ENEC, TUV, CE |
| Current - Output (Max) [Max] | 2.67 A |
| Dimming | Analog, PWM |
| Efficiency | 85 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 40 W |
| Ratings | IP67 |
| Size / Dimension [x] | 6.4 in |
| Size / Dimension [x] | 162.5 mm |
| Size / Dimension [y] | 1.69 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 32 mm |
| Size / Dimension [z] | 1.26 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
LPF-40 Series
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Features | Ratings | Dimming | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination Style | Type | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Isolation | Topology | Voltage - Input (Min) [Min] | Power (Watts) | Efficiency | Approval Agency | Number of Outputs | Voltage - Output [Min] | Voltage - Output [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | 32 mm | 1.69 in | 43 mm | 6.4 in | 162.5 mm | 1.26 in | OCP OTP OVP SCP | IP67 | Analog PWM | -40 °C | 80 C | Chassis Mount | Wire Leads | Constant Current | 2.67 A | 305 VAC | 3750 V | AC DC Converter | 90 VAC | 40 W | 85 % | CB CCC CE cURus ENEC PSE TUV | 1 | ||
MEAN WELL USA Inc. | 32 mm | 1.69 in | 43 mm | 6.4 in | 162.5 mm | 1.26 in | OCP OTP OVP SCP | IP67 | Analog PWM | -40 °C | 80 C | Chassis Mount | Wire Leads | Constant Current | 1.34 A | 305 VAC | 3750 V | AC DC Converter | 90 VAC | 40 W | 88 % | CB CCC CE cURus ENEC PSE TUV | 1 | ||
MEAN WELL USA Inc. | 32 mm | 1.69 in | 43 mm | 6.4 in | 162.5 mm | 1.26 in | OCP OTP OVP SCP | IP67 | Analog PWM | -40 °C | 80 C | Chassis Mount | Wire Leads | Constant Current | 960 mA | 305 VAC | 3750 V | AC DC Converter | 90 VAC | 40 W | 88.5 % | CB CCC CE cURus ENEC PSE TUV | 1 | 25.2 V | 42 V |
MEAN WELL USA Inc. | 32 mm | 1.69 in | 43 mm | 6.4 in | 162.5 mm | 1.26 in | OCP OTP OVP SCP | IP67 | -40 °C | 80 C | Chassis Mount | Wire Leads | Constant Current Voltage | 1.34 A | 305 VAC | 3750 V | AC DC Converter | 90 VAC | 40 W | 88 % | CB CCC CE cURus ENEC PSE TUV | 1 | |||
MEAN WELL USA Inc. | 32 mm | 1.69 in | 43 mm | 6.4 in | 162.5 mm | 1.26 in | OCP OTP OVP SCP | IP67 | -40 °C | 80 C | Chassis Mount | Wire Leads | Constant Current Voltage | 1.67 A | 305 VAC | 3750 V | AC DC Converter | 90 VAC | 40 W | 87 % | CB CCC CE cURus ENEC PSE TUV | 1 | 14.4 V | 24 V | |
MEAN WELL USA Inc. | 32 mm | 1.69 in | 43 mm | 6.4 in | 162.5 mm | 1.26 in | OCP OTP OVP SCP | IP67 | -40 °C | 80 C | Chassis Mount | Wire Leads | Constant Current Voltage | 760 mA | 305 VAC | 3750 V | AC DC Converter | 90 VAC | 41 W | 90 % | CB CCC CE PSE TUV UR | 1 | 32.4 V | 54 V | |
MEAN WELL USA Inc. | 32 mm | 1.69 in | 43 mm | 6.4 in | 162.5 mm | 1.26 in | OCP OTP OVP SCP | IP67 | -40 °C | 80 C | Chassis Mount | Wire Leads | Constant Current Voltage | 2 A | 305 VAC | 3750 V | AC DC Converter | 90 VAC | 40 W | 86 % | CB CCC CE cURus ENEC PSE TUV | 1 | 12 V | 20 V | |
MEAN WELL USA Inc. | 32 mm | 1.69 in | 43 mm | 6.4 in | 162.5 mm | 1.26 in | OCP OTP OVP SCP | IP67 | Analog PWM | -40 °C | 80 C | Chassis Mount | Wire Leads | Constant Current | 3.34 A | 305 VAC | 3750 V | AC DC Converter | 90 VAC | 40 W | 84 % | CB CCC CE cURus ENEC PSE TUV | 1 | 7.2 V | 12 V |
MEAN WELL USA Inc. | 32 mm | 1.69 in | 43 mm | 6.4 in | 162.5 mm | 1.26 in | OCP OTP OVP SCP | IP67 | Analog PWM | -40 °C | 80 C | Chassis Mount | Wire Leads | Constant Current | 1.67 A | 305 VAC | 3750 V | AC DC Converter | 90 VAC | 40 W | 87 % | CB CCC CE cURus ENEC PSE TUV | 1 | 14.4 V | 24 V |
MEAN WELL USA Inc. | 32 mm | 1.69 in | 43 mm | 6.4 in | 162.5 mm | 1.26 in | OCP OTP OVP SCP | IP67 | -40 °C | 80 C | Chassis Mount | Wire Leads | Constant Current Voltage | 840 mA | 305 VAC | 3750 V | AC DC Converter | 90 VAC | 40 W | 90 % | CB CCC CE PSE TUV UR | 1 | 28.8 V | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 29.66 | |
| 5 | $ 27.50 | |||
| 10 | $ 26.62 | |||
| 25 | $ 25.49 | |||
Description
General part information
LPF-40 Series
2.67A 9 ~ 15V Constant Current LED Driver AC DC Converter Topology 1 Output
