DAC53608EVM
ActiveTexas Instruments
DEVELOPMENT DATA ACQUISITION
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DAC53608EVM
ActiveTexas Instruments
DEVELOPMENT DATA ACQUISITION
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DAC53608EVM | DAC53608 Series |
|---|---|---|
| Architecture | - | String DAC |
| DAC Type | Voltage | Voltage |
| Data Interface | Serial, I2C | I2C, Serial |
| Differential Output | - | True |
| INL/DNL (LSB) | - | 1 LSB |
| INL/DNL (LSB) | - | -1 LSB |
| INL/DNL (LSB) | - | 1 LSB |
| Mounting Type | - | Surface Mount |
| Number of Bits | 10 | 10 |
| Number of D/A Converters | - | 8 |
| Number of DAC's | 8 | 8 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Type | - | Voltage - Buffered |
| Package / Case | - | 16-WFQFN Exposed Pad |
| Reference Type | - | External |
| Settling Time | 10 µs | 10 µs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-WQFN (3x3) |
| Utilized IC / Part | DAC53608 | DAC53608 |
| Voltage - Supply, Analog | - | 1.8 V |
| Voltage - Supply, Analog | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DAC53608 Series
10-Bit, 8-channel, I2C, voltage output DAC in tiny QFN package
| Part | Number of Bits | Data Interface | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | INL/DNL (LSB) | Architecture | Number of D/A Converters | Package / Case | Output Type | Settling Time | Mounting Type | Differential Output | Reference Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | INL/DNL (LSB) [Min] | INL/DNL (LSB) [Max] | Utilized IC / Part | DAC Type | Number of DAC's | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments DAC53608RTETThe DAC53608 and DAC43608 (DACx3608) are low-power, eight-channel, voltage-output, 10-bit or 8-bit digital-to-analog converters (DACs) respectively. The DACx3608 are specified monotonic by design across a wide power supply range from 1.8 V to 5.5 V. Using an external reference, the DACx3608 provides a full scale output voltage range of 1.8 V to 5.5 V while consuming 0.1-mA quiescent current per channel. The DACx3608 also includes per channel, user programmable, power down registers. These registers facilitate the DAC output buffers to start in a power down to 10K state and remain in this state until a power up command is issued to these output buffers.
Low quiescent current, wide power supply range, and per channel power down option makes DACx3608 ideal for low power, battery operated systems.
The devices communicate through the I2CTMinterface. These devices support I2CTMstandard mode (100 kbps), fast mode (400 kbps), and fast+ mode (1 Mbps). These devices also have a load DAC (LDAC) pin that allows simultaneous DAC updates.
The DACx3608 are available in small 3-mm × 3-mm, 16-pin WQFN package. The devices are fully specified over the extended industrial temperature range of –40°C to +125°C.
The DAC53608 and DAC43608 (DACx3608) are low-power, eight-channel, voltage-output, 10-bit or 8-bit digital-to-analog converters (DACs) respectively. The DACx3608 are specified monotonic by design across a wide power supply range from 1.8 V to 5.5 V. Using an external reference, the DACx3608 provides a full scale output voltage range of 1.8 V to 5.5 V while consuming 0.1-mA quiescent current per channel. The DACx3608 also includes per channel, user programmable, power down registers. These registers facilitate the DAC output buffers to start in a power down to 10K state and remain in this state until a power up command is issued to these output buffers.
Low quiescent current, wide power supply range, and per channel power down option makes DACx3608 ideal for low power, battery operated systems.
The devices communicate through the I2CTMinterface. These devices support I2CTMstandard mode (100 kbps), fast mode (400 kbps), and fast+ mode (1 Mbps). These devices also have a load DAC (LDAC) pin that allows simultaneous DAC updates.
The DACx3608 are available in small 3-mm × 3-mm, 16-pin WQFN package. The devices are fully specified over the extended industrial temperature range of –40°C to +125°C. | 10 | I2C | 1.8 V | 5.5 V | 1 LSB, 1 LSB | String DAC | 8 | 16-WFQFN Exposed Pad | Voltage - Buffered | 10 µs | Surface Mount | External | 16-WQFN (3x3) | 125 °C | -40 °C | |||||||
Texas Instruments DAC53608RTERThe DAC53608 and DAC43608 (DACx3608) are low-power, eight-channel, voltage-output, 10-bit or 8-bit digital-to-analog converters (DACs) respectively. The DACx3608 are specified monotonic by design across a wide power supply range from 1.8 V to 5.5 V. Using an external reference, the DACx3608 provides a full scale output voltage range of 1.8 V to 5.5 V while consuming 0.1-mA quiescent current per channel. The DACx3608 also includes per channel, user programmable, power down registers. These registers facilitate the DAC output buffers to start in a power down to 10K state and remain in this state until a power up command is issued to these output buffers.
Low quiescent current, wide power supply range, and per channel power down option makes DACx3608 ideal for low power, battery operated systems.
The devices communicate through the I2CTMinterface. These devices support I2CTMstandard mode (100 kbps), fast mode (400 kbps), and fast+ mode (1 Mbps). These devices also have a load DAC (LDAC) pin that allows simultaneous DAC updates.
The DACx3608 are available in small 3-mm × 3-mm, 16-pin WQFN package. The devices are fully specified over the extended industrial temperature range of –40°C to +125°C.
The DAC53608 and DAC43608 (DACx3608) are low-power, eight-channel, voltage-output, 10-bit or 8-bit digital-to-analog converters (DACs) respectively. The DACx3608 are specified monotonic by design across a wide power supply range from 1.8 V to 5.5 V. Using an external reference, the DACx3608 provides a full scale output voltage range of 1.8 V to 5.5 V while consuming 0.1-mA quiescent current per channel. The DACx3608 also includes per channel, user programmable, power down registers. These registers facilitate the DAC output buffers to start in a power down to 10K state and remain in this state until a power up command is issued to these output buffers.
Low quiescent current, wide power supply range, and per channel power down option makes DACx3608 ideal for low power, battery operated systems.
The devices communicate through the I2CTMinterface. These devices support I2CTMstandard mode (100 kbps), fast mode (400 kbps), and fast+ mode (1 Mbps). These devices also have a load DAC (LDAC) pin that allows simultaneous DAC updates.
The DACx3608 are available in small 3-mm × 3-mm, 16-pin WQFN package. The devices are fully specified over the extended industrial temperature range of –40°C to +125°C. | 10 | I2C | 1.8 V | 5.5 V | String DAC | 8 | 16-WFQFN Exposed Pad | Voltage - Buffered | 10 µs | Surface Mount | External | 16-WQFN (3x3) | 125 °C | -40 °C | -1 LSB | 1 LSB | ||||||

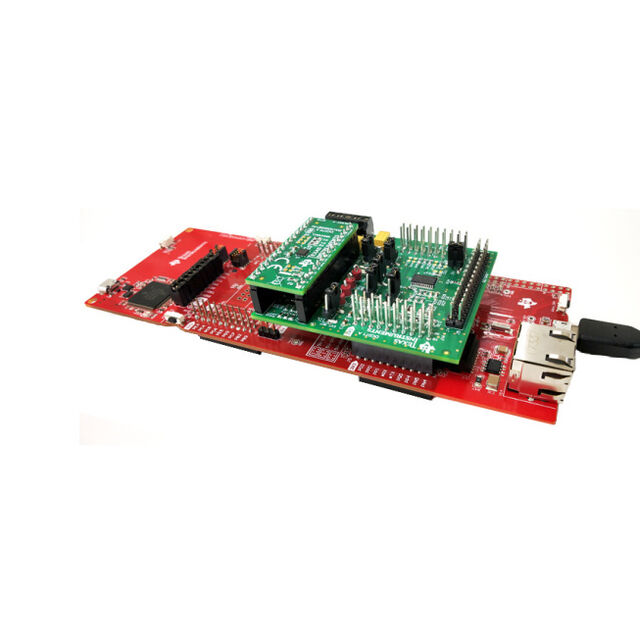

Texas Instruments DAC53608EVMDAC53608 10 Bit Samples Per Second Digital to Analog Converter (DAC) Evaluation Board | 10 | I2C, Serial | 10 µs | DAC53608 | Voltage | 8 | Board(s) |
Description
General part information
DAC53608 Series
The DAC53608 and DAC43608 (DACx3608) are low-power, eight-channel, voltage-output, 10-bit or 8-bit digital-to-analog converters (DACs) respectively. The DACx3608 are specified monotonic by design across a wide power supply range from 1.8 V to 5.5 V. Using an external reference, the DACx3608 provides a full scale output voltage range of 1.8 V to 5.5 V while consuming 0.1-mA quiescent current per channel. The DACx3608 also includes per channel, user programmable, power down registers. These registers facilitate the DAC output buffers to start in a power down to 10K state and remain in this state until a power up command is issued to these output buffers.
Low quiescent current, wide power supply range, and per channel power down option makes DACx3608 ideal for low power, battery operated systems.
The devices communicate through the I2CTMinterface. These devices support I2CTMstandard mode (100 kbps), fast mode (400 kbps), and fast+ mode (1 Mbps). These devices also have a load DAC (LDAC) pin that allows simultaneous DAC updates.
