Description

General part information

10132797 Series

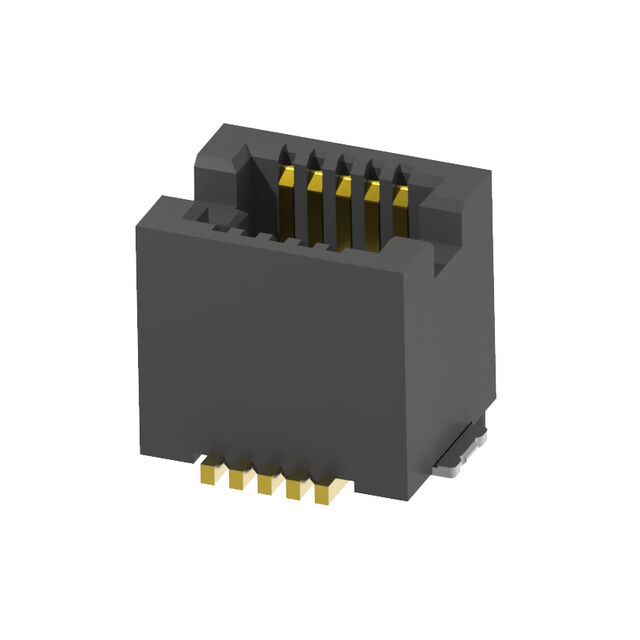

10 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

Technical Specifications

Parameters and characteristics for this part

Specification10132797-015120LF
Connector TypePlug, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness1 µin
FeaturesBoard Guide
Height Above Board0.169 in
Mated Stacking Height5 mm
Mounting TypeSurface Mount
Number of Positions10
Number of Rows2
Pitch0.02 in
