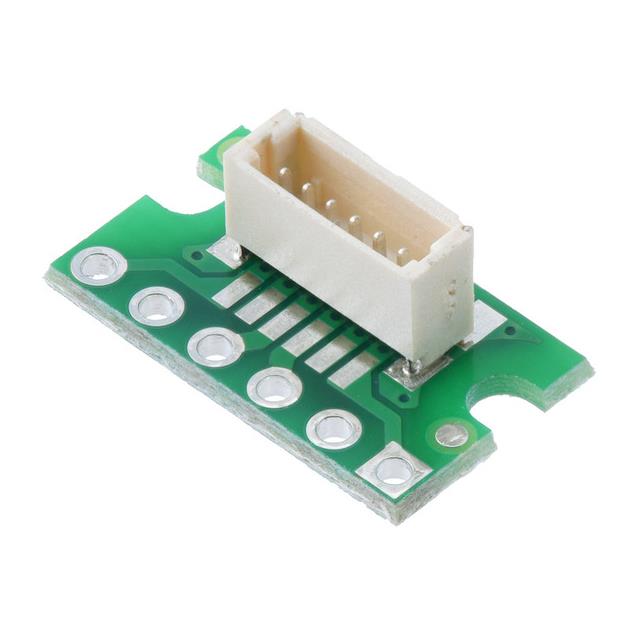

6-PIN JST SH CON CARRIER TOP 1P

Search across all available documentation for this part.

Active

Pololu

6-PIN JST SH CON CARRIER TOP 1P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 6 position 0.039" (1.00mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	4770	- Series

Color	-	Black
Connector Type	-	Non-Gendered
Contact Termination	-	Crimp
Contact Type	Male Pin	Male Pin, Non-Gendered
Fastening Type	-	Slide-On
Features	-	Cable Clamp
Insulation Material	-	Plastic
Mounting Type	Through Hole	Through Hole, Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	6	6 - 20
Number of Rows	1	1 - 2
Pitch	-	2.54 mm
Pitch	-	0.1 in
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Row Spacing	-	0.1 in
Row Spacing	-	2.54 mm
Style	Board to Cable/Wire	Board to Cable/Wire
