CONN HSG 20POS 2.54MM 5PK

Search across all available documentation for this part.

Active

Pololu

CONN HSG 20POS 2.54MM 5PK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.74

General part information

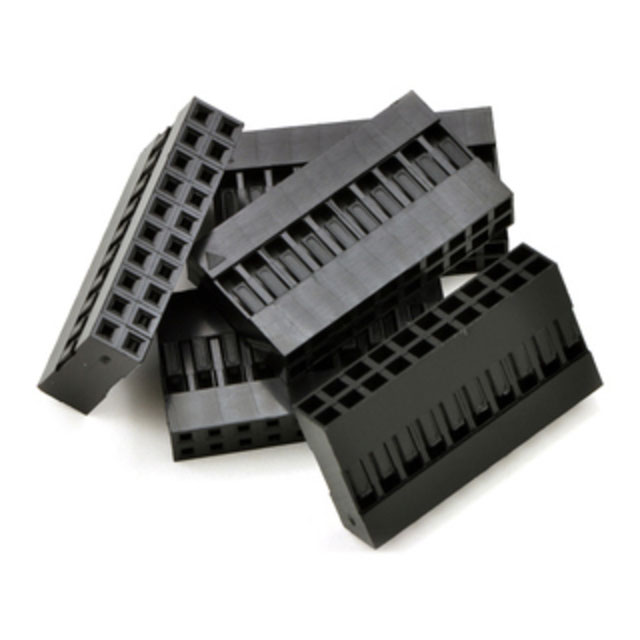

20 Rectangular Connectors - Housings Non-Gendered Black 0.100" (2.54mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1917	- Series

Color	Black	Black
Connector Type	Non-Gendered	Non-Gendered
Contact Termination	Crimp	Crimp
Contact Type	Non-Gendered	Male Pin, Non-Gendered
Fastening Type	Slide-On	Slide-On
Features	Cable Clamp	Cable Clamp
Insulation Material	Plastic	Plastic
Mounting Type	Free Hanging (In-Line)	Through Hole, Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	20	6 - 20
Number of Rows	2	1 - 2
Pitch - Mating	-	0.039 in
Pitch - Mating	-	1 mm
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in
Style	-	Board to Cable/Wire

6-PIN JST SH CON CARRIER TOP 3P

Part	Number of Rows	Number of Positions	Contact Type	Mounting Type	Style	Pitch - Mating	Pitch - Mating	Note	Contact Termination	Color	Fastening Type	Insulation Material	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Connector Type	Features
Pololu 4771	1	6	Male Pin	Through Hole	Board to Cable/Wire	0.039 in	1 mm
Pololu 4772	1	6	Male Pin	Through Hole	Board to Cable/Wire	0.039 in	1 mm
Pololu 1908	1	9	Non-Gendered	Free Hanging (In-Line)				Contacts Not Included	Crimp	Black	Slide-On	Plastic	0.1 in	2.54 mm	2.54 mm	0.1 in	Non-Gendered	Cable Clamp
Pololu 1917	2	20	Non-Gendered	Free Hanging (In-Line)				Contacts Not Included	Crimp	Black	Slide-On	Plastic	0.1 in	2.54 mm	2.54 mm	0.1 in	Non-Gendered	Cable Clamp
Pololu 1991	1	20	Non-Gendered	Free Hanging (In-Line)				Contacts Not Included	Crimp	Black	Slide-On	Plastic	0.1 in	2.54 mm	2.54 mm	0.1 in	Non-Gendered	Cable Clamp
Pololu 4773	1	6	Male Pin	Through Hole	Board to Cable/Wire	0.039 in	1 mm
Pololu 4770	1	6	Male Pin	Through Hole	Board to Cable/Wire	0.039 in	1 mm
