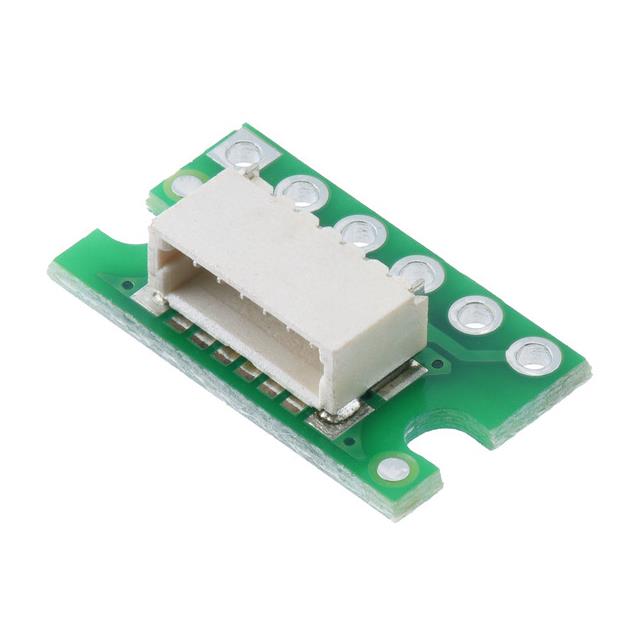

6-PIN JST SH CON CARRIER SIDE 1P

Search across all available documentation for this part.

Active

Pololu

6-PIN JST SH CON CARRIER SIDE 1P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.25

General part information

Connector Header Through Hole 6 position 0.039" (1.00mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	4772	- Series

Color	-	Black
Connector Type	-	Non-Gendered
Contact Termination	-	Crimp
Contact Type	Male Pin	Male Pin, Non-Gendered
Fastening Type	-	Slide-On
Features	-	Cable Clamp
Insulation Material	-	Plastic
Mounting Type	Through Hole	Through Hole, Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	6	6 - 20
Number of Rows	1	1 - 2
Pitch	-	2.54 mm
Pitch	-	0.1 in
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Row Spacing	-	0.1 in
Row Spacing	-	2.54 mm
Style	Board to Cable/Wire	Board to Cable/Wire

6-PIN JST SH CON CARRIER TOP 3P

Part	Number of Rows	Number of Positions	Contact Type	Mounting Type	Style	Pitch - Mating	Pitch - Mating	Note	Contact Termination	Color	Fastening Type	Insulation Material	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Connector Type	Features
Pololu 4771	1	6	Male Pin	Through Hole	Board to Cable/Wire	0.039 in	1 mm
Pololu 4772	1	6	Male Pin	Through Hole	Board to Cable/Wire	0.039 in	1 mm
Pololu 1908	1	9	Non-Gendered	Free Hanging (In-Line)				Contacts Not Included	Crimp	Black	Slide-On	Plastic	0.1 in	2.54 mm	2.54 mm	0.1 in	Non-Gendered	Cable Clamp
Pololu 1917	2	20	Non-Gendered	Free Hanging (In-Line)				Contacts Not Included	Crimp	Black	Slide-On	Plastic	0.1 in	2.54 mm	2.54 mm	0.1 in	Non-Gendered	Cable Clamp
Pololu 1991	1	20	Non-Gendered	Free Hanging (In-Line)				Contacts Not Included	Crimp	Black	Slide-On	Plastic	0.1 in	2.54 mm	2.54 mm	0.1 in	Non-Gendered	Cable Clamp
Pololu 4773	1	6	Male Pin	Through Hole	Board to Cable/Wire	0.039 in	1 mm
Pololu 4770	1	6	Male Pin	Through Hole	Board to Cable/Wire	0.039 in	1 mm
