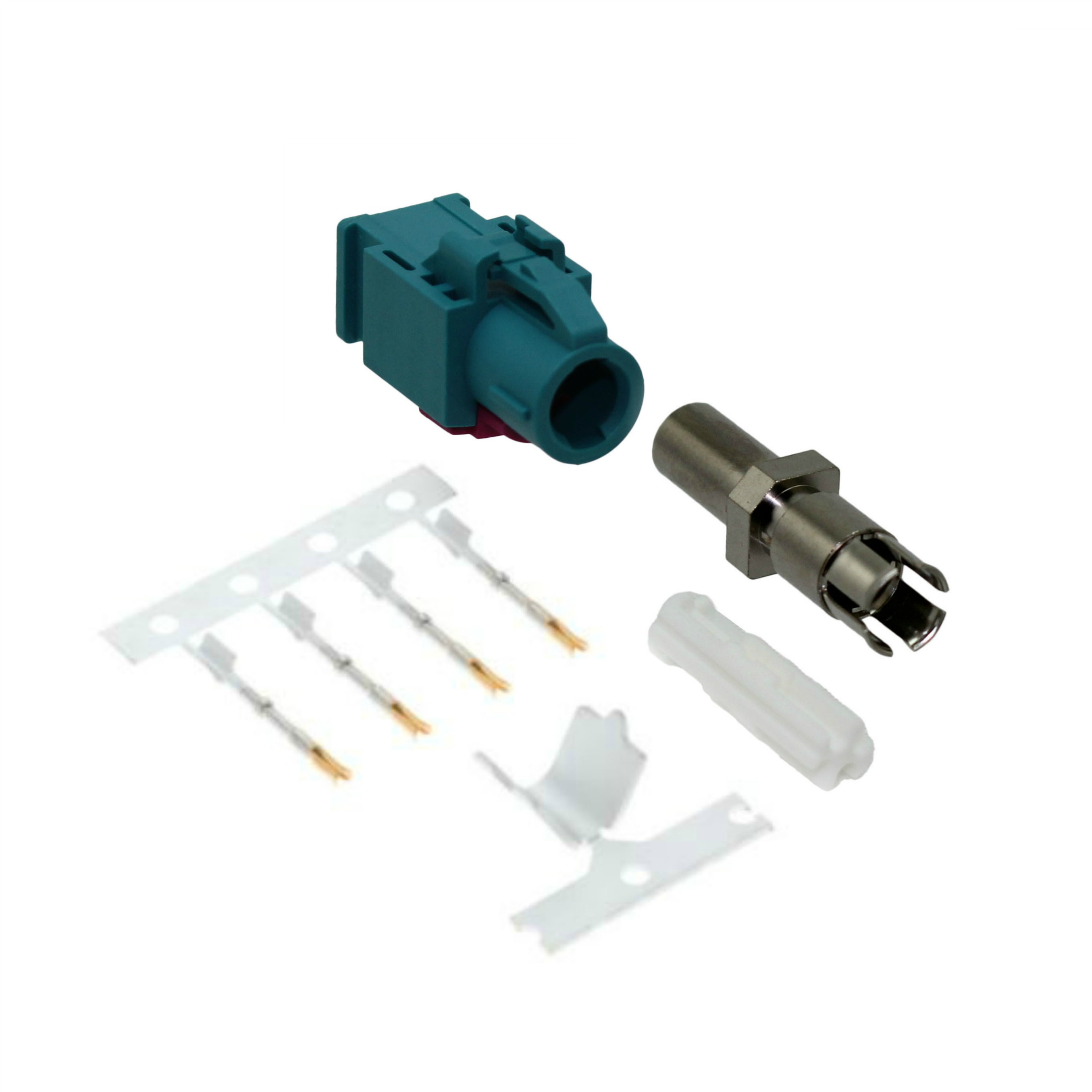

HSD-04Z-S-SD-SG-C4

Active

Adam Tech

CONN FAKRA HIGH SPEED DATA 4POS

Search across all available documentation for this part.

Active

Adam Tech

CONN FAKRA HIGH SPEED DATA 4POS

Technical Specifications

Parameters and characteristics for this part

Specification	HSD-04Z-S-SD-SG-C4

Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	Quadraxial, Fakra, HSD®
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polybutylene Terephthalate (PBT)
Fastening Type	Latch Lock
Features	Code Z
Frequency - Max [Max]	2 GHz
Impedance	100 Ohms
Mating Cycles	25
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Center Contact Plating	Connector Style	Frequency - Max [Max]	Features	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Body Material	Number of Ports	Shield Termination	Mating Cycles	Impedance	Dielectric Material	Connector Type	Contact Termination	Body Finish
Adam Tech HSD-04Z-S-SD-SG-C4	Gold	Fakra HSD® Quadraxial	2 GHz	Code Z	Phosphor Bronze	-40 °C	105 ░C	Latch Lock	Free Hanging (In-Line)	Brass	1	Crimp	25	100 Ohms	Polybutylene Terephthalate (PBT)	Female Socket Jack	Solder
Adam Tech HSD-04Z-S-PRA-SG-C1-TR	Gold	Fakra HSD® Quadraxial	2 GHz	Code Z	Brass	-40 °C	105 ░C	Latch Lock	Through Hole Right Angle	Zinc Alloy	1	Solder	25	100 Ohms		Male Pin Plug	Solder	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

HSD®, Fakra, Quadraxial Connector Jack, Female Socket 100 Ohms Free Hanging (In-Line) Solder
