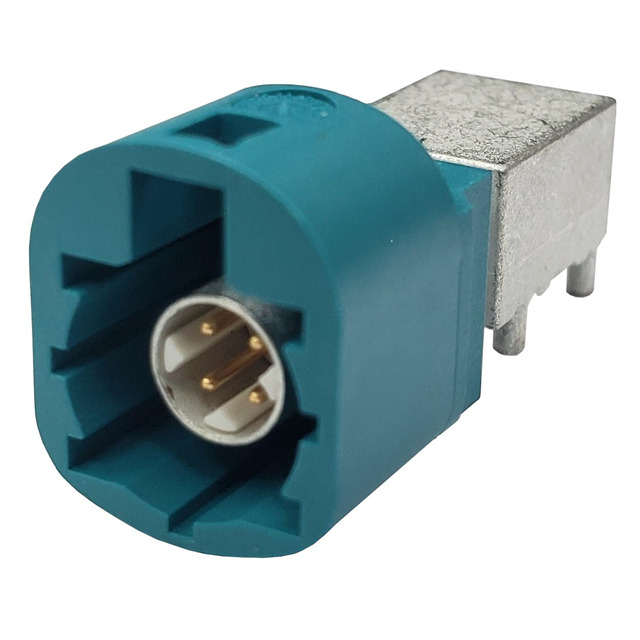

HSD-04Z-S-PRA-SG-C1-TR
ActiveAdam Tech
CONN FAKRA HIGH SPEED DATA 4POS
Deep-Dive with AI
Search across all available documentation for this part.
HSD-04Z-S-PRA-SG-C1-TR
ActiveAdam Tech
CONN FAKRA HIGH SPEED DATA 4POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSD-04Z-S-PRA-SG-C1-TR |
|---|---|
| Body Finish | Tin |
| Body Material | Zinc Alloy |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | Quadraxial, Fakra, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Latch Lock |
| Features | Code Z |
| Frequency - Max [Max] | 2 GHz |
| Impedance | 100 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.14 | |
| 10 | $ 3.17 | |||
| 25 | $ 2.86 | |||
| 50 | $ 2.64 | |||
| 100 | $ 2.45 | |||
| Digi-Reel® | 1 | $ 4.14 | ||
| 10 | $ 3.17 | |||
| 25 | $ 2.86 | |||
| 50 | $ 2.64 | |||
| 100 | $ 2.45 | |||
| Tape & Reel (TR) | 5040 | $ 1.67 | ||
Description
General part information
HSD-04Z Series
HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole, Right Angle Solder
