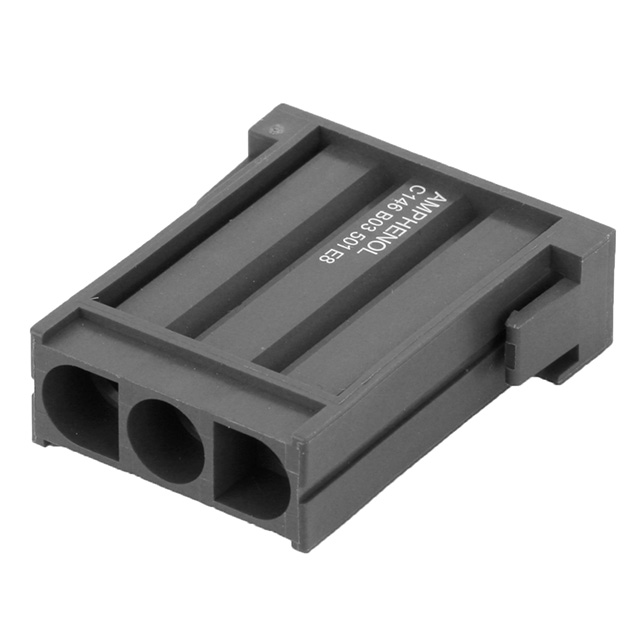

C146 B03 501 E8

Active

Amphenol Tuchel Industrial

MODULE FEMALE 3POS CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C146 B03 501 E8

Active

Amphenol Tuchel Industrial

MODULE FEMALE 3POS CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C146 B03 501 E8

Color	Auburn
Connector Type	Module without Contacts
Contact Type	heavy\|mate®, C146 M, Coax
Gender	Female
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp

C146 Series

Part	Gender	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Voltage Rating	Termination Style	Number of Positions	Current Rating (Amps)	For Use With/Related Products	Specifications	Accessory Type	Housing Material	Material Flammability Rating	Color
Amphenol Tuchel Industrial C146 B05 100 G8	Female	Module without Contacts	125 °C	-40 °C	C146 D DD heavy\|mate® M	50 V	Crimp	4	10 A
Amphenol Tuchel Industrial C146 D10 811 E8	Male							10
Amphenol Tuchel Industrial C146 N16 000 G1										heavy\|mate® C146 Inserts	16 Teeth	Adapter Frame
Amphenol Tuchel Industrial C146 A02 001 E8	Male	Module without Contacts	125 °C	-40 °C		1000 VDC	Crimp	2	150 A				Glass Filled Nylon 6/6 Polyamide (PA66)	UL94 V-0	Black
Amphenol Tuchel Industrial C146 B02 001 E8	Female	Module without Contacts	125 °C	-40 °C		1000 VDC	Crimp	2	150 A				Glass Filled Nylon 6/6 Polyamide (PA66)	UL94 V-0	Black
Amphenol Tuchel Industrial C146 B03 501 E8	Female	Module without Contacts	125 °C	-40 °C	heavy\|mate® C146 M Coax		Crimp							UL94 V-0	Auburn
Amphenol Tuchel Industrial C146 A03 501 E8	Male	Module without Contacts	125 °C	-40 °C	heavy\|mate® C146 M Coax		Crimp							UL94 V-0	Auburn
Amphenol Tuchel Industrial C146 B03 001 E8	Female	Module without Contacts	125 °C	-40 °C	heavy\|mate® C146 M		Crimp							UL94 V-0	Black
Amphenol Tuchel Industrial C146 B02 801 E8	Female	Module without Contacts	125 °C	-40 °C	heavy\|mate® C146 M	1000 VDC	Crimp	2					Polyamide (PA) Nylon	UL94 V-0	Black
Amphenol Tuchel Industrial C146 A02 801 E8	Male	Module without Contacts	125 °C	-40 °C	heavy\|mate® C146 M	1000 VDC	Crimp	2					Polyamide (PA) Nylon	UL94 V-0	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 2.29

Description

General part information

C146 Series

Female Module without Contacts Auburn 3 Position Crimp
