Part	Connector Type	Voltage Rating	Current Rating	Termination Style	Number of Positions	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Gender	Specifications	For Use With/Related Products	Accessory Type	Housing Material	Material Flammability Rating	Color
Amphenol Tuchel Industrial C146 B05 100 G8	Module without Contacts	50 V	10 A	Crimp	4	C146 D DD heavy M mate®	125 °C	-40 °C	Female
Amphenol Tuchel Industrial C146 D10 811 E8					10				Male

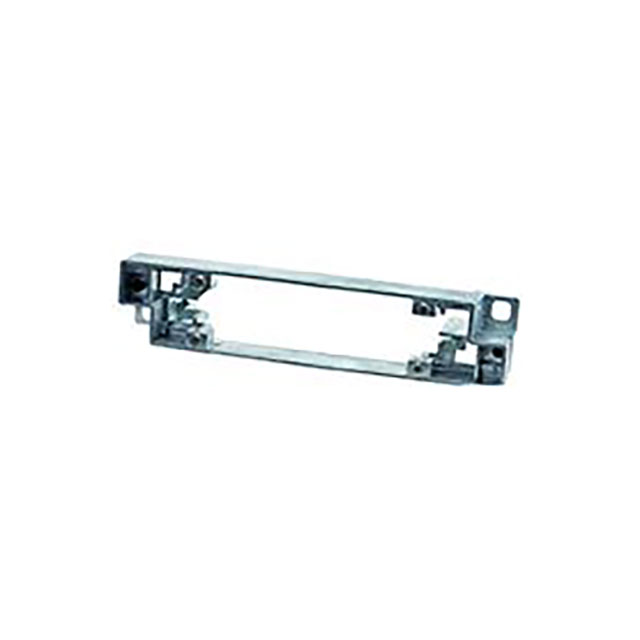

Amphenol Tuchel Industrial C146 N16 000 G1										Size 16	heavy\|mate® C146 Inserts	Adapter Frame
Amphenol Tuchel Industrial C146 A02 001 E8	Module without Contacts	1000 V	150 A	Crimp	2		125 °C	-40 °C	Male				Glass Filled Nylon 6/6 PA66 Polyamide	UL94 V-0	Black
Amphenol Tuchel Industrial C146 B02 001 E8	Module without Contacts	1000 V	150 A	Crimp	2		125 °C	-40 °C	Female				Glass Filled Nylon 6/6 PA66 Polyamide	UL94 V-0	Black
Amphenol Tuchel Industrial C146 A08 102 E8	Module without Contacts	50 V	10 A		2		125 °C	-40 °C	Male				PC Polycarbonate	UL94 V-0	Gray
Amphenol Tuchel Industrial C146 B03 501 E8	Module without Contacts			Crimp	3	C146 M Coax heavy mate®	125 °C	-40 °C	Female				Nylon 6/6 PA66 Polyamide	UL94 V-0	Auburn
Amphenol Tuchel Industrial C146 B01 004 E8	Module without Contacts	1000 V	150 A	Crimp	1	C146 M heavy mate®	125 °C	-40 °C	Female				Glass Filled Nylon 6/6 PA66 Polyamide	UL94 V-0	Black
Amphenol Tuchel Industrial C146 A03 501 E8	Module without Contacts			Crimp	3	C146 M Coax heavy mate®	125 °C	-40 °C	Male				Nylon 6/6 PA66 Polyamide	UL94 V-0	Auburn
Amphenol Tuchel Industrial C146 B03 001 E8	Module without Contacts			Crimp	3	C146 M heavy mate®	125 °C	-40 °C	Female				Nylon 6/6 PA66 Polyamide	UL94 V-0	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

C146 N16 000 G1 | Datasheet
