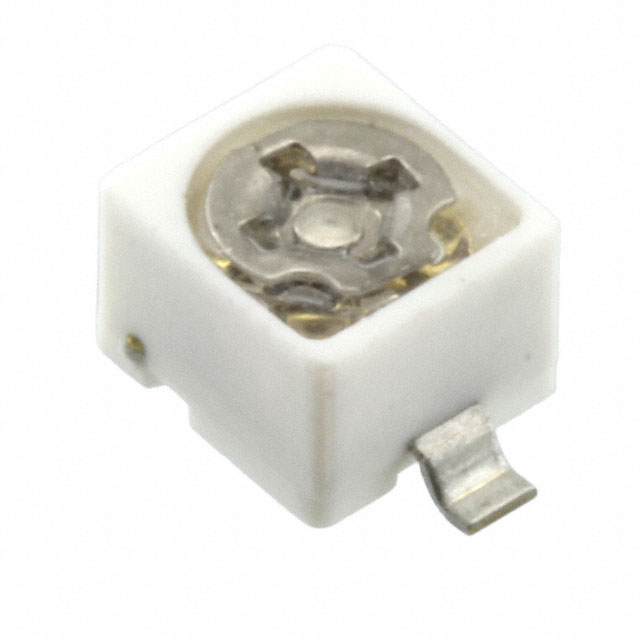

TZB4Z100BB10B00

Obsolete

Murata Power Solutions Inc.

CAP TRIMMER 3-10PF 100V SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAP TRIMMER 3-10PF 100V SMD

Technical Specifications

Parameters and characteristics for this part

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Voltage - Rated	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Q @ Freq	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance Range [Max]	Capacitance Range [Min]	Mounting Type	Adjustment Type	Features
Murata Power Solutions Inc. TZB4Z100BB10B00	3.2 mm	0.126 in	Ceramic	100 V	4.5 mm	0.177 in	4 mm	0.157 in	1 MHz 500	-25 °C	85 °C	10 pF	3 pF	Surface Mount	Top	General Purpose
Murata Power Solutions Inc. TZB4Z100AB10B00	3.2 mm	0.126 in	Ceramic	100 V	4.5 mm	0.177 in	4 mm	0.157 in	1 MHz 500	-25 °C	85 °C	10 pF	3 pF	Surface Mount	Top	General Purpose
Murata Power Solutions Inc. TZB4Z100EB10R00	3.2 mm	0.126 in	Ceramic	100 V	4.5 mm	0.177 in	4 mm	0.157 in	1 MHz 500	-25 °C	85 °C	10 pF	3 pF	Surface Mount	Bottom Adjustment	General Purpose
Murata Power Solutions Inc. TZB4Z100AA10B00	3.2 mm	0.126 in	Ceramic	100 V	4.5 mm	0.177 in	4 mm	0.157 in	1 MHz 500	-25 °C	85 °C	10 pF	3 pF	Surface Mount	Top	General Purpose
Murata Power Solutions Inc. TZB4Z100BA10B00	3.2 mm	0.126 in	Ceramic	100 V	4.5 mm	0.177 in	4 mm	0.157 in	1 MHz 500	-25 °C	85 °C	10 pF	3 pF	Surface Mount	Top	General Purpose
Murata Power Solutions Inc. TZB4Z100AB10R00	3.2 mm	0.126 in	Ceramic	100 V	4.5 mm	0.177 in	4 mm	0.157 in	1 MHz 500	-25 °C	85 °C	10 pF	3 pF	Surface Mount	Top	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 ~ 10pF Trimmer Capacitor 100 V Top Surface Mount
