TZB4Z100 Series

Catalog

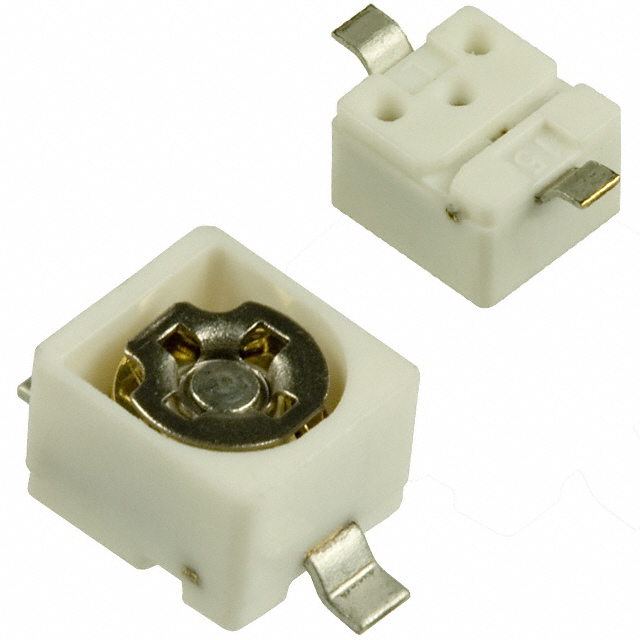

CAP TRIMMER 3-10PF 100V SMD

Part	Operating Temperature (Max)	Operating Temperature (Min)	Q	Size / Dimension Length	Size / Dimension Width	Dielectric Material	Mounting Type	Capacitance Range (Min)	Capacitance Range (Max)	Features	Height - Seated (Max)	Voltage - Rated	Adjustment Type
Murata Electronics TZB4Z100BB10B00	85 °C	-25 °C	500	0.177 in	0.157 in	Ceramic	Surface Mount	3 pF	10 pF	General Purpose	0.126 in	100 VAC/DC	Top
Murata Electronics TZB4Z100AB10B00	85 °C	-25 °C	500	0.177 in	0.157 in	Ceramic	Surface Mount	3 pF	10 pF	General Purpose	0.126 in	100 VAC/DC	Top
Murata Electronics TZB4Z100BB10R00	85 °C	-25 °C	500	0.177 in	0.157 in	Ceramic	Surface Mount	3 pF	10 pF	General Purpose	0.126 in	100 VAC/DC	Top
Murata Electronics TZB4Z100EB10R00	85 °C	-25 °C	500	0.177 in	0.157 in	Ceramic	Surface Mount	3 pF	10 pF	General Purpose	0.126 in	100 VAC/DC	Bottom Adjustment
Murata Electronics TZB4Z100AA10B00	85 °C	-25 °C	500	0.177 in	0.157 in	Ceramic	Surface Mount	3 pF	10 pF	General Purpose	0.126 in	100 VAC/DC	Top
Murata Electronics TZB4Z100BA10B00	85 °C	-25 °C	500	0.177 in	0.157 in	Ceramic	Surface Mount	3 pF	10 pF	General Purpose	0.126 in	100 VAC/DC	Top
Murata Electronics TZB4Z100AB10R00	85 °C	-25 °C	500	0.177 in	0.157 in	Ceramic	Surface Mount	3 pF	10 pF	General Purpose	0.126 in	100 VAC/DC	Top
Murata Electronics TZB4Z100AA10R00	85 °C	-25 °C	500	0.177 in	0.157 in	Ceramic	Surface Mount	3 pF	10 pF	General Purpose	0.126 in	100 VAC/DC	Top
