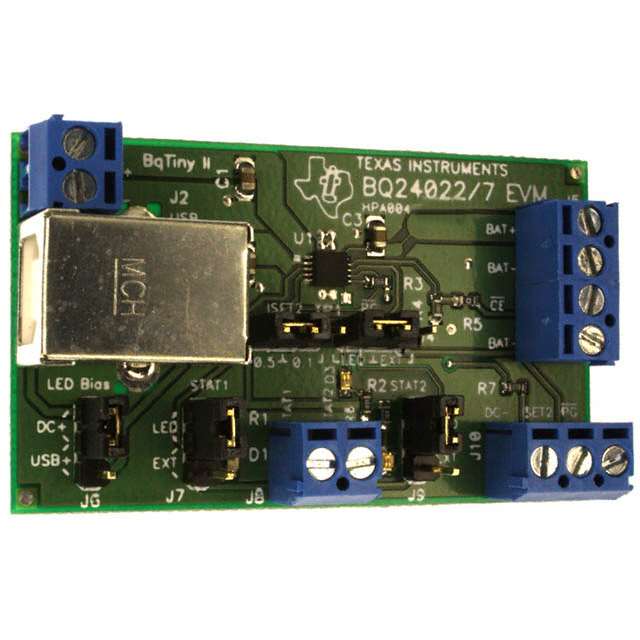

BQ24022EVM
ActiveEVALUATION MODULE FOR BQ24022
Deep-Dive with AI
Search across all available documentation for this part.
BQ24022EVM
ActiveEVALUATION MODULE FOR BQ24022
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24022EVM | BQ24022 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 500 mA |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Temperature |
| Function | Battery Charger | Battery Charger |
| Interface | - | USB |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 125 ¯C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 10-VFDFN Exposed Pad |
| Primary Attributes | Li-Ion / Li-Pol (1 Cell) | Li-Ion / Li-Pol (1 Cell) |
| Programmable Features | - | Current, Timer |
| Secondary Attributes | Safety Timer, Cell Temperature Monitoring, Precharge Conditioning, Status Output | Safety Timer, Cell Temperature Monitoring, Precharge Conditioning, Status Output |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-VSON (3x3) |
| Type | Power Management | Power Management |
| Utilized IC / Part | bq24022 | bq24022 |
| Voltage - Supply (Max) | - | 6.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.74 | |
BQ24022 Series
Dual input USB/AC Adpater 1-cell Li-ion battery charger w/charge enable & power Good in QFN-11
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Cells | Charge Current - Max [Max] | Interface | Voltage - Supply (Max) [Max] | Programmable Features | Package / Case | Battery Pack Voltage | Mounting Type | Supplier Device Package | Fault Protection | Current - Charging | Battery Chemistry | Supplied Contents | Primary Attributes | Utilized IC / Part | Secondary Attributes | Type | Embedded | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24022DRCR | 125 ¯C | -40 °C | 1 | 500 mA | USB | 6.5 V | Current, Timer | 10-VFDFN Exposed Pad | 4.2 V | Surface Mount | 10-VSON (3x3) | Over Temperature | Constant - Programmable | Lithium Ion/Polymer | |||||||
Texas Instruments BQ24022EVM | Board(s) | Li-Ion / Li-Pol (1 Cell) | bq24022 | Cell Temperature Monitoring, Precharge Conditioning, Safety Timer, Status Output | Power Management | Battery Charger |
Description
General part information
BQ24022 Series
The bqTINY-II series are highly-integrated, flexible Li-Ion linear charge and system power management devices for space-limited charger applications. In a single monolithic device, the bqTINY-II offers integrated USB-port and ac-adapter supply management with autonomous power-source selection, power-FET and current-sensor interfaces, high-accuracy current and voltage regulation, charge status, and charge termination.
The bqTINY-II automatically selects the USB-port or the ac-adapter as the power source for the system. In the USB configuration, the host can select from two preset charge rates of 100 mA or 500 mA. In the ac-adapter configuration, an external resistor sets the system or charge current.
The bqTINY-II charges the battery in three phases: conditioning, constant current, and constant voltage. Charge is terminated based on minimum current. An internal charge timer provides a backup safety for charge termination. The bqTINY-II automatically restarts the charge if the battery voltage falls below an internal threshold. The bqTINY-II automatically enters sleep mode when both supplies are removed.
