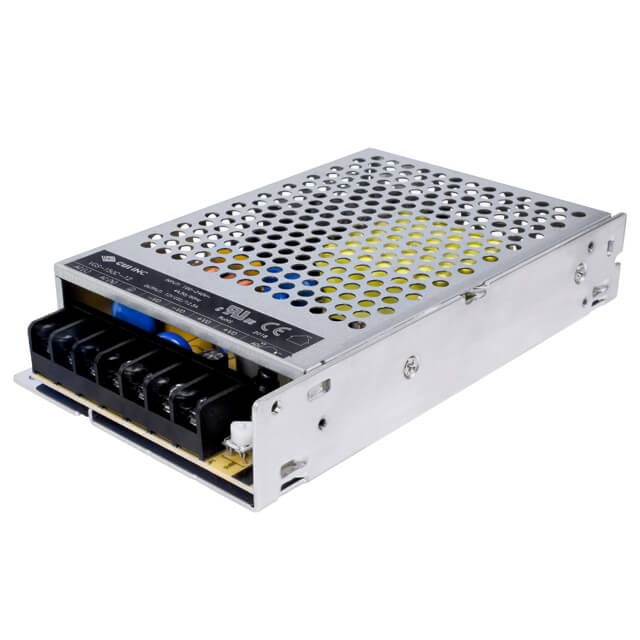

VGS-150C-12

CUI Inc.

AC/DC CONVERTER 12V 150W

Deep-Dive with AI

Search across all available documentation for this part.

VGS-150C-12

CUI Inc.

AC/DC CONVERTER 12V 150W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VGS-150C-12

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	12.5 A
Efficiency	86 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	150 W
Size / Dimension [x]	6.26 in
Size / Dimension [x]	159 mm
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Standard Number	60335-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC, 373 VDC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

VGS-150 Series

Part	Voltage - Isolation	Mounting Type	Features	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Standard Number	Type	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Approval Agency	Efficiency	Applications
CUI Inc. VGS-150C-12-B	4000 V	Chassis Mount	Adjustable Output Universal Input	1	70 °C	-30 °C	150 W	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	12 V	60335-1 62368-1	Conformal Coated Enclosed	85 VAC 120 VDC	264 VAC 373 VDC	12.5 A	CE cURus	86 %	Household Appliances ITE (Commercial)
CUI Inc. VGS-150B-48	1.5 kV	Chassis Mount	Adjustable Output	1	70 °C	-20 °C	154 W	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	48 V	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Enclosed	88 VAC 176 VAC	132 VAC 264 VAC	3.2 A	CB Scheme EN FCC IEC SIQ TUV UL	88 %	ITE (Commercial)
CUI Inc. VGS-150B-12	1.5 kV	Chassis Mount	Adjustable Output	1	70 °C	-20 °C	150 W	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	12 V	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Enclosed	88 VAC 176 VAC	132 VAC 264 VAC	12.5 A	CB Scheme EN FCC IEC SIQ TUV UL	86 %	ITE (Commercial)
CUI Inc. VGS-150W-48-A	4000 V	Chassis Mount		1	70 °C	-30 °C	158 W	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	48 V	60335-1 62368-1	Enclosed			3.3 A	CE cURus	89 %	Household Appliances ITE (Commercial)
CUI Inc. VGS-150W-48-B	4000 V	Chassis Mount		1	70 °C	-30 °C	150 W	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	48 V	60335-1 62368-1	Conformal Coated Enclosed			3.3 A	CE cURus	89 %	Household Appliances ITE (Commercial)
CUI Inc. VGS-150C-12	4000 V	Chassis Mount	Adjustable Output Universal Input	1	70 °C	-30 °C	150 W	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	12 V	60335-1 62368-1	Enclosed	85 VAC 120 VDC	264 VAC 373 VDC	12.5 A	CE cURus	86 %	Household Appliances ITE (Commercial)
CUI Inc. VGS-150B-24	1.5 kV	Chassis Mount	Adjustable Output	1	70 °C	-20 °C	156 W	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	24 V	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Enclosed	88 VAC 176 VAC	132 VAC 264 VAC		CB Scheme EN FCC IEC SIQ TUV UL	88 %	ITE (Commercial)
CUI Inc. VGS-150W-12-A	4000 V	Chassis Mount		1	70 °C	-30 °C	150 W	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	12 V	60335-1 62368-1	Enclosed			12.5 A	CE cURus	86 %	Household Appliances ITE (Commercial)
CUI Inc. VGS-150C-24-A	4000 V	Chassis Mount	Adjustable Output Universal Input	1	70 °C	-30 °C	156 W	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	24 V	60335-1 62368-1	Enclosed	85 VAC 120 VDC	264 VAC 373 VDC		CE cURus	88 %	Household Appliances ITE (Commercial)
CUI Inc. VGS-150C-15-A	4000 V	Chassis Mount	Adjustable Output Universal Input	1	70 °C	-30 °C	150 W	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	15 V	60335-1 62368-1	Enclosed	85 VAC 120 VDC	264 VAC 373 VDC	10 A	CE cURus	87 %	Household Appliances ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 24.93
		5	$ 23.49
		10	$ 22.89
		25	$ 22.13
		50	$ 21.57

Description

General part information

VGS-150 Series

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 373 VDC Input
