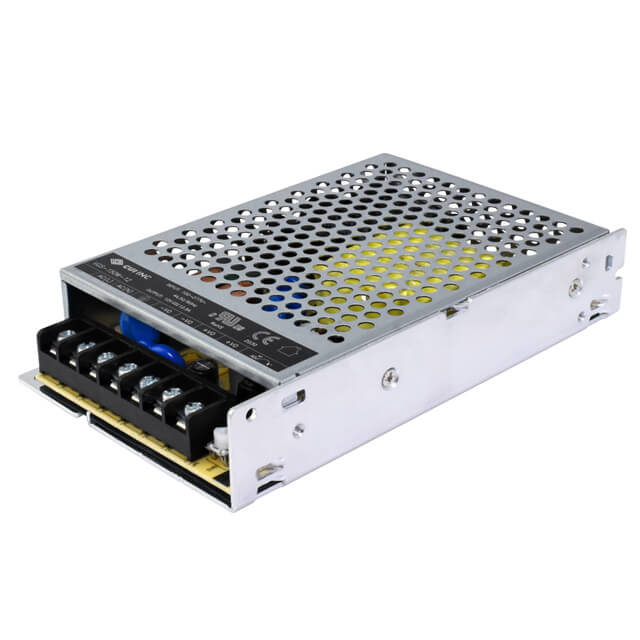

VGS-150W-48-B

NRND

CUI Inc.

AC/DC CONVERTER 48V 150W

VGS-150W-48-B

NRND

CUI Inc.

AC/DC CONVERTER 48V 150W

Description Specifications Series Pricing CAD Documents

Description

General part information

VGS-150 Series

Enclosed, Conformal Coated AC DC Converters 1 Output 48V 85 ~ 305 VAC, 120 ~ 431 VDC Input

Technical Specifications

Parameters and characteristics for this part

Specification	VGS-150W-48-B

Applications	ITE (Commercial), Household Appliances
Approval Agency	cURus, CE
Current - Output 1	3.3 A
Efficiency	89 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	150 W
Size / Dimension Height	1.18 in
Size / Dimension Length	6.26 in
Size / Dimension Width	3.82 in
Standard Number	60335-1, 62368-1
Type	Enclosed, Conformal Coated
Voltage - Input (AC) Maximum	305 VAC
Voltage - Input (AC) Minimum	85 VAC
Voltage - Input (DC) Maximum	431 VDC
Voltage - Input (DC) Minimum	120 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	48 V

VGS-150 Series

Part	Features	Voltage - Output 1	Approval Agency	Number of Outputs	Mounting Type	Type	Applications	Efficiency	Power (Watts)	Standard Number	Voltage - Input (DC) Maximum	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Minimum	Voltage - Isolation	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output 1	Voltage - Input (Range 2) Maximum	Voltage - Input (Range 1) Maximum	Voltage - Input (Range 1) Minimum	Voltage - Input (Range 2) Minimum
CUI Inc. VGS-150C-12-B	Adjustable Output Universal Input	12 V	CE cURus	1	Chassis Mount	Conformal Coated Enclosed	Household Appliances ITE (Commercial)	86 %	150 W	60335-1 62368-1	373 VDC	264 V	85 VAC	120 V	4000 Vpk	3.82 in	1.18 in	6.26 in	70 °C	-30 °C	12.5 A
CUI Inc. VGS-150B-48	Adjustable Output	48 V	CB Scheme EN FCC IEC SIQ TUV UL	1	Chassis Mount	Enclosed	ITE (Commercial)	88 %	154 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3					1500 Vrns	3.82 in	1.18 in	6.26 in	70 °C	-20 °C	3.2 A	264 VAC	132 V	88 V	176 V
CUI Inc. VGS-150B-12	Adjustable Output	12 V	CB Scheme EN FCC IEC SIQ TUV UL	1	Chassis Mount	Enclosed	ITE (Commercial)	86 %	150 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3					1500 Vrns	3.82 in	1.18 in	6.26 in	70 °C	-20 °C	12.5 A	264 VAC	132 V	88 V	176 V
CUI Inc. VGS-150W-48-A		48 V	CE cURus	1	Chassis Mount	Enclosed	Household Appliances ITE (Commercial)	89 %	158 W	60335-1 62368-1	431 VDC	305 VAC	85 VAC	120 V	4000 Vpk	3.82 in	1.18 in	6.26 in	70 °C	-30 °C	3.3 A
CUI Inc. VGS-150W-48-B		48 V	CE cURus	1	Chassis Mount	Conformal Coated Enclosed	Household Appliances ITE (Commercial)	89 %	150 W	60335-1 62368-1	431 VDC	305 VAC	85 VAC	120 V	4000 Vpk	3.82 in	1.18 in	6.26 in	70 °C	-30 °C	3.3 A
CUI Inc. VGS-150C-12	Adjustable Output Universal Input	12 V	CE cURus	1	Chassis Mount	Enclosed	Household Appliances ITE (Commercial)	86 %	150 W	60335-1 62368-1	373 VDC	264 V	85 VAC	120 V	4000 Vpk	3.82 in	1.18 in	6.26 in	70 °C	-30 °C	12.5 A
CUI Inc. VGS-150B-24	Adjustable Output	24 V	CB Scheme EN FCC IEC SIQ TUV UL	1	Chassis Mount	Enclosed	ITE (Commercial)	88 %	156 W	55024 55032 Class B 60950-1 61000-3-2 61000-3-3					1500 Vrns	3.82 in	1.18 in	6.26 in	70 °C	-20 °C	6.5 A	264 VAC	132 V	88 V	176 V
CUI Inc. VGS-150W-12-A		12 V	CE cURus	1	Chassis Mount	Enclosed	Household Appliances ITE (Commercial)	86 %	150 W	60335-1 62368-1	431 VDC	305 VAC	85 VAC	120 V	4000 Vpk	3.82 in	1.18 in	6.26 in	70 °C	-30 °C	12.5 A
CUI Inc. VGS-150C-24-A	Adjustable Output Universal Input	24 V	CE cURus	1	Chassis Mount	Enclosed	Household Appliances ITE (Commercial)	88 %	156 W	60335-1 62368-1	373 VDC	264 V	85 VAC	120 V	4000 Vpk	3.82 in	1.18 in	6.26 in	70 °C	-30 °C	6.5 A
CUI Inc. VGS-150C-15-A	Adjustable Output Universal Input	15 V	CE cURus	1	Chassis Mount	Enclosed	Household Appliances ITE (Commercial)	87 %	150 W	60335-1 62368-1	373 VDC	264 V	85 VAC	120 V	4000 Vpk	3.82 in	1.18 in	6.26 in	70 °C	-30 °C	10 A
