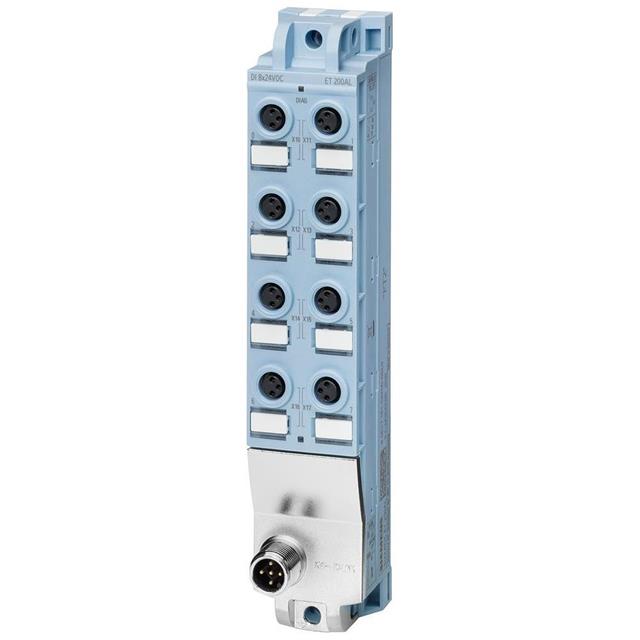

6ES71415BF000BL0

Active

Siemens

ET 200AL. IO-LINK. DI 8X24VDC. 8

Search across all available documentation for this part.

Active

Siemens

ET 200AL. IO-LINK. DI 8X24VDC. 8

Technical Specifications

Parameters and characteristics for this part

Specification	6ES71415BF000BL0

Ingress Protection	IP67, IP65
Mounting Type	DIN Rail
Number of Inputs and Type [custom]	8
Number of Inputs and Type [custom]	Digital
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-30 ░C
Termination Style	Circular
Type	Link Module
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	18

Part	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Ingress Protection	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Mounting Type
Siemens 6ES71415BF000BA0	8	Digital	IP65 IP67	Input Module	55 °C	-30 ░C	20.4 V	28.8 VDC	Circular	DIN Rail
Siemens 6ES71415AF000BA0	8	Digital	IP65 IP67	Input Module	55 °C	-30 ░C	20.4 V	28.8 VDC	Circular	DIN Rail
Siemens 6ES71415BF000BL0	8	Digital	IP65 IP67	Link Module	55 °C	-30 ░C	18	30 VDC	Circular	DIN Rail
Siemens 6ES71415AH000BA0	16	Digital	IP65 IP67	Input Module	55 °C	-30 ░C	20.4 V	28.8 VDC	Circular	DIN Rail
Siemens 6ES71415AH000BL0	16	Digital	IP65 IP67	Link Module	55 °C	-30 ░C	18	30 VDC	Circular	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 189.23

General part information

Link Module DIN Rail 18 ~ 30VDC

Technical documentation and resources
