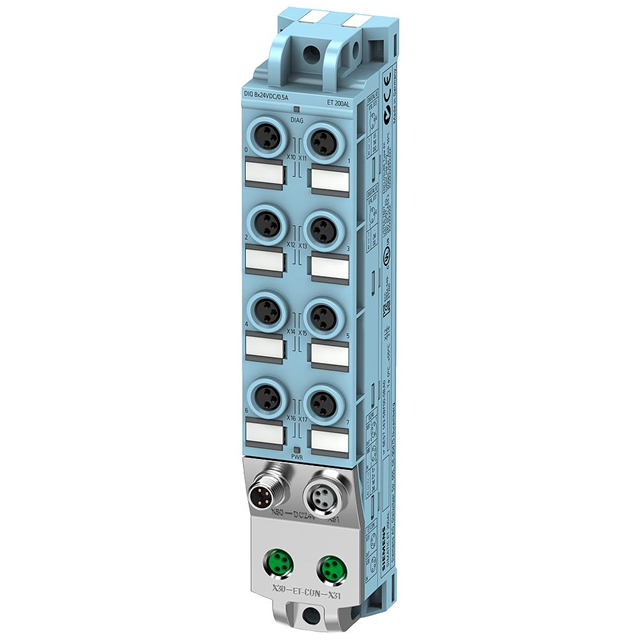

6ES71415BF000BA0
ActiveSiemens
ET 200AL, DI 8X24VDC, 8XM8
Deep-Dive with AI
Search across all available documentation for this part.
6ES71415BF000BA0
ActiveSiemens
ET 200AL, DI 8X24VDC, 8XM8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6ES71415BF000BA0 |
|---|---|
| Ingress Protection | IP67, IP65 |
| Mounting Type | DIN Rail |
| Number of Inputs and Type [custom] | 8 |
| Number of Inputs and Type [custom] | Digital |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -30 ░C |
| Termination Style | Circular |
| Type | Input Module |
| Voltage - Supply [Max] | 28.8 VDC |
| Voltage - Supply [Min] | 20.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 243.88 | |
| 10 | $ 235.47 | |||
| 25 | $ 231.26 | |||
Description
General part information
6ES71415 Series
Input Module DIN Rail 20.4 ~ 28.8VDC
