896-048-521-212
ActiveEDAC Inc.

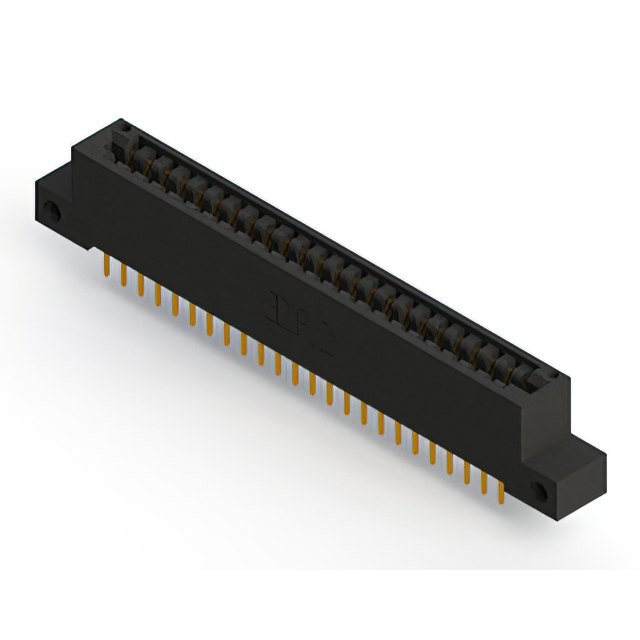

CONN EDGE DUAL FMALE 48POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-048-521-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 48POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-048-521-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-048 Series
...
| Part | Number of Rows | Number of Positions/Bay/Row [custom] | Color | Contact Finish Thickness | Contact Finish Thickness | Termination | Material - Insulation | Termination Rows | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Mounting Type | Pitch [x] | Pitch [x] | Number of Positions | Contact Finish | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 24 | Black | 10 Áin | 0.25 Ám | Wire Wrap | Polyphenylene Sulfide (PPS) | 2 | Copper Alloy | 125 °C | -40 °C | Non Specified - Dual Edge | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Dual | Through Hole | 0.125 in | 3.18 mm | 48 | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||
EDAC Inc. | 2 | 24 | Black | 10 Áin | 0.25 Ám | Wire Wrap | Polyphenylene Sulfide (PPS) | 2 | Copper Alloy | 125 °C | -40 °C | Non Specified - Dual Edge | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Dual | Through Hole | 0.125 in | 3.18 mm | 48 | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||
EDAC Inc. | 2 | 24 | Black | 10 Áin | 0.25 Ám | Wire Wrap | Polyphenylene Sulfide (PPS) | 2 | Copper Alloy | 125 °C | -40 °C | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Dual | Through Hole | 0.125 in | 3.18 mm | 48 | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||||
EDAC Inc. | 1 | 48 | Black | 10 Áin | 0.25 Ám | Solder | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 125 °C | -40 °C | Non Specified - Single Edge | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Single | Through Hole | 0.125 in | 3.18 mm | 48 | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||
EDAC Inc. | 1 | 48 | Black | 10 Áin | 0.25 Ám | Wire Wrap | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 125 °C | -40 °C | Non Specified - Single Edge | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Single | Through Hole | 0.125 in | 3.18 mm | 48 | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||
EDAC Inc. | 1 | 48 | Black | 10 Áin | 0.25 Ám | Solder | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 125 °C | -40 °C | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Single | Through Hole Right Angle | 0.125 in | 3.18 mm | 48 | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||||
EDAC Inc. | 2 | 24 | Black | 10 Áin | 0.25 Ám | Solder | Polyphenylene Sulfide (PPS) | 2 | Copper Alloy | 125 °C | -40 °C | Non Specified - Dual Edge | Dual | Through Hole | 0.125 in | 3.18 mm | 48 | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | ||||||
EDAC Inc. | 2 | 24 | Black | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Polyphenylene Sulfide (PPS) | 2 | Copper Alloy | 125 °C | -40 °C | Non Specified - Dual Edge | Dual | Board Edge Straddle Mount | 0.125 in | 3.18 mm | 48 | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Card Extender | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2 | 24 | Black | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Polyphenylene Sulfide (PPS) | 2 | Copper Alloy | 125 °C | -40 °C | Non Specified - Dual Edge | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Dual | Board Edge Straddle Mount | 0.125 in | 3.18 mm | 48 | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Card Extender | ||
EDAC Inc. | 2 | 24 | Black | 10 Áin | 0.25 Ám | Solder | Polyphenylene Sulfide (PPS) | 2 | Copper Alloy | 125 °C | -40 °C | Non Specified - Dual Edge | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Dual | Through Hole | 0.125 in | 3.18 mm | 48 | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
896-048 Series
48 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
