896-048-540-204

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS HIGH TEMP CARD EDGE CONNECTORS

896-048-540-204

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS HIGH TEMP CARD EDGE CONNECTORS

Description Specifications Series Pricing CAD Documents

Description

General part information

896 Series

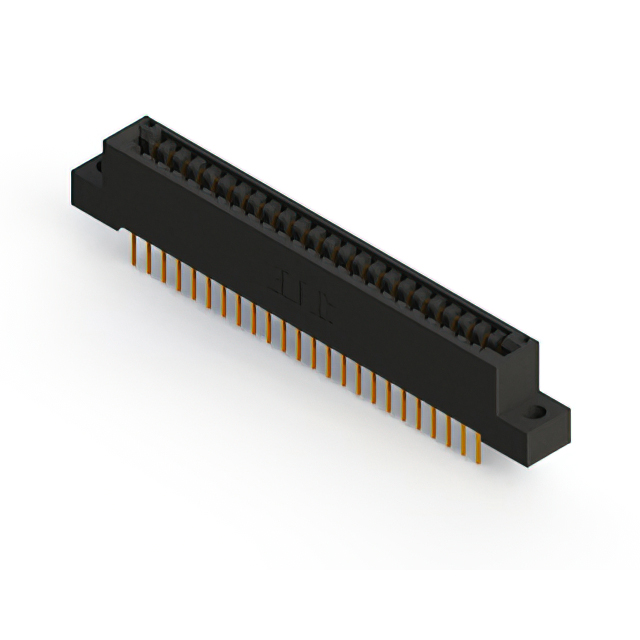

48 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	896-048-540-204

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Top Opening, Flush Mount
Flange Feature Diameter	0.156 in
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole
Number of Positions	48, 24 pos
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.125 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2 rows

896 Series

...

Part	Flange Feature	Operating Temperature (Max)	Operating Temperature (Min)	Card Thickness (Min)	Card Thickness (Max)	Termination	Color	Number of Positions	Read Out	Contact Material	Contact Finish	Mounting Type	Number of Rows	Contact Finish Thickness	Card Type	Contact Type	Gender	Pitch	Material - Insulation	Termination Rows	Flange Feature Diameter	Features
EDAC Inc. 896-066-500-207	Flush Mount M3 Threaded Insert Top Opening	125 °C	-40 °C	0.054 in	0.07 in	Solder Eyelet(s)	Black	33 66	Dual	Copper Alloy	Gold	Through Hole	2	10 Ąin	Dual Edge Non Specified	Cantilever	Female	0.125 in	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 896-022-541-108	4-40 Flush Mount Threaded Insert Top Opening	125 °C	-40 °C	0.054 in	0.07 in	Wire Wrap	Black	22	Single	Copper Alloy	Gold	Through Hole	1	10 Ąin	Non Specified Single Edge	Cantilever	Female	0.125 in	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 896-080-558-202	Flush Mount Top Opening Unthreaded	125 °C	-40 °C	0.054 in	0.07 in	Solder	Black	40 80	Dual	Copper Alloy	Gold	Right Angle Through Hole	2	10 Ąin	Dual Edge Non Specified	Cantilever	Female	0.125 in			0.128 in
EDAC Inc. 896-038-560-812	Side Mount Opening Unthreaded	125 °C	-40 °C	0.054 in	0.07 in	Solder	Black	19 38	Dual	Copper Alloy	Gold	Board Edge Straddle Mount	2	10 Ąin	Dual Edge Non Specified	Cantilever	Female	0.125 in	Polyphenylene Sulfide PPS	2 rows	0.128 in	Card Extender
EDAC Inc. 896-048-540-204	Flush Mount Top Opening Unthreaded	125 °C	-40 °C	0.054 in	0.07 in	Wire Wrap	Black	24 pos 48	Dual	Copper Alloy	Gold	Through Hole	2	10 Ąin	Dual Edge Non Specified	Cantilever	Female	0.125 in	Polyphenylene Sulfide PPS	2 rows	0.156 in
EDAC Inc. 896-015-520-612	Side Mount Opening Unthreaded	125 °C	-40 °C	0.054 in	0.07 in	Solder	Black	15	Single	Copper Alloy	Gold	Through Hole	1	10 Ąin	Non Specified Single Edge	Cantilever	Female	0.125 in	Polyphenylene Sulfide PPS	1 rows	0.128 in
EDAC Inc. 896-020-521-103	Floating Bobbin Flush Mount	125 °C	-40 °C	0.054 in	0.07 in	Solder	Black	20	Single	Copper Alloy	Gold	Through Hole	1	10 Ąin	Non Specified Single Edge	Cantilever	Female	0.125 in			0.116 in
EDAC Inc. 896-072-520-808	4-40 Threaded Insert Top Mount Opening	125 °C	-40 °C	0.054 in	0.07 in	Solder	Black	36 72	Dual	Copper Alloy	Gold	Through Hole	2	10 Ąin	Dual Edge Non Specified	Cantilever	Female	0.125 in	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 896-010-558-603	Floating Bobbin Top Mount Opening	125 °C	-40 °C	0.054 in	0.07 in	Solder	Black	10	Single	Copper Alloy	Gold	Right Angle Through Hole	1	10 Ąin	Non Specified Single Edge	Cantilever	Female	0.125 in			0.116 in
EDAC Inc. 896-088-526-808	4-40 Threaded Insert Top Mount Opening	125 °C	-40 °C	0.054 in	0.07 in	Solder	Black	44 88	Dual	Copper Alloy	Gold	Through Hole	2	10 Ąin	Dual Edge Non Specified	Cantilever	Female	0.125 in	Polyphenylene Sulfide PPS	2 rows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

896-048-540-204 | Datasheet
