A99100-069

Active

Omnetics

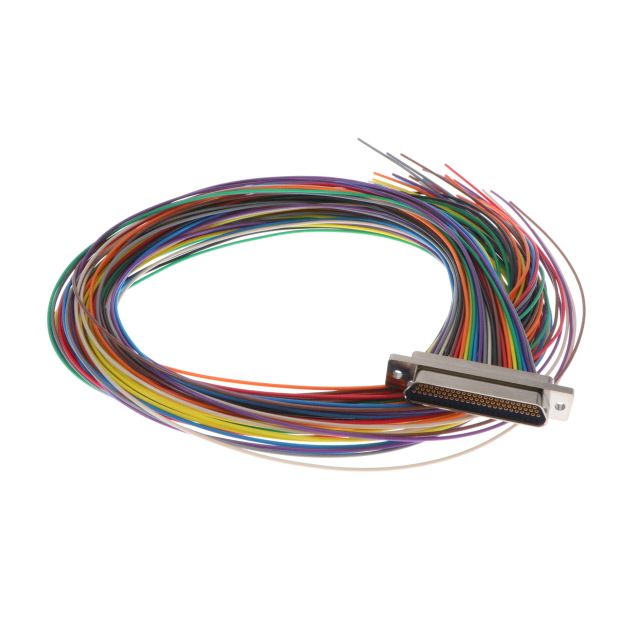

CABLE ASSY D-MIC-D 69P 457.2MM

Search across all available documentation for this part.

Active

Omnetics

CABLE ASSY D-MIC-D 69P 457.2MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 1.50' (457.20mm) Receptacle, Female Sockets to Individual Wire Leads Unshielded

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	A99100-069	MMDS-069 Series

1st Connector	Receptacle, Female Sockets	Receptacle, Female Sockets
2nd Connector	Individual Wire Leads	Individual Wire Leads
Color	Multiple, Individual	Multiple, Individual
Connector Style	-	Micro-D, D-Type
Connector Type	-	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	-	Stamped
Contact Material	-	Copper Alloy
Contact Type	-	Signal
Current Rating (Amps)	-	3 A
Dielectric Material	-	Thermoplastic
Flange Feature	-	Housing/Shell (Unthreaded)
Length [x]	457.2 mm	457.2 mm
Length [x]	1.5 ft	1.5 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	69	69
Number of Rows	-	3
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Shell Material, Finish	-	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout	-	0.05
Shell Size, Connector Layout	-	0.05
Shielding	Unshielded	Unshielded
Type	D-Type, Micro-D	D-Type, Micro-D

CONN MICRO-D RCPT 69POS SLDR CUP

Part	Dielectric Material	Current Rating (Amps)	Contact Type	Contact Finish	Connector Style	Contact Form	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Contact Material	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Flange Feature	Color	2nd Connector	Length [x]	Length [x]	Shielding	1st Connector	Type
Omnetics A99000-069	Thermoplastic	3 A	Signal	Gold	D-Type, Micro-D	Stamped	69	50 µin	1.27 µm	Aluminum, Electroless, Nickel Plated	Copper Alloy	3	0.05	0.05	Receptacle, Female Sockets	-55 °C	125 °C	Free Hanging (In-Line)	Housing/Shell (Unthreaded)
Omnetics A99100-069				Gold			69	50 µin	1.27 µm											Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft	Unshielded	Female Sockets, Receptacle	D-Type, Micro-D
