A99000-069

Active

Omnetics

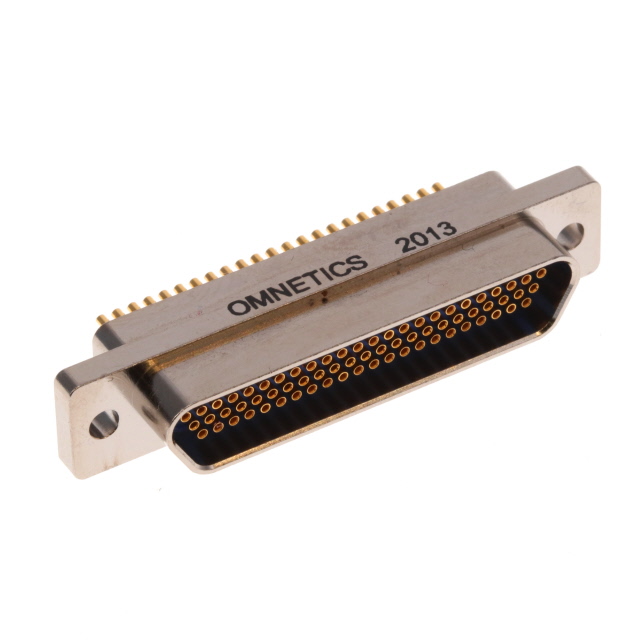

CONN MICRO-D RCPT 69POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D RCPT 69POS SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A99000-069	MMDS-069 Series

1st Connector	-	Receptacle, Female Sockets
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	69	69
Number of Rows	3	3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CONN MICRO-D RCPT 69POS SLDR CUP

Part	Dielectric Material	Current Rating (Amps)	Contact Type	Contact Finish	Connector Style	Contact Form	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Contact Material	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Flange Feature	Color	2nd Connector	Length [x]	Length [x]	Shielding	1st Connector	Type
Omnetics A99000-069	Thermoplastic	3 A	Signal	Gold	D-Type, Micro-D	Stamped	69	50 µin	1.27 µm	Aluminum, Electroless, Nickel Plated	Copper Alloy	3	0.05	0.05	Receptacle, Female Sockets	-55 °C	125 °C	Free Hanging (In-Line)	Housing/Shell (Unthreaded)
Omnetics A99100-069				Gold			69	50 µin	1.27 µm											Individual, Multiple	Individual Wire Leads	457.2 mm	1.5 ft	Unshielded	Female Sockets, Receptacle	D-Type, Micro-D
