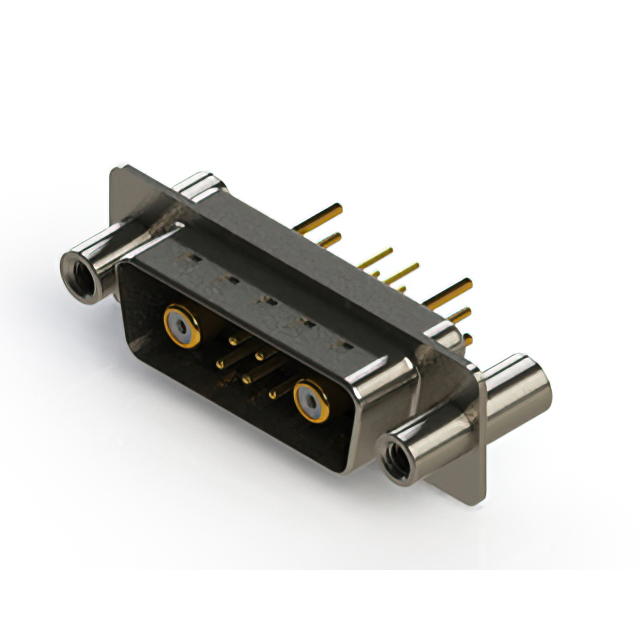

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DA-7W2, PLUG, 7 CONTACTS, 5 SIGNAL, 2 POWER/COAX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

627-7W2-624-7NC

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DA-7W2, PLUG, 7 CONTACTS, 5 SIGNAL, 2 POWER/COAX

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-7W2-624-7NC

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature [custom]	M3
Flange Feature [custom]	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder
Voltage Rating	125 VDC

627-7W2 Series

...

Part	Features	Voltage Rating	Mounting Type	Material Flammability Rating	Contact Finish	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Number of Positions [custom]	Shell Size, Connector Layout	Contact Material	Contact Type	Connector Type	Flange Feature	Color	Termination	Shell Material, Finish	Dielectric Material	Current Rating (Amps)	Number of Rows	Contact Finish Thickness	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 627-7W2-224-2N6	Board Lock Grounding Indents Shielded	125 VDC	Panel Mount Through Hole	UL94 V-0	Gold	Combo D-Sub	-55 °C	125 °C	7	2	2 (DA A) - 7W2	Copper Alloy	Signal and Power	Male Pins Plug	4-40	Black	Solder	Nickel Plated Steel	Polyester Thermoplastic	5 A 20 A	2	Flash
EDAC Inc. 627-7W2-622-1N2	Grounding Indents Shielded	125 VDC	Free Hanging (In-Line)	UL94 V-0	Gold	Combo D-Sub	-55 °C	125 °C	7	2	2 (DA A) - 7W2	Copper Alloy	Signal and Power	Male Pins Plug	4-40 Board Side	Black		Nickel Plated Steel	Polyester Thermoplastic		2		10A 5A	0.76 Ám	30 Áin
EDAC Inc. 627-7W2-224-3T5	Board Lock Grounding Indents Shielded	125 VDC	Through Hole	UL94 V-0	Gold	Combo D-Sub	-55 °C	125 °C	7	2	2 (DA A) - 7W2	Copper Alloy	Signal and Power	Male Pins Plug	4-40 Board Side	Black	Solder		Polyester Thermoplastic	5 A 30 A	2	Flash
EDAC Inc. 627-7W2-624-1NE	Board Lock Grounding Indents Shielded	125 VDC	Panel Mount Through Hole	UL94 V-0	Gold	Combo D-Sub	-55 °C	125 °C	7	2	2 (DA A) - 7W2	Copper Alloy	Signal and Power	Male Pins Plug	M3	Black	Solder	Nickel Plated Steel	Polyester Thermoplastic		2		10A 5A	0.76 Ám	30 Áin
EDAC Inc. 627-7W2-624-7NC	Grounding Indents Shielded	125 VDC	Panel Mount Through Hole	UL94 V-0	Gold	Combo D-Sub	-55 °C	125 °C	7		2 (DA A) - 7W2	Copper Alloy	Coax Signal	Male Pins Plug		Black	Solder	Nickel Plated Steel	Polyester Thermoplastic		2			0.76 Ám	30 Áin	2	5	M3	M3
EDAC Inc. 627-7W2-624-7T5	Board Lock Grounding Indents Shielded	125 VDC	Through Hole	UL94 V-0	Gold	Combo D-Sub	-55 °C	125 °C	7		2 (DA A) - 7W2	Copper Alloy	Coax Signal	Male Pins Plug	4-40 Board Side	Black	Solder		Polyester Thermoplastic		2			0.76 Ám	30 Áin	2	5
EDAC Inc. 627-7W2-224-1TD	Board Lock Grounding Indents Shielded	125 VDC	Through Hole	UL94 V-0	Gold	Combo D-Sub	-55 °C	125 °C	7	2	2 (DA A) - 7W2	Copper Alloy	Signal and Power	Male Pins Plug	Board Side (M3)	Black	Solder		Polyester Thermoplastic		2	Flash	10A 5A
EDAC Inc. 627-7W2-224-1N5	Board Lock Grounding Indents Shielded	125 VDC	Through Hole	UL94 V-0	Gold	Combo D-Sub	-55 °C	125 °C	7	2	2 (DA A) - 7W2	Copper Alloy	Signal and Power	Male Pins Plug	4-40 Board Side	Black	Solder	Nickel Plated Steel	Polyester Thermoplastic		2	Flash	10A 5A
EDAC Inc. 627-7W2-224-3N1	Grounding Indents Shielded	125 VDC	Through Hole	UL94 V-0	Gold	Combo D-Sub	-55 °C	125 °C	7	2	2 (DA A) - 7W2	Copper Alloy	Signal and Power	Male Pins Plug	Housing/Shell (Unthreaded)	Black	Solder	Nickel Plated Steel	Polyester Thermoplastic	5 A 30 A	2	Flash
EDAC Inc. 627-7W2-224-1N3	Grounding Indents Shielded	125 VDC	Panel Mount Through Hole	UL94 V-0	Gold	Combo D-Sub	-55 °C	125 °C	7	2	2 (DA A) - 7W2	Copper Alloy	Signal and Power	Male Pins Plug	4-40 Board Side	Black	Solder	Nickel Plated Steel	Polyester Thermoplastic		2	Flash	10A 5A
