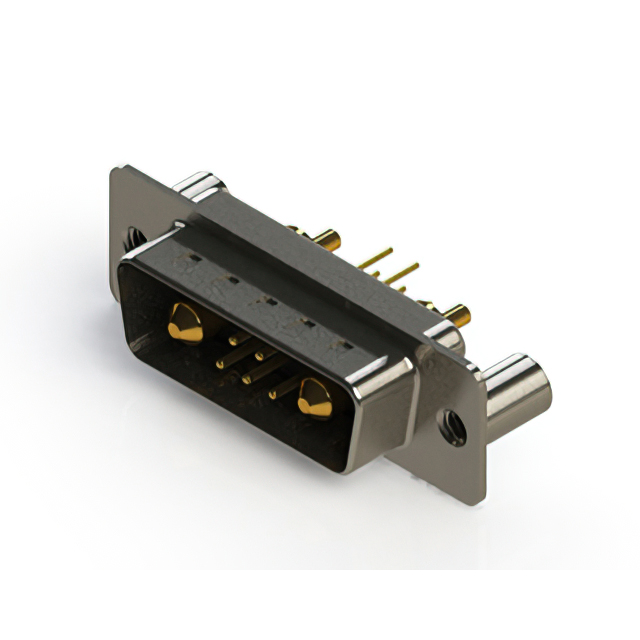

627-7W2-224-1N3
ActiveEDAC Inc.
CONN D-SUB PLUG 7P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
627-7W2-224-1N3
ActiveEDAC Inc.
CONN D-SUB PLUG 7P PNL MNT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 627-7W2-224-1N3 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5A, 10A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Shielded |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 7 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
627-7W2 Series
...
| Part | Features | Voltage Rating | Mounting Type | Material Flammability Rating | Contact Finish | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions [custom] | Number of Positions [custom] | Shell Size, Connector Layout | Contact Material | Contact Type | Connector Type | Flange Feature | Color | Termination | Shell Material, Finish | Dielectric Material | Current Rating (Amps) | Number of Rows | Contact Finish Thickness | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Number of Positions [custom] | Number of Positions [custom] | Flange Feature [custom] | Flange Feature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Board Lock Grounding Indents Shielded | 125 VDC | Panel Mount Through Hole | UL94 V-0 | Gold | Combo D-Sub | -55 °C | 125 °C | 7 | 2 | 2 (DA A) - 7W2 | Copper Alloy | Signal and Power | Male Pins Plug | 4-40 | Black | Solder | Nickel Plated Steel | Polyester Thermoplastic | 5 A 20 A | 2 | Flash | |||||||
EDAC Inc. | Grounding Indents Shielded | 125 VDC | Free Hanging (In-Line) | UL94 V-0 | Gold | Combo D-Sub | -55 °C | 125 °C | 7 | 2 | 2 (DA A) - 7W2 | Copper Alloy | Signal and Power | Male Pins Plug | 4-40 Board Side | Black | Nickel Plated Steel | Polyester Thermoplastic | 2 | 10A 5A | 0.76 Ám | 30 Áin | |||||||
EDAC Inc. | Board Lock Grounding Indents Shielded | 125 VDC | Through Hole | UL94 V-0 | Gold | Combo D-Sub | -55 °C | 125 °C | 7 | 2 | 2 (DA A) - 7W2 | Copper Alloy | Signal and Power | Male Pins Plug | 4-40 Board Side | Black | Solder | Polyester Thermoplastic | 5 A 30 A | 2 | Flash | ||||||||
EDAC Inc. | Board Lock Grounding Indents Shielded | 125 VDC | Panel Mount Through Hole | UL94 V-0 | Gold | Combo D-Sub | -55 °C | 125 °C | 7 | 2 | 2 (DA A) - 7W2 | Copper Alloy | Signal and Power | Male Pins Plug | M3 | Black | Solder | Nickel Plated Steel | Polyester Thermoplastic | 2 | 10A 5A | 0.76 Ám | 30 Áin | ||||||
EDAC Inc. | Grounding Indents Shielded | 125 VDC | Panel Mount Through Hole | UL94 V-0 | Gold | Combo D-Sub | -55 °C | 125 °C | 7 | 2 (DA A) - 7W2 | Copper Alloy | Coax Signal | Male Pins Plug | Black | Solder | Nickel Plated Steel | Polyester Thermoplastic | 2 | 0.76 Ám | 30 Áin | 2 | 5 | M3 | M3 | |||||
EDAC Inc. | Board Lock Grounding Indents Shielded | 125 VDC | Through Hole | UL94 V-0 | Gold | Combo D-Sub | -55 °C | 125 °C | 7 | 2 (DA A) - 7W2 | Copper Alloy | Coax Signal | Male Pins Plug | 4-40 Board Side | Black | Solder | Polyester Thermoplastic | 2 | 0.76 Ám | 30 Áin | 2 | 5 | |||||||
EDAC Inc. | Board Lock Grounding Indents Shielded | 125 VDC | Through Hole | UL94 V-0 | Gold | Combo D-Sub | -55 °C | 125 °C | 7 | 2 | 2 (DA A) - 7W2 | Copper Alloy | Signal and Power | Male Pins Plug | Board Side (M3) | Black | Solder | Polyester Thermoplastic | 2 | Flash | 10A 5A | ||||||||
EDAC Inc. | Board Lock Grounding Indents Shielded | 125 VDC | Through Hole | UL94 V-0 | Gold | Combo D-Sub | -55 °C | 125 °C | 7 | 2 | 2 (DA A) - 7W2 | Copper Alloy | Signal and Power | Male Pins Plug | 4-40 Board Side | Black | Solder | Nickel Plated Steel | Polyester Thermoplastic | 2 | Flash | 10A 5A | |||||||
EDAC Inc. | Grounding Indents Shielded | 125 VDC | Through Hole | UL94 V-0 | Gold | Combo D-Sub | -55 °C | 125 °C | 7 | 2 | 2 (DA A) - 7W2 | Copper Alloy | Signal and Power | Male Pins Plug | Housing/Shell (Unthreaded) | Black | Solder | Nickel Plated Steel | Polyester Thermoplastic | 5 A 30 A | 2 | Flash | |||||||
EDAC Inc. | Grounding Indents Shielded | 125 VDC | Panel Mount Through Hole | UL94 V-0 | Gold | Combo D-Sub | -55 °C | 125 °C | 7 | 2 | 2 (DA A) - 7W2 | Copper Alloy | Signal and Power | Male Pins Plug | 4-40 Board Side | Black | Solder | Nickel Plated Steel | Polyester Thermoplastic | 2 | Flash | 10A 5A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 5.89 | |
Description
General part information
627-7W2 Series
7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
