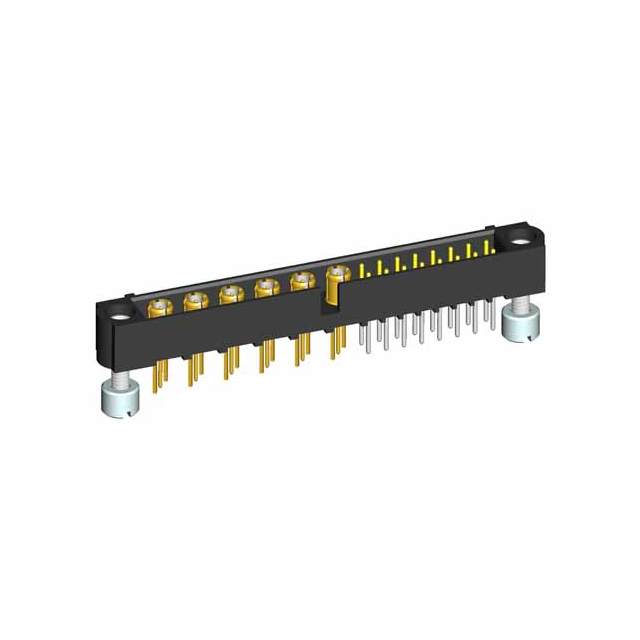

Specification	M80-5T21642M3-06-312-00-000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Post	0.173 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Threaded
Features	Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot
Insulation Color	Black
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Height Options	9.75mm, 7.3mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions (Special)	6 positions
Number of Positions (Standard)	16
Number of Positions (Total)	22
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Position Types	Coax
Row Spacing - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

M80-5T2 Series

Part	Insulation Material	Voltage Rating	Voltage Rating (Type)	Contact Finish Thickness - Mating	Insulation Height	Features	Mounting Type	Termination	Contact Shape	Number of Positions (Normal)	Number of Positions (Power)	Number of Positions (Total)	Contact Length - Post	Contact Type	Current Rating Options	Operating Temperature (Max)	Operating Temperature (Min)	Shrouding	Material Flammability Rating	Number of Positions Loaded	Style	Connector Type	Contact Finish - Post	Fastening Type	Contact Finish - Mating	Contact Material	Insulation Color	Mated Stacking Height	Contact Finish Thickness - Post	Number of Rows	Row Spacing - Mating	Pitch - Mating	Position Types	Number of Positions (Standard)	Number of Positions (Special)	Mated Stacking Height Options	Number of Positions	Current Rating
Harwin Inc. M80-5T20405M3-04-332-00-000	Glass Filled Polyphenylene Sulfide (PPS)	800 V	DC	29.5 Ąin	0.22 in	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Through Hole	Solder	Circular	4	4	8	0.177 in	Male Pin Power	2.2A 20A	125 °C	-55 °C	Shrouded - 4 Wall	UL94 V-0	All	Board Cable/Wire	Header	Gold	Threaded	Gold	Copper Alloy Phosphor Bronze	Black	7.3 mm	29.5 µin
Harwin Inc. M80-5T21642M3-06-312-00-000	Glass Filled Polyphenylene Sulfide (PPS)				0.22 in	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Through Hole	Solder	Circular			22	0.173 in	Male Pin		125 °C	-55 °C	Shrouded - 4 Wall	UL94 V-0	All	Board Cable/Wire	Header		Threaded	Gold		Black			2	0.079 in	0.079 in	Coax	16	6 positions	7.3mm 9.75mm
Harwin Inc. M80-5T21005MF	Glass Filled Polyphenylene Sulfide (PPS)	800 V	DC	29.5 Ąin	0.22 in	Keying Slot Mating Flange Mounting Flange Mounting Hardware Shielded	Through Hole	Solder	Circular				0.173 in	Male Pin		125 °C	-55 °C	Shrouded - 4 Wall	UL94 V-0	All	Board Board or Cable	Header	Gold	Threaded	Gold	Phosphor Bronze	Black		29.5 µin	2	0.079 in	0.079 in				7.3mm 7.8mm	10	2.2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M80-5T21642M3-06-312-00-000 | Datasheet
