M80-5T20405M3-04-332-00-000

Active

Harwin Inc.

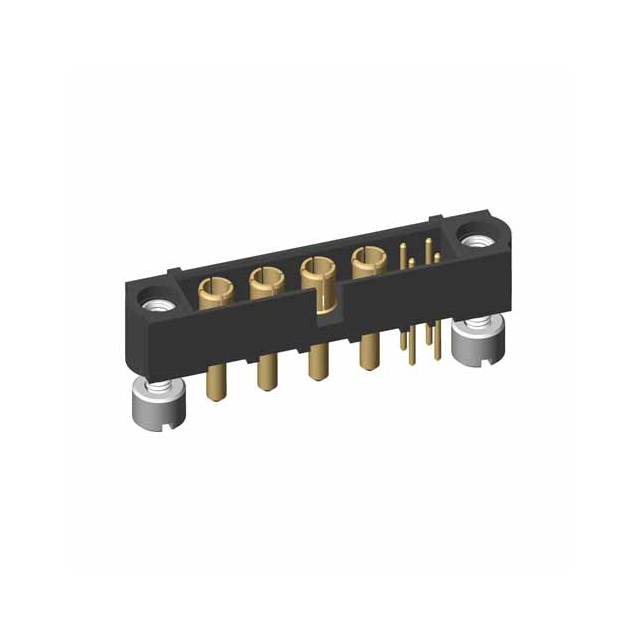

4+4 POS. MALE SIGNAL+POWER VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

4+4 POS. MALE SIGNAL+POWER VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5T20405M3-04-332-00-000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	29.5 µin
Contact Finish Thickness - Post	0.75 µm
Contact Length - Post	0.177 in
Contact Length - Post	4.5 mm
Contact Material	Copper Alloy, Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin, Power
Current Rating (Amps)	20 A, 2.2 A
Features	Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	800 VAC

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Finish - Post	Connector Type	Contact Shape	Style	Voltage Rating	Contact Length - Post	Contact Length - Post	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Insulation Color	Number of Positions Loaded	Mated Stacking Heights	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish - Mating	Mounting Type	Contact Material	Termination	Insulation Material	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions [custom]	Number of Positions [custom]
Harwin Inc. M80-5T20405M3-04-332-00-000	29.5 Áin	0.75 Ám	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Gold	Header	Circular	Board to Cable/Wire	800 VAC	0.177 in	4.5 mm	Shrouded - 4 Wall	29.5 µin	0.75 µm	2.2 A 20 A	-55 °C	125 °C	8	Male Pin Power	Black	All	7.3 mm	UL94 V-0	5.6 mm	0.22 in	Gold	Through Hole	Copper Alloy Phosphor Bronze	Solder	Polyphenylene Sulfide (PPS) Glass Filled
Harwin Inc. M80-5T21642M3-06-312-00-000			Keying Slot Mating Flange Mounting Flange Mounting Hardware		Header	Circular	Board to Cable/Wire		0.173 in	4.4 mm	Shrouded - 4 Wall				-55 °C	125 °C		Male Pin	Black	All	7.3 mm 9.75 mm	UL94 V-0	5.6 mm	0.22 in	Gold	Through Hole		Solder	Polyphenylene Sulfide (PPS) Glass Filled	2	0.079 in	2 mm	0.079 in	2 mm	6	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 8 (4 + 4 Power) position
