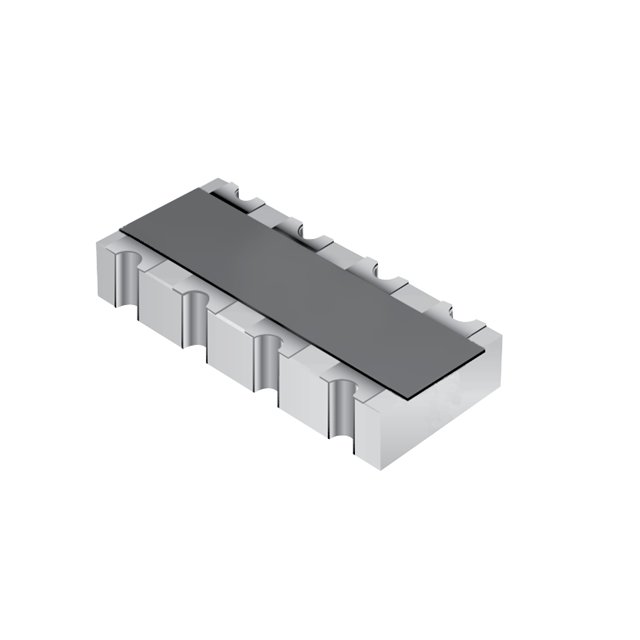

CAT16A-222J4LF

Active

Bourns Inc.

RES ARR 4 RES 2.2K OHM 1206

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CAT16A-222J4LF

Active

Bourns Inc.

RES ARR 4 RES 2.2K OHM 1206

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CAT16A-222J4LF

Circuit Type	Isolated
Grade	Automotive
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Mounting Type	Surface Mount
Number of Pins	8
Number of Resistors	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric), Concave, Long Side Terminals
Power Per Element	63 mW
Qualification	AEC-Q200
Resistance (Ohms)	2.2 kOhms
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 "
Size / Dimension [y]	0.061 in
Size / Dimension [y]	1.55 mm
Supplier Device Package	1206
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

CAT16 Series

...

Part	Qualification	Grade	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Power Per Element	Mounting Type	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistance (Ohms)	Circuit Type	Package / Case	Number of Pins	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Resistors	Supplier Device Package	Resistance (Ohms)	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance
Bourns Inc. CAT16A-222J4LF	AEC-Q200	Automotive	5 %	-55 °C	125 °C	63 mW	Surface Mount	200 ppm/°C	0.061 in	1.55 mm	3.2 mm	0.126 "	2.2 kOhms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206
Bourns Inc. CAT16-181J4LF			5 %	-55 °C	125 °C		Surface Mount	200 ppm/°C	0.061 in	1.55 mm	3.2 mm	0.126 "	180 Ohms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206
Bourns Inc. CAT16A-103J4LF	AEC-Q200	Automotive	5 %	-55 °C	125 °C	63 mW	Surface Mount	200 ppm/°C		1.5 mm	3.2 mm			Isolated	1206 (3216 Metric) Concave Long Side Terminals	8			4	1206	10k	0.126 in	0.059 "	0.026 in	0.65 mm
Bourns Inc. CAT16A-221J4LF	AEC-Q200	Automotive	5 %	-55 °C	125 °C	63 mW	Surface Mount	200 ppm/°C	0.061 in	1.55 mm	3.2 mm	0.126 "	220 Ohms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206
Bourns Inc. CAT16-103J4LF			5 %	-55 °C	125 °C		Surface Mount	200 ppm/°C	0.061 in	1.55 mm	3.2 mm	0.126 "		Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206	10k
Bourns Inc. CAT16-271J4LF			5 %	-55 °C	125 °C		Surface Mount	200 ppm/°C	0.061 in	1.55 mm	3.2 mm	0.126 "	270 Ohms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206
Bourns Inc. CAT16-47R0F4LF			1 %	-55 °C	125 °C		Surface Mount	200 ppm/°C	0.063 in	1.6 mm	3.2 mm	0.126 "	47 Ohms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206
Bourns Inc. CAT16-LV4F12LF			1 %	-55 °C	125 °C		Surface Mount	200 ppm/°C		1.6 mm	6.4 mm			Bussed	2506 Concave Long Side Terminals	16						0.252 in	0.063 in	0.028 in	0.7 mm
Bourns Inc. CAT16A-101J4LF	AEC-Q200	Automotive	5 %	-55 °C	125 °C	63 mW	Surface Mount	200 ppm/°C		1.5 mm	3.2 mm		100 Ohms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8			4	1206		0.126 in	0.059 "	0.026 in	0.65 mm
Bourns Inc. CAT16-000J2LF				-55 °C	125 °C		Surface Mount			1.6 mm	1.6 mm		0 Ohms	Isolated	0606 Concave	4	0.75 mm	0.03 in	2	0606		0.063 in	0.063 in			Jumper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.16
		10	$ 0.13
		25	$ 0.10
		50	$ 0.07
		100	$ 0.05
		250	$ 0.04
		500	$ 0.03
		1000	$ 0.02
	Digi-Reel®	1	$ 0.16
		10	$ 0.13
		25	$ 0.10
		50	$ 0.07
		100	$ 0.05
		250	$ 0.04
		500	$ 0.03
		1000	$ 0.02
	Tape & Reel (TR)	5000	$ 0.02
		10000	$ 0.02
		25000	$ 0.02
		50000	$ 0.02
		125000	$ 0.02

Description

General part information

CAT16 Series

2.2k Ohm ±5% 63mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Concave, Long Side Terminals

Documents

Technical documentation and resources
