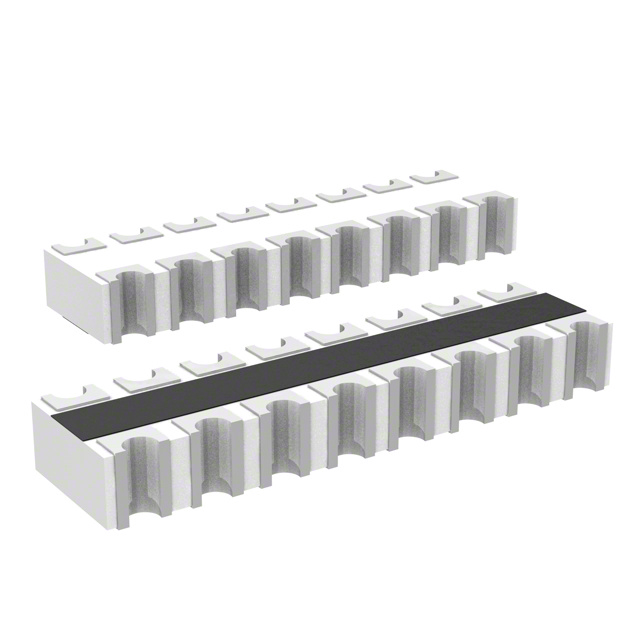

CAT16-LV4F12LF

Obsolete

Bourns Inc.

RES ARRAY 12 RES MULT OHM 2506

Deep-Dive with AI

Search across all available documentation for this part.

CAT16-LV4F12LF

Obsolete

Bourns Inc.

RES ARRAY 12 RES MULT OHM 2506

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CAT16-LV4F12LF

Circuit Type	Bussed
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Mounting Type	Surface Mount
Number of Pins	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2506, Concave, Long Side Terminals
Size / Dimension [x]	0.252 in
Size / Dimension [x]	6.4 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Temperature Coefficient	200 ppm/°C
Tolerance	1 %

CAT16 Series

...

Part	Qualification	Grade	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Power Per Element	Mounting Type	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistance (Ohms)	Circuit Type	Package / Case	Number of Pins	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Resistors	Supplier Device Package	Resistance (Ohms)	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance
Bourns Inc. CAT16A-222J4LF	AEC-Q200	Automotive	5 %	-55 °C	125 °C	63 mW	Surface Mount	200 ppm/°C	0.061 in	1.55 mm	3.2 mm	0.126 "	2.2 kOhms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206
Bourns Inc. CAT16-181J4LF			5 %	-55 °C	125 °C		Surface Mount	200 ppm/°C	0.061 in	1.55 mm	3.2 mm	0.126 "	180 Ohms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206
Bourns Inc. CAT16A-103J4LF	AEC-Q200	Automotive	5 %	-55 °C	125 °C	63 mW	Surface Mount	200 ppm/°C		1.5 mm	3.2 mm			Isolated	1206 (3216 Metric) Concave Long Side Terminals	8			4	1206	10k	0.126 in	0.059 "	0.026 in	0.65 mm
Bourns Inc. CAT16A-221J4LF	AEC-Q200	Automotive	5 %	-55 °C	125 °C	63 mW	Surface Mount	200 ppm/°C	0.061 in	1.55 mm	3.2 mm	0.126 "	220 Ohms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206
Bourns Inc. CAT16-103J4LF			5 %	-55 °C	125 °C		Surface Mount	200 ppm/°C	0.061 in	1.55 mm	3.2 mm	0.126 "		Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206	10k
Bourns Inc. CAT16-271J4LF			5 %	-55 °C	125 °C		Surface Mount	200 ppm/°C	0.061 in	1.55 mm	3.2 mm	0.126 "	270 Ohms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206
Bourns Inc. CAT16-47R0F4LF			1 %	-55 °C	125 °C		Surface Mount	200 ppm/°C	0.063 in	1.6 mm	3.2 mm	0.126 "	47 Ohms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8	0.6 mm	0.024 in	4	1206
Bourns Inc. CAT16-LV4F12LF			1 %	-55 °C	125 °C		Surface Mount	200 ppm/°C		1.6 mm	6.4 mm			Bussed	2506 Concave Long Side Terminals	16						0.252 in	0.063 in	0.028 in	0.7 mm
Bourns Inc. CAT16A-101J4LF	AEC-Q200	Automotive	5 %	-55 °C	125 °C	63 mW	Surface Mount	200 ppm/°C		1.5 mm	3.2 mm		100 Ohms	Isolated	1206 (3216 Metric) Concave Long Side Terminals	8			4	1206		0.126 in	0.059 "	0.026 in	0.65 mm
Bourns Inc. CAT16-000J2LF				-55 °C	125 °C		Surface Mount			1.6 mm	1.6 mm		0 Ohms	Isolated	0606 Concave	4	0.75 mm	0.03 in	2	0606		0.063 in	0.063 in			Jumper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CAT16 Series

140, 165 Ohm ±1% 62.5mW Power Per Element Bussed 12 Resistor Network/Array ±200ppm/°C 2506, Concave, Long Side Terminals

Documents

Technical documentation and resources

No documents available
