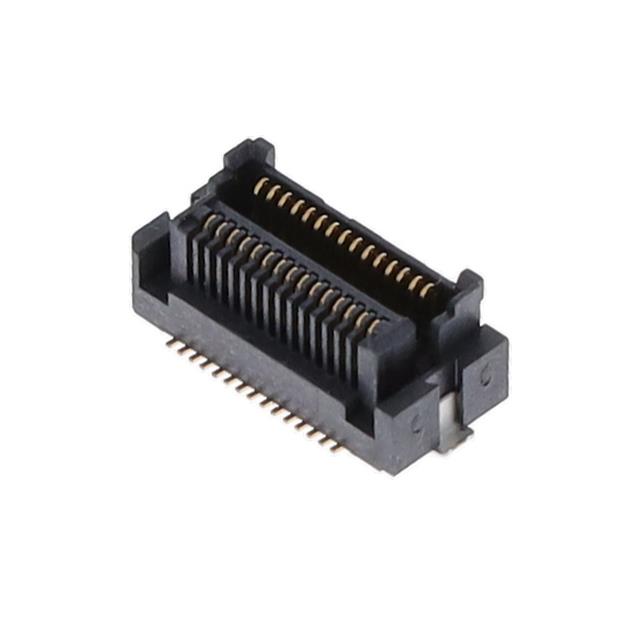

10106813-033112LF

Active

Amphenol ICC (FCI)

CONN SELF-MATE 30POS SMD GOLD

Deep-Dive with AI

Documentsgs-12-577 Other Related Documents Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10106813-033112LF

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Solder Retention, Board Guide
Height Above Board [z]	4.55 mm
Height Above Board [z]	0.179 in
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

10106813 Series

Part	Number of Positions	Features	Connector Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish	Mounting Type	Number of Rows	Height Above Board [z]	Height Above Board [z]
Amphenol ICC (FCI) 10106813-174112LF	70	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	5.05 mm	0.199 in	15 µin	0.38 µm	0.5 mm	0.02 in	5.5 mm 6.5 mm 7 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-034112LF	30	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	5.05 mm	0.199 in	15 µin	0.38 µm	0.5 mm	0.02 in	5.5 mm 6.5 mm 7 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-021112LF	20	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	3.55 mm	0.14 in	15 µin	0.38 µm	0.5 mm	0.02 in	4 mm 4.5 mm 5.5 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-033112LF	30	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic			15 µin	0.38 µm	0.5 mm	0.02 in		Gold or Gold GXT™	Surface Mount	2	4.55 mm	0.179 in
Amphenol ICC (FCI) 10106813-071112LF	70	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	3.55 mm	0.14 in	15 µin	0.38 µm	0.5 mm	0.02 in	4 mm 4.5 mm 5.5 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-053112LF	50	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic			15 µin	0.38 µm	0.5 mm	0.02 in		Gold or Gold GXT™	Surface Mount	2	4.55 mm	0.179 in
Amphenol ICC (FCI) 10106813-074112LF	70	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	5.05 mm	0.199 in	15 µin	0.38 µm	0.5 mm	0.02 in	5.5 mm 6.5 mm 7 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-041112LF	40	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	3.55 mm	0.14 in	15 µin	0.38 µm	0.5 mm	0.02 in	4 mm 4.5 mm 5.5 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-023112LF	20	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic			15 µin	0.38 µm	0.5 mm	0.02 in		Gold or Gold GXT™	Surface Mount	2	4.55 mm	0.179 in
Amphenol ICC (FCI) 10106813-051112LF	50	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	3.55 mm	0.14 in	15 µin	0.38 µm	0.5 mm	0.02 in	4 mm 4.5 mm 5.5 mm	Gold or Gold GXT™	Surface Mount	2
