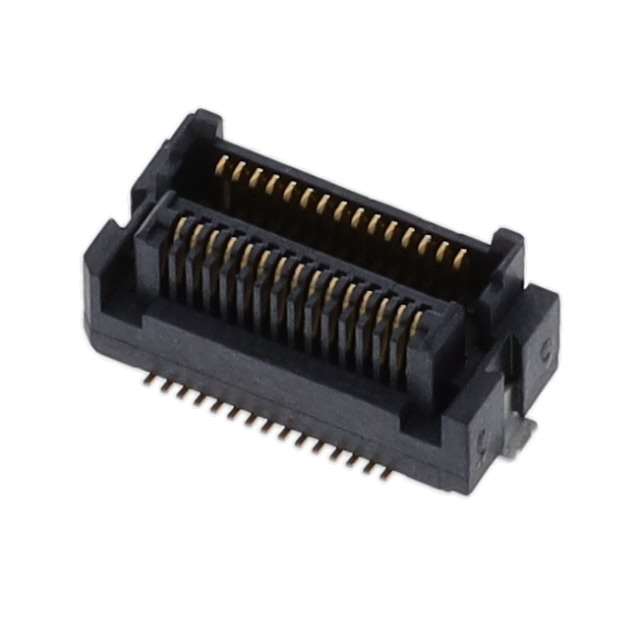

10106813-034112LF

Active

Amphenol ICC (FCI)

CONN SELF-MATE 30POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

Documentsgs-12-577 Other Related Documents Datasheet

10106813-034112LF

Active

Amphenol ICC (FCI)

CONN SELF-MATE 30POS SMD GOLD

Deep-Dive with AI

Documentsgs-12-577 Other Related Documents Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10106813-034112LF

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Solder Retention, Board Guide
Height Above Board	5.05 mm
Height Above Board	0.199 in
Mated Stacking Heights	7 mm, 6.5 mm, 5.5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

10106813 Series

Part	Number of Positions	Features	Connector Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish	Mounting Type	Number of Rows	Height Above Board [z]	Height Above Board [z]
Amphenol ICC (FCI) 10106813-174112LF	70	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	5.05 mm	0.199 in	15 µin	0.38 µm	0.5 mm	0.02 in	5.5 mm 6.5 mm 7 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-034112LF	30	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	5.05 mm	0.199 in	15 µin	0.38 µm	0.5 mm	0.02 in	5.5 mm 6.5 mm 7 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-021112LF	20	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	3.55 mm	0.14 in	15 µin	0.38 µm	0.5 mm	0.02 in	4 mm 4.5 mm 5.5 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-033112LF	30	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic			15 µin	0.38 µm	0.5 mm	0.02 in		Gold or Gold GXT™	Surface Mount	2	4.55 mm	0.179 in
Amphenol ICC (FCI) 10106813-071112LF	70	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	3.55 mm	0.14 in	15 µin	0.38 µm	0.5 mm	0.02 in	4 mm 4.5 mm 5.5 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-053112LF	50	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic			15 µin	0.38 µm	0.5 mm	0.02 in		Gold or Gold GXT™	Surface Mount	2	4.55 mm	0.179 in
Amphenol ICC (FCI) 10106813-074112LF	70	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	5.05 mm	0.199 in	15 µin	0.38 µm	0.5 mm	0.02 in	5.5 mm 6.5 mm 7 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-041112LF	40	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	3.55 mm	0.14 in	15 µin	0.38 µm	0.5 mm	0.02 in	4 mm 4.5 mm 5.5 mm	Gold or Gold GXT™	Surface Mount	2
Amphenol ICC (FCI) 10106813-023112LF	20	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic			15 µin	0.38 µm	0.5 mm	0.02 in		Gold or Gold GXT™	Surface Mount	2	4.55 mm	0.179 in
Amphenol ICC (FCI) 10106813-051112LF	50	Board Guide Solder Retention	Self Mating Non-Gendered Hermaphroditic	3.55 mm	0.14 in	15 µin	0.38 µm	0.5 mm	0.02 in	4 mm 4.5 mm 5.5 mm	Gold or Gold GXT™	Surface Mount	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.14
		10	$ 3.17
		25	$ 2.85
		50	$ 2.64
		100	$ 2.45
		250	$ 2.22
	Digi-Reel®	1	$ 4.14
		10	$ 3.17
		25	$ 2.85
		50	$ 2.64
		100	$ 2.45
		250	$ 2.22
	Tape & Reel (TR)	800	$ 1.97
		1600	$ 1.84
		2400	$ 1.77
		4000	$ 1.69
		5600	$ 1.67

Description

General part information

10106813 Series

30 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold or Gold, GXT™
