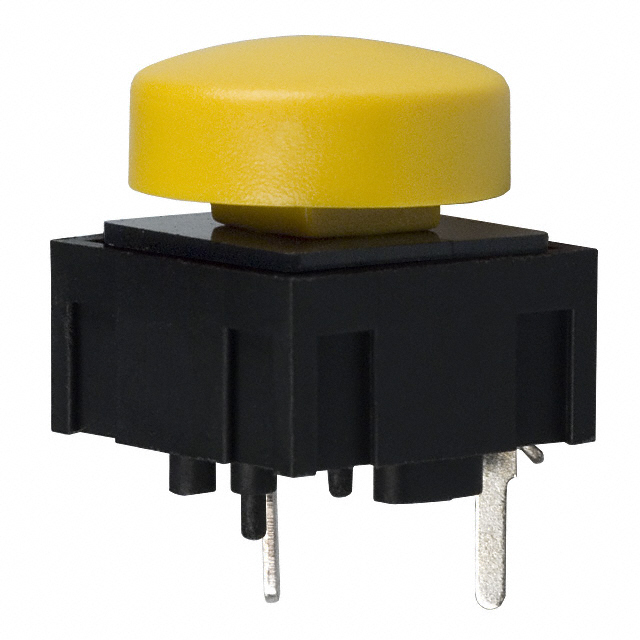

320.02E11.08YEL

Active

E-Switch

SWITCH TACT SPST-NO 0.025A 50V

Deep-Dive with AI

Search across all available documentation for this part.

320.02E11.08YEL

Active

E-Switch

SWITCH TACT SPST-NO 0.025A 50V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	320.02E11.08YEL

Actuator Height off PCB, Vertical	14.4 mm
Actuator Material	Polycarbonate (PC)
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.025 A, 50 VDC
Features	Yellow Cap
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	135 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	12.4 mm
Outline [y]	12.4 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.6 mm
Termination Style	PC Pin

320.094 Series

Part	Circuit	Termination Style	Actuator Orientation	Switch Function	Actuator Type	Actuator Height off PCB, Vertical	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Outline [x]	Outline [y]	Illumination	Mounting Type	Mechanical Life	Switch Travel [custom]	Features	Actuator Material	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Shape	Switch Type	For Use With/Related Products	Size [z]	Size [diameter]	Color
E-Switch 320.02E11.08ORG	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button	14.4 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Orange Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320E11BLU	SPST-NO	PC Pin	Top Actuated	Off-Mom	Square Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Blue Cap	Polycarbonate (PC)	0.025 A 50 VDC	9.95 mm
E-Switch 320E11BLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Square Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Black Cap	Polycarbonate (PC)	0.025 A 50 VDC	9.95 mm
E-Switch 320.02E114JBLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Square Button	13.5 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Black Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.09E11BLU	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Blue Cap	Polycarbonate (PC)	0.025 A 50 VDC	15.7 mm
E-Switch 320.02E11BLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Plunger for Cap		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Tactile Feedback	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.02E11TACBLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Rectangular Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Black Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.09GRY												Non-Illuminated	Snap Fit							Round Convex	Tactile	320 Series	5 mm	15.88 mm	Gray
E-Switch 320.02E11.08BLU	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button	14.4 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Blue Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.02E11.08YEL	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button	14.4 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Yellow Cap	Polycarbonate (PC)	0.025 A 50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.74
		10	$ 1.56
		25	$ 1.47
		50	$ 1.41
		100	$ 1.34
		250	$ 1.28
		500	$ 1.25

Description

General part information

320.094 Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

No documents available
