320.09GRY

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.025A/50VDC; THT; NONE; 1.32N

Deep-Dive with AI

Search across all available documentation for this part.

320.09GRY

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.025A/50VDC; THT; NONE; 1.32N

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	320.09GRY

Color	Gray
For Use With/Related Products	320 Series
Illumination	Non-Illuminated
Mounting Type	Snap Fit
Shape	Round, Convex
Size [diameter]	15.88 mm
Size [z]	5 mm
Switch Type	Tactile

320.094 Series

Part	Circuit	Termination Style	Actuator Orientation	Switch Function	Actuator Type	Actuator Height off PCB, Vertical	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Outline [x]	Outline [y]	Illumination	Mounting Type	Mechanical Life	Switch Travel [custom]	Features	Actuator Material	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Shape	Switch Type	For Use With/Related Products	Size [z]	Size [diameter]	Color
E-Switch 320.02E11.08ORG	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button	14.4 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Orange Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320E11BLU	SPST-NO	PC Pin	Top Actuated	Off-Mom	Square Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Blue Cap	Polycarbonate (PC)	0.025 A 50 VDC	9.95 mm
E-Switch 320E11BLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Square Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Black Cap	Polycarbonate (PC)	0.025 A 50 VDC	9.95 mm
E-Switch 320.02E114JBLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Square Button	13.5 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Black Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.09E11BLU	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Blue Cap	Polycarbonate (PC)	0.025 A 50 VDC	15.7 mm
E-Switch 320.02E11BLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Plunger for Cap		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Tactile Feedback	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.02E11TACBLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Rectangular Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Black Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.09GRY												Non-Illuminated	Snap Fit							Round Convex	Tactile	320 Series	5 mm	15.88 mm	Gray
E-Switch 320.02E11.08BLU	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button	14.4 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Blue Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.02E11.08YEL	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button	14.4 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Yellow Cap	Polycarbonate (PC)	0.025 A 50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8000	$ 0.90

Description

General part information

320.094 Series

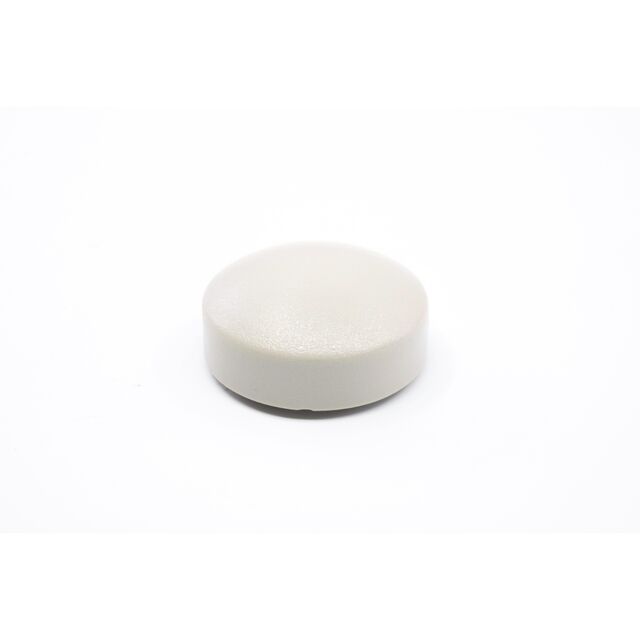

Round, Convex (Domed) Tactile Switch Cap Gray Snap Fit

Documents

Technical documentation and resources

No documents available
