BQ21062YFPR
Active500-MA 1-CELL LINEAR CHARGER WITH 10-NA SHIP MODE, POWER-PATH, REGULATED SYSTEM VOLTAGE AND LDO 20-DSBGA -40 TO 85
Deep-Dive with AI
Search across all available documentation for this part.
BQ21062YFPR
Active500-MA 1-CELL LINEAR CHARGER WITH 10-NA SHIP MODE, POWER-PATH, REGULATED SYSTEM VOLTAGE AND LDO 20-DSBGA -40 TO 85
Technical Specifications
Parameters and characteristics for this part
| Specification | BQ21062YFPR |
|---|---|
| Battery Chemistry | Lithium Ion/Polymer |
| Battery Pack Voltage [Max] | 4.6 V |
| Battery Pack Voltage [Min] | 2.4 V |
| Charge Current - Max [Max] | 500 mA |
| Current - Charging | Constant - Programmable |
| Fault Protection | Over Current, Over Voltage, Short Circuit, Over Temperature |
| Interface | I2C |
| Mounting Type | Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Programmable Features | Voltage, Current |

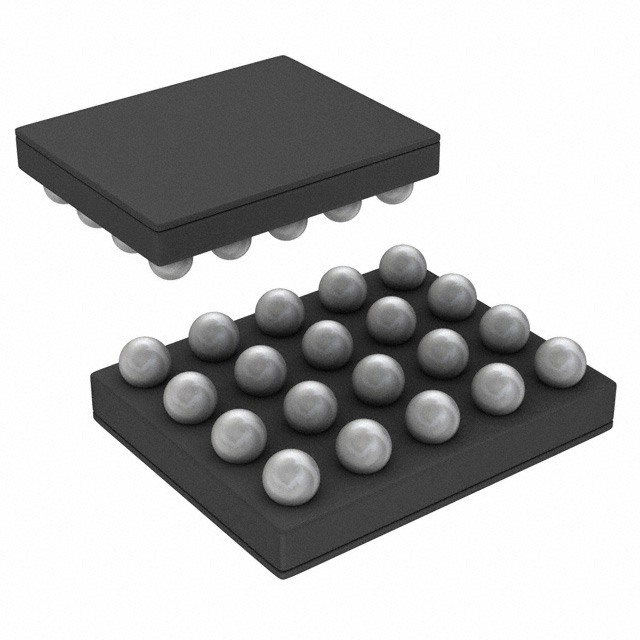

| Supplier Device Package | 20-DSBGA |
| Voltage - Supply (Max) [Max] | 5.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | 1 | $ 2.89 | |
| 10 | $ 2.16 | |||
| 25 | $ 1.98 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.68 | |||
| 500 | $ 1.62 | |||
| 1000 | $ 1.57 | |||
| 3000 | $ 1.00 | |||
| Digikey | Cut Tape (CT) | 1 | $ 2.97 | |
| 10 | $ 2.67 | |||
| 25 | $ 2.52 | |||
| 100 | $ 2.19 | |||
| 250 | $ 2.07 | |||
| 500 | $ 1.86 | |||
| 1000 | $ 1.57 | |||
| Digi-Reel® | 1 | $ 2.97 | ||
| 10 | $ 2.67 | |||
| 25 | $ 2.52 | |||
| 100 | $ 2.19 | |||
| 250 | $ 2.07 | |||
| 500 | $ 1.86 | |||
| 1000 | $ 1.57 | |||
| Tape & Reel (TR) | 3000 | $ 1.00 | ||
| Mouser Electronics | N/A | 1 | $ 2.65 | |
| 10 | $ 1.98 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.68 | |||
| 500 | $ 1.62 | |||
| 1000 | $ 1.45 | |||
| 3000 | $ 1.20 | |||
| 6000 | $ 1.00 | |||
| Texas Instruments | LARGE T&R | 1 | $ 1.79 | |
| 100 | $ 1.48 | |||
| 250 | $ 1.06 | |||
| 1000 | $ 0.80 | |||
BQ21062 Series
500-mA 1-cell linear charger with 10-nA ship mode, power-path, regulated system voltage and LDO
| Part | Battery Pack Voltage [Max] | Battery Pack Voltage [Min] | Number of Cells | Current - Charging | Charge Current - Max [Max] | Fault Protection | Voltage - Supply (Max) [Max] | Battery Chemistry | Supplier Device Package | Mounting Type | Interface | Programmable Features | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ21062YFPR | 4.6 V | 2.4 V | 1 | Constant - Programmable | 500 mA | Over Current, Over Temperature, Over Voltage, Short Circuit | 5.25 V | Lithium Ion/Polymer | 20-DSBGA | Surface Mount | I2C | Current, Voltage | 85 °C | -40 °C |
Description
General part information
BQ21062 Series
The BQ21062 is a highly integrated battery charge management IC that integrates the most common functions for wearable, portable and small medical devices, namely a charger, a regulated output voltage rail for system power, a Load Switch/LDO, and push-button controller.
The BQ21062 IC integrates a linear charger with Power Path that enables quick and accurate charging for small batteries while providing a regulated voltage to the system. The regulated system voltage (PMID) output may be configured through I 2C based on the recommended operating condition of downstream IC’s and system loads for optimal system operation.
The device supports charge current up to 500 mA and supports termination current down to 0.5 mA for maximum charge. The battery is charged using a standard Li-Ion charge profile with three phases: pre-charge, constant current and constant voltage regulation.
