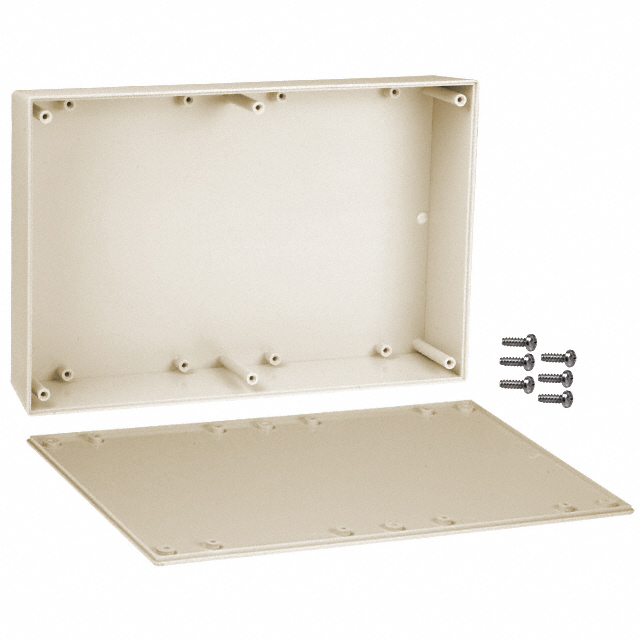

Specification	093,AL

Area (L x W)	60.2 in²
Color	Almond
Container Type	Box
Design	Cover Included, Hand Held
Features	PCB Supports
Height	1.9 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	9.5 in
Size / Dimension Width	6.34 in
Thickness	0.1 in
Weight	0.64 lb

093 Series

Part	Weight	Design	Area (L x W)	Thickness	Size / Dimension Length	Size / Dimension Width	Features	Material Flammability Rating	Ratings	Height	Material	Color	Container Type
Serpac 093,GY	0.64 lb	Cover Included Hand Held	60.2 in²	0.1 in	9.5 in	6.34 in	PCB Supports	UL94 HB	IP40 NEMA 1	1.9 in	ABS Plastic	Gray	Box
Serpac 093,BK	0.64 lb	Cover Included Hand Held	60.2 in²	0.1 in	9.5 in	6.34 in	PCB Supports	UL94 HB	IP40 NEMA 1	1.9 in	ABS Plastic	Black	Box
Serpac 093,AL	0.64 lb	Cover Included Hand Held	60.2 in²	0.1 in	9.5 in	6.34 in	PCB Supports	UL94 HB	IP40 NEMA 1	1.9 in	ABS Plastic	Almond	Box

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
