093,GY
ActiveSerpac
BOX ABS GRAY 9.5"L X 6.34"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
093,GY
ActiveSerpac
BOX ABS GRAY 9.5"L X 6.34"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 093,GY |
|---|---|
| Area (L x W) | 60.2 in² |
| Area (L x W) | 388 cm² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included, Hand Held |
| Features | PCB Supports |
| Height [z] | 48.26 mm |
| Height [z] | 1.9 in |
| Material | Plastic, ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP40, NEMA 1 |
| Size / Dimension | 161.04 mm, 241.3 mm |
| Size / Dimension [x] | 9.5 " |
| Size / Dimension [y] | 6.34 " |
| Thickness | 2.54 mm |
| Thickness | 0.1 in |
| Weight | 0.64 lb |
| Weight | 290.3 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.45 | |
| 10 | $ 20.47 | |||
| 100 | $ 14.14 | |||
| 1000 | $ 9.68 | |||
Description
General part information
093,GY

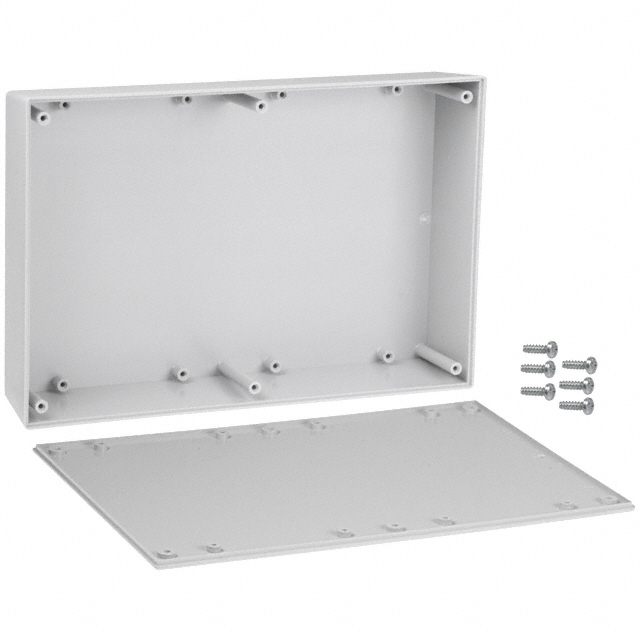

Box Plastic, ABS Gray Hand Held, Cover Included 9.500" L x 6.340" W (241.30mm x 161.04mm) X 1.900" (48.26mm)
Documents
Technical documentation and resources
