Q-2Y0180008.75M

Active

Amphenol Custom Cable

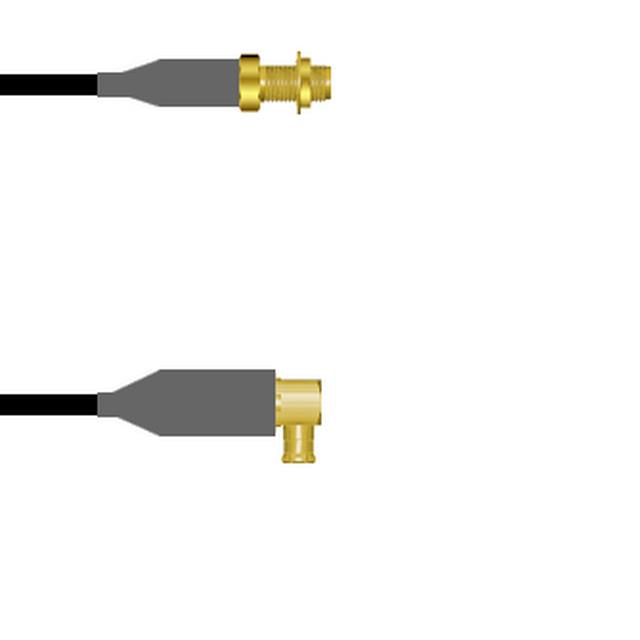

CBL ASSY SMA-MCX JACK-PLG 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2Y0180008.75M

Active

Amphenol Custom Cable

CBL ASSY SMA-MCX JACK-PLG 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2Y0180008.75M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to MCX

Q-2Y0180 Series

Part	1st Connector Mounting Feature	Color	Connector Impedance	Overall Impedance	Style	2nd Connector Mounting Type	1st Connector	2nd Connector	Cable Impedance	Cable Type	2nd Contact Gender	Features	1st Contact Gender	Length	Length	Length	1st Connector Mounting Type	Frequency - Max [Max]	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2Y0180008003M	Bulkhead - Front Side Nut	Black	50 Ohms	50 Ohms	SMA to MCX	Free Hanging (In-Line)	SMA Jack	MCX Plug Right Angle	50 Ohms	RG-58	Male	Shielded	Female	3 m	118.1 in	9.8 '	Panel Mount	1 GHz
Amphenol Custom Cable Q-2Y0180008.75M	Bulkhead - Front Side Nut	Black	50 Ohms	50 Ohms	SMA to MCX	Free Hanging (In-Line)	SMA Jack	MCX Plug Right Angle	50 Ohms	RG-58	Male	Shielded	Female	750 mm	29.53 "		Panel Mount	1 GHz
Amphenol Custom Cable Q-2Y0180008108I	Bulkhead - Front Side Nut	Black	50 Ohms	50 Ohms	SMA to MCX	Free Hanging (In-Line)	SMA Jack	MCX Plug Right Angle	50 Ohms	RG-58	Male	Shielded	Female	2.7 m	108 in	9 ft	Panel Mount	1 GHz
Amphenol Custom Cable Q-2Y0180008.25M	Bulkhead - Front Side Nut	Black	50 Ohms	50 Ohms	SMA to MCX	Free Hanging (In-Line)	SMA Jack	MCX Plug Right Angle	50 Ohms	RG-58	Male	Shielded	Female				Panel Mount	1 GHz	9.843 "	250 mm
Amphenol Custom Cable Q-2Y0180008024I	Bulkhead - Front Side Nut	Black	50 Ohms	50 Ohms	SMA to MCX	Free Hanging (In-Line)	SMA Jack	MCX Plug Right Angle	50 Ohms	RG-58	Male	Shielded	Female	609.6 mm	24 "		Panel Mount	1 GHz
Amphenol Custom Cable Q-2Y0180008018I	Bulkhead - Front Side Nut	Black	50 Ohms	50 Ohms	SMA to MCX	Free Hanging (In-Line)	SMA Jack	MCX Plug Right Angle	50 Ohms	RG-58	Male	Shielded	Female				Panel Mount	1 GHz		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2Y0180008002M	Bulkhead - Front Side Nut	Black	50 Ohms	50 Ohms	SMA to MCX	Free Hanging (In-Line)	SMA Jack	MCX Plug Right Angle	50 Ohms	RG-58	Male	Shielded	Female	2 m	78.7 in	6.6 ft	Panel Mount	1 GHz
Amphenol Custom Cable Q-2Y01800080.5M	Bulkhead - Front Side Nut	Black	50 Ohms	50 Ohms	SMA to MCX	Free Hanging (In-Line)	SMA Jack	MCX Plug Right Angle	50 Ohms	RG-58	Male	Shielded	Female	50 cm	19.69 "		Panel Mount	1 GHz
Amphenol Custom Cable Q-2Y0180008006I	Bulkhead - Front Side Nut	Black	50 Ohms	50 Ohms	SMA to MCX	Free Hanging (In-Line)	SMA Jack	MCX Plug Right Angle	50 Ohms	RG-58	Male	Shielded	Female	152.4 mm	6 in		Panel Mount	1 GHz
Amphenol Custom Cable Q-2Y0180008036I	Bulkhead - Front Side Nut	Black	50 Ohms	50 Ohms	SMA to MCX	Free Hanging (In-Line)	SMA Jack	MCX Plug Right Angle	50 Ohms	RG-58	Male	Shielded	Female	91.44 cm	36 in		Panel Mount	1 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 97.00
		25	$ 95.11
		50	$ 93.22
		100	$ 91.33
		250	$ 89.44

Description

General part information

Q-2Y0180 Series

Cable Assembly Coaxial SMA to MCX RG-58 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
