031-208-1051

Active

AMPHENOL RF

CONN ADAPT PLUG-JACK BNC 50 OHM

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN ADAPT PLUG-JACK BNC 50 OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-208-1051	031-20 Series

Adapter Series	BNC to BNC, Dual	BNC to BNC, Dual
Adapter Type	Plug to Jack	Plug to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	-	223, 141A, 55A, 142B, 58A, 55B, 142, 58, 58C, 141, 400, 142A, 58B, RG-55
Center Contact Material	Brass, Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Gold	Silver, Gold
Connector Style	-	BNC
Connector Type	-	Male Pin, Plug
Contact Termination	-	Solder
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin	BNC Plug, Male Pin
Convert To (Adapter End)	BNC Jack, Female Socket (2)	BNC Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	-	Silver
Impedance	50 Ohms	50 Ohms
Includes	-	1 Clamp, 1 Gasket, 1 Connector, 1 Contact, 1 Braid Clamp
Ingress Protection	-	Weatherproof
Insertion Loss	-	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	-	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	-	Clamp
Style	T-Shape	T-Shape
Voltage Rating	-	500 V

CONN BNC PLUG R/A 50 OHM SOLDER

Part	Number of Ports	Center Contact Material	Ingress Protection	Frequency - Max [Max]	Includes	Fastening Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Housing Color	Connector Type	Mating Cycles	Voltage Rating	Cable Group	Connector Style	Body Finish	Dielectric Material	Center Contact Plating	Impedance	Insertion Loss	Body Material	Convert From (Adapter End)	Adapter Type	Conversion Type	Style	Convert To (Adapter End)	Adapter Series
AMPHENOL RF 031-204	1	Beryllium Copper, Brass	Weatherproof	4 GHz	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket	Bayonet Lock	Clamp	-65 ░C	165 °C	Free Hanging (In-Line), Right Angle	Solder	Silver	Male Pin, Plug	500	500 V	141, 141A, 142, 142A, 142B, 223, 400, 55A, 55B, 58, 58A, 58B, 58C, RG-55	BNC	Nickel	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms	0.2 dB	Brass
AMPHENOL RF 031-208-1051		Beryllium Copper, Brass		4 GHz		Bayonet Lock		-65 ░C	165 °C	Free Hanging (In-Line)				500				Nickel	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms		Brass	BNC Plug, Male Pin	Plug to Jack	Same Series	T-Shape	BNC Jack, Female Socket (2)	BNC to BNC, Dual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

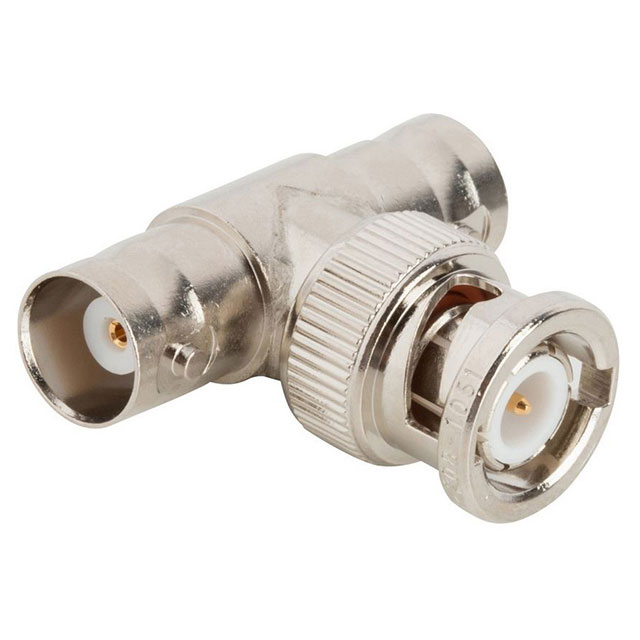

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 50 Ohms
